Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Remove the seat belt buckle. Refer to SEAT BELT BUCKLE REPLACEMENT - RIGHT FRONT in Seat Belts.
  3. Remove the passenger seat back assembly. Refer to SEAT BACK REPLACEMENT - FRONT (DRIVER SIDE)  or SEAT BACK REPLACEMENT - FRONT (PASSENGER SIDE)  .
  4. Remove the seat cushion cover (1) and cushion (2). Refer to SEAT CUSHION COVER REPLACEMENT - FRONT  .
  5. Remove the 2 screws (4) and the recliner adjuster inside covers (3).
  6. Remove the seat track handle (10).

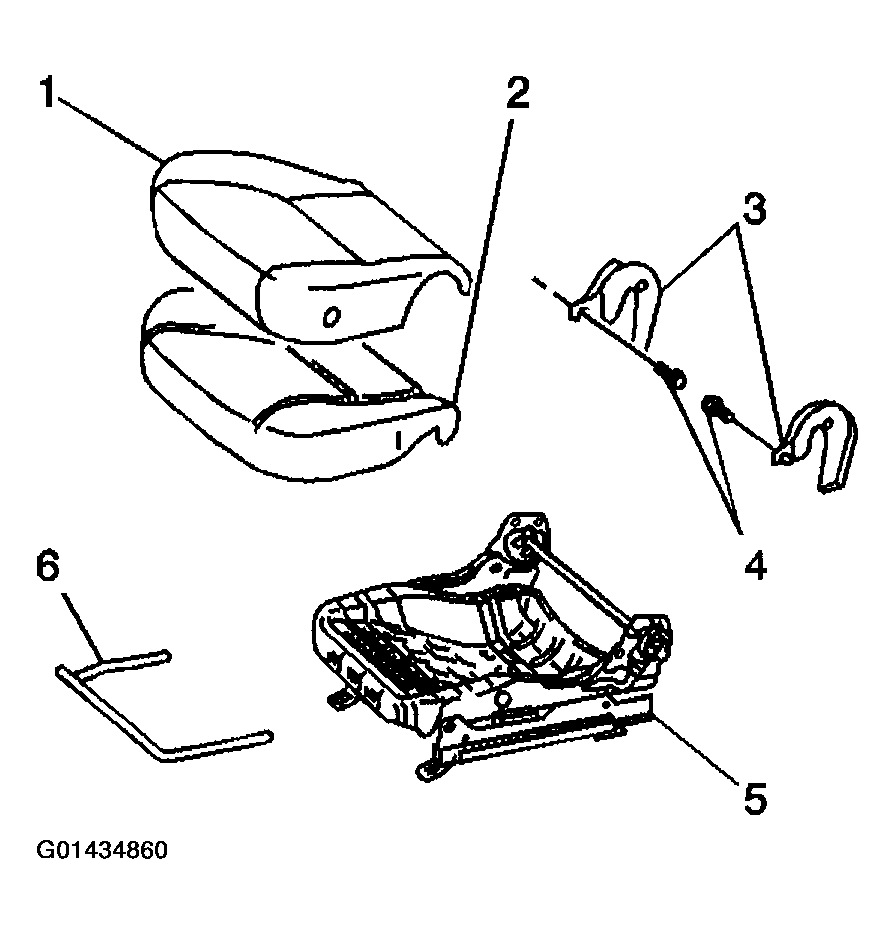

    Fig 1: Removing Seat Cushion Cover & Cushion - Front (Passenger Side)
    G01434860Courtesy of GENERAL MOTORS CORP.
