Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat track handle (10).
  2. Install the adjuster inside covers (3) and secure with the 2 screws (4).
  3. Install the seat cushion (2) and cover (1). Refer to SEAT CUSHION COVER REPLACEMENT - FRONT  .
  4. Install the passenger front seat back assembly. Refer to SEAT BACK REPLACEMENT - FRONT (DRIVER SIDE)  or SEAT BACK REPLACEMENT - FRONT (PASSENGER SIDE)  .
  5. Install the seat belt buckle. Refer to SEAT BELT BUCKLE REPLACEMENT - RIGHT FRONT in Seat Belts.
  6. Install the passenger front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET  .

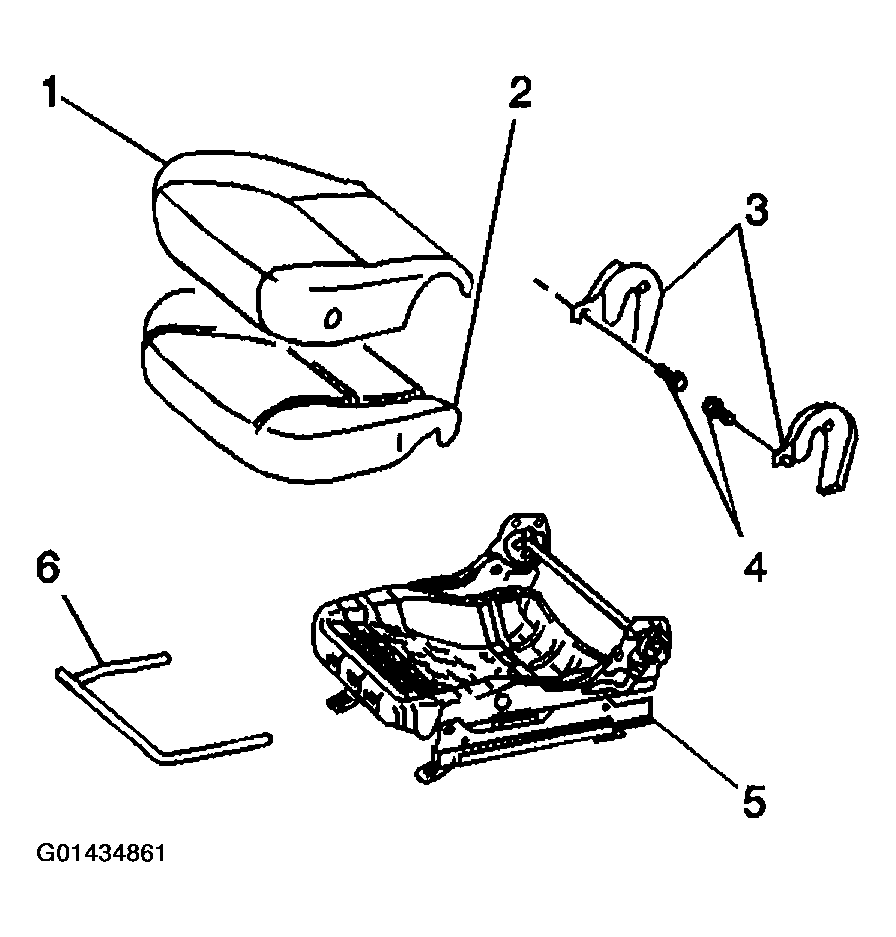

    Fig 1: Installing Seat Cushion Cover & Cushion - Front (Passenger Side)
    G01434861Courtesy of GENERAL MOTORS CORP.
