Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drivers front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Remove the seat belt buckle. Refer to SEAT BELT BUCKLE REPLACEMENT - LEFT FRONT in Seat Belts.
  3. Remove the driver seat back assembly. Refer to SEAT BACK REPLACEMENT - FRONT (DRIVER SIDE)  or SEAT BACK REPLACEMENT - FRONT (PASSENGER SIDE)  .
  4. Remove the seat cushion cover (1) and cushion (2). Refer to SEAT CUSHION COVER REPLACEMENT - FRONT  .

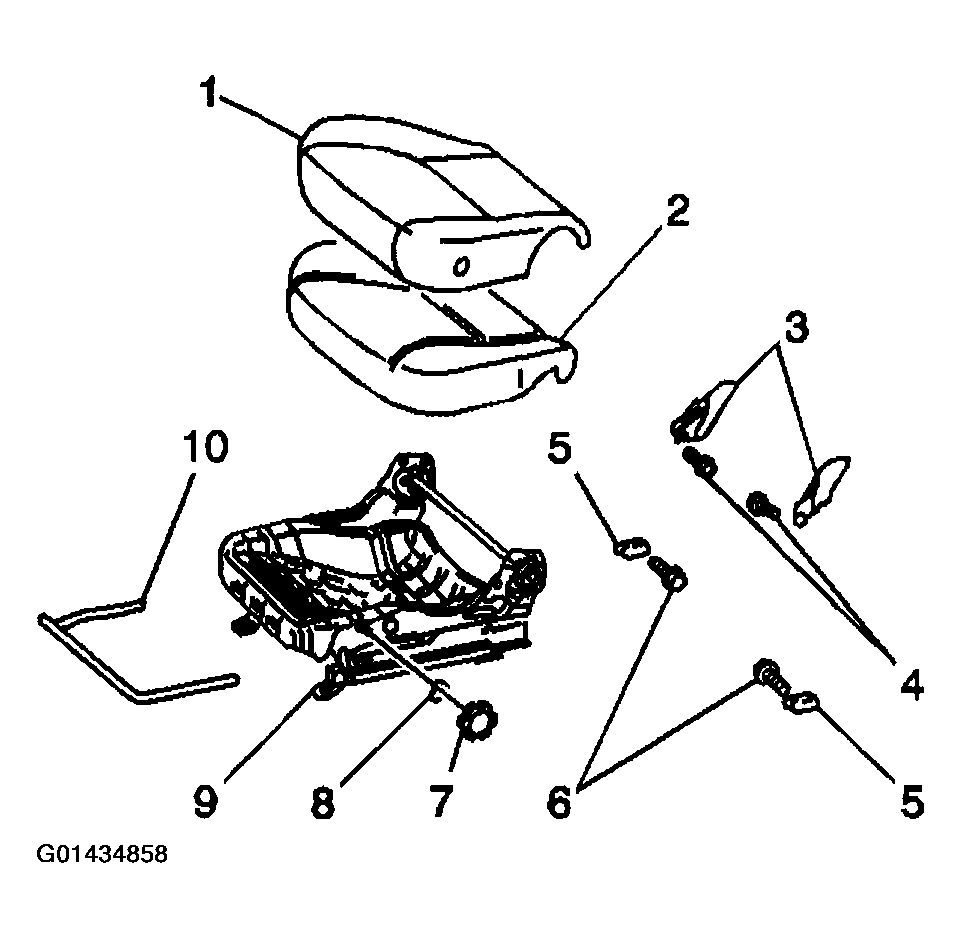

    Fig 1: Removing Seat Cushion Cover & Cushion - Front (Driver Side)
    G01434858Courtesy of GENERAL MOTORS CORP.
  5. Remove the 2 screws (4) and the recliner adjuster inside covers (3).
  6. Remove the 2 screws (6) and the lower seat cushion shields (5).
  7. Remove the seat track handle (10).
