Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat track handle (10).
  2. Install the lower seat cushion shields (5), and secure with the 2 screws (6).
  3. Install the adjuster inside covers (3) and secure with the 2 screws (4).
  4. Install the seat cushion (2) and cover (1). Refer to SEAT CUSHION COVER REPLACEMENT - FRONT  .
  5. Install the drivers front seat back assembly. Refer to SEAT BACK REPLACEMENT - FRONT (DRIVER SIDE)  or SEAT BACK REPLACEMENT - FRONT (PASSENGER SIDE)  .
  6. Install the seat belt buckle. Refer to SEAT BELT BUCKLE REPLACEMENT - LEFT FRONT in Seat Belts.
  7. Install the drivers front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET  .

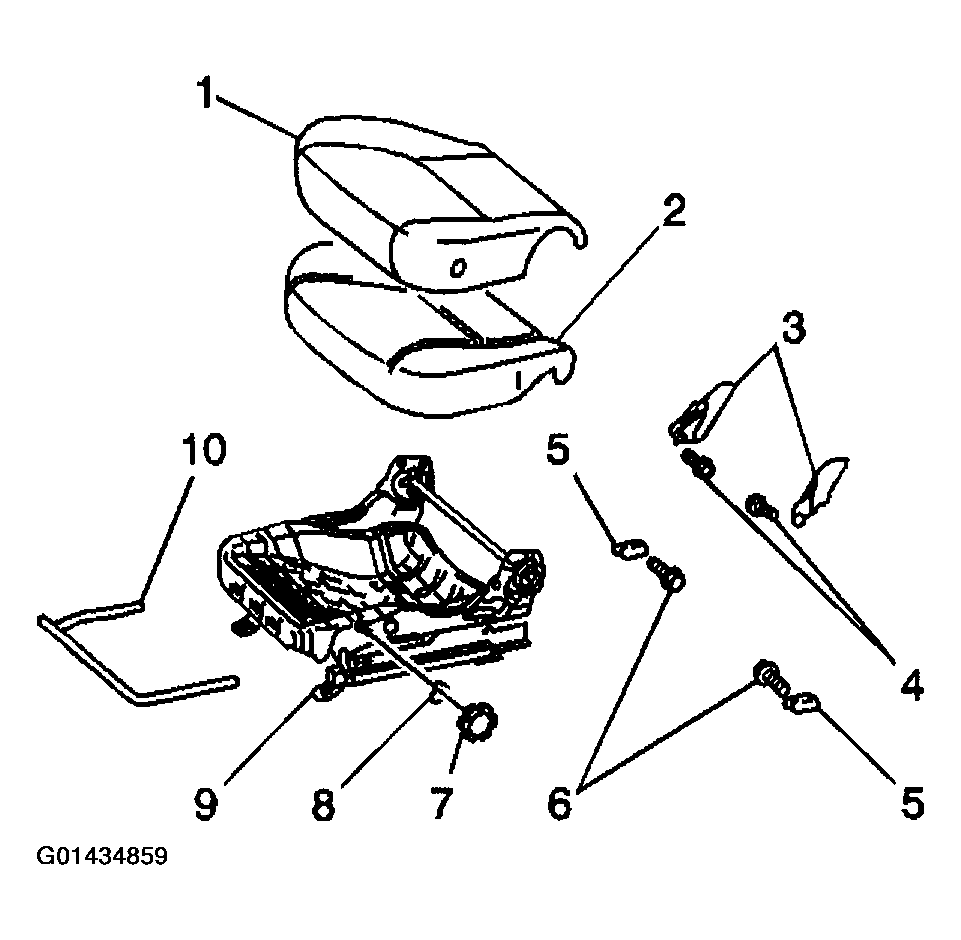

    Fig 1: Installing Seat Cushion Cover & Cushion - Front (Driver Side)
    G01434859Courtesy of GENERAL MOTORS CORP.
