Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR  .
  2. Remove the plastic retainers which secure the cushion cover (1).
    Fig 1: Removing Plastic Retainers Securing Rear Seat Cushion Cover
    G01434900Courtesy of GENERAL MOTORS CORP.
  3. Cut the hog rings around the bottom perimeter of the rear seat cushion (1).
  4. Remove the rear seat cushion cover from the cushion.

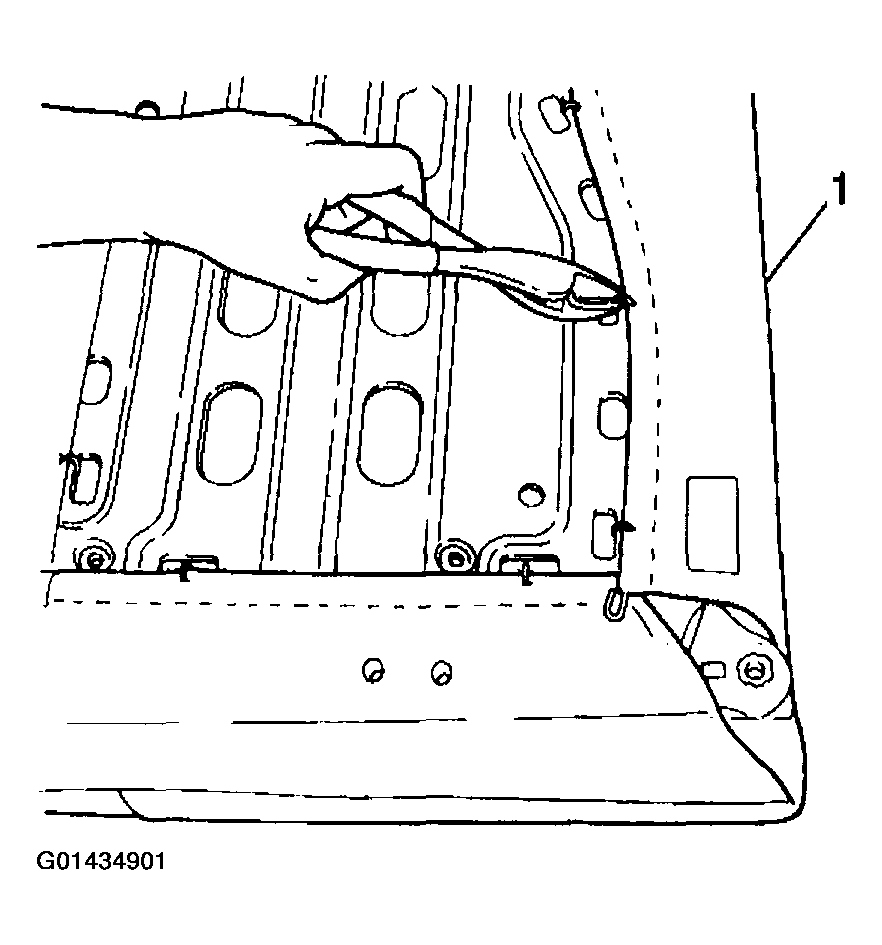

    Fig 2: Cutting Hog Rings Around Bottom Perimeter Of Rear Seat Cushion
    G01434901Courtesy of GENERAL MOTORS CORP.
