Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat cushion cover to the seat cushion.
  2. Use hog ring pliers (1) to install new hog rings. Ensure that the rear seat cushion cover is secured to the cushion (2).
  3. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR  .

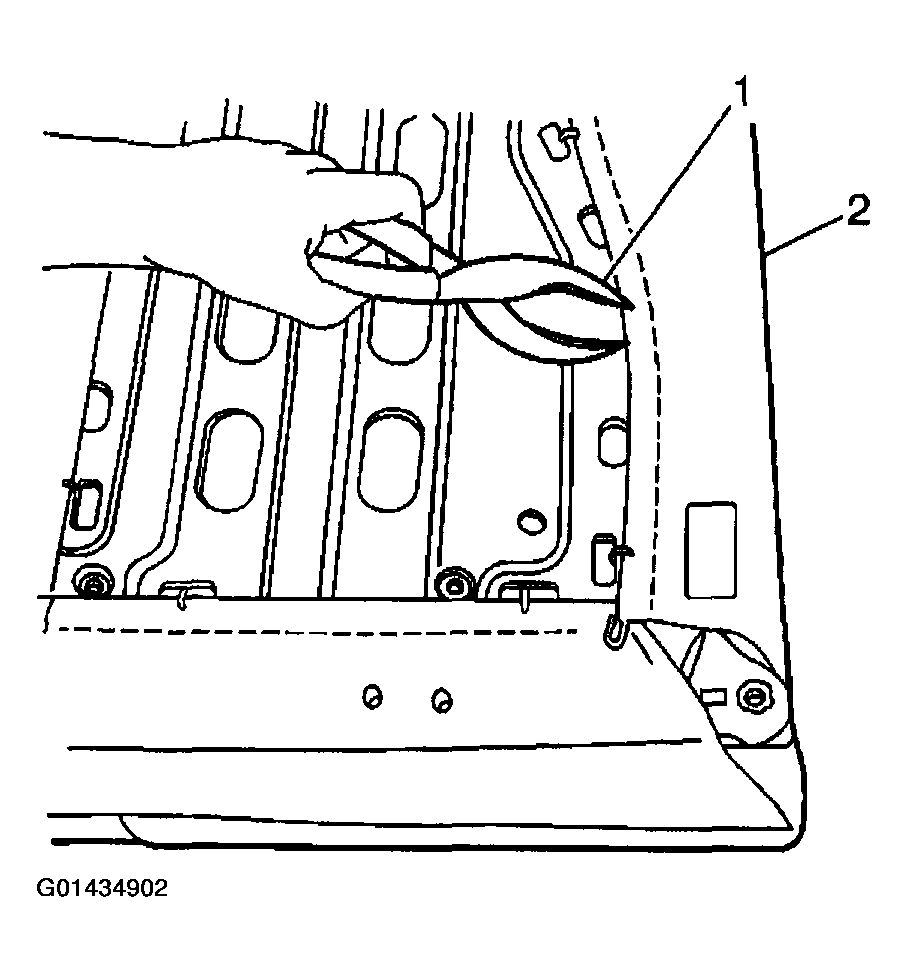

    Fig 1: Installing Hog Rings
    G01434902Courtesy of GENERAL MOTORS CORP.
