Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Remove the adjuster knob clip and adjuster knob, if equipped.
  3. Cut the hog rings (3).
  4. Remove the following components from the seat cushion:
    • The hog rings (3)
    • The seat cushion cover (1)
  5. Remove the seat cushion pad from the frame, if necessary.

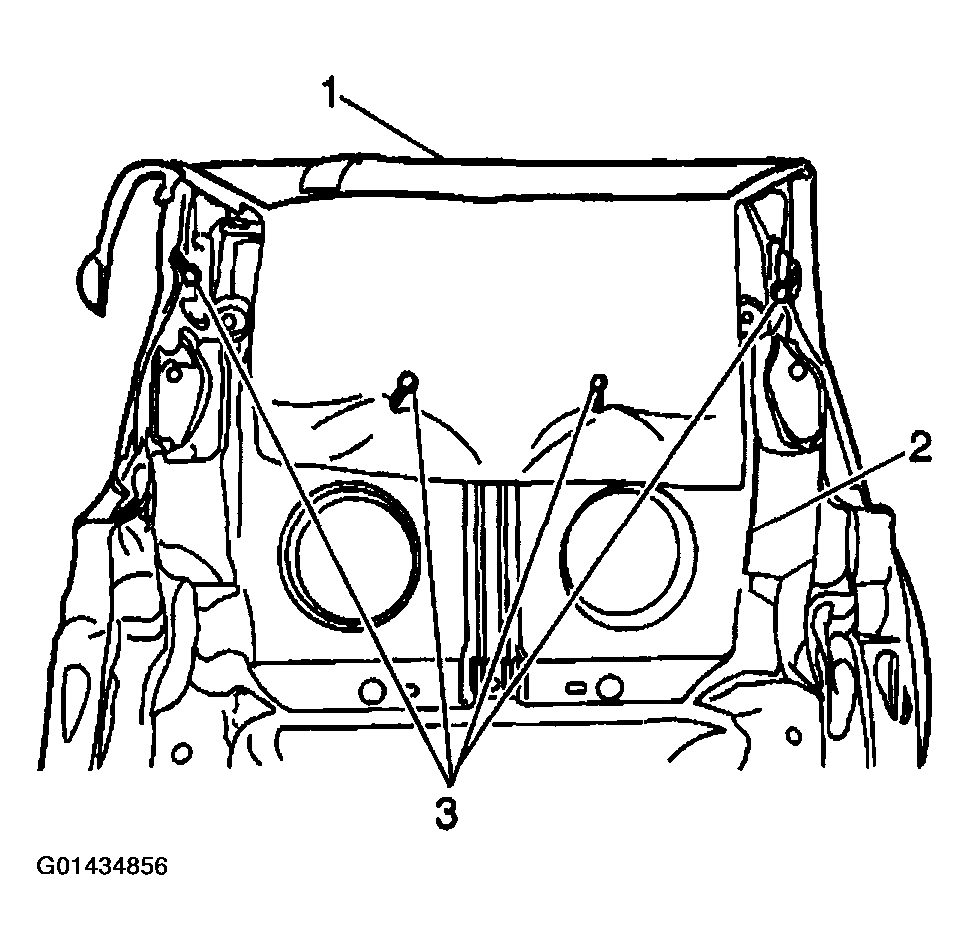

    Fig 1: Removing Seat Cushion Cover Hog Rings
    G01434856Courtesy of GENERAL MOTORS CORP.
