Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat cushion pad to the frame, if removed.
  2. Install the seat cushion cover (1) to the seat cushion. Secure the cover with new hog rings (3).
  3. Install the adjuster knob and clip, if removed.
  4. Install the front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET  .

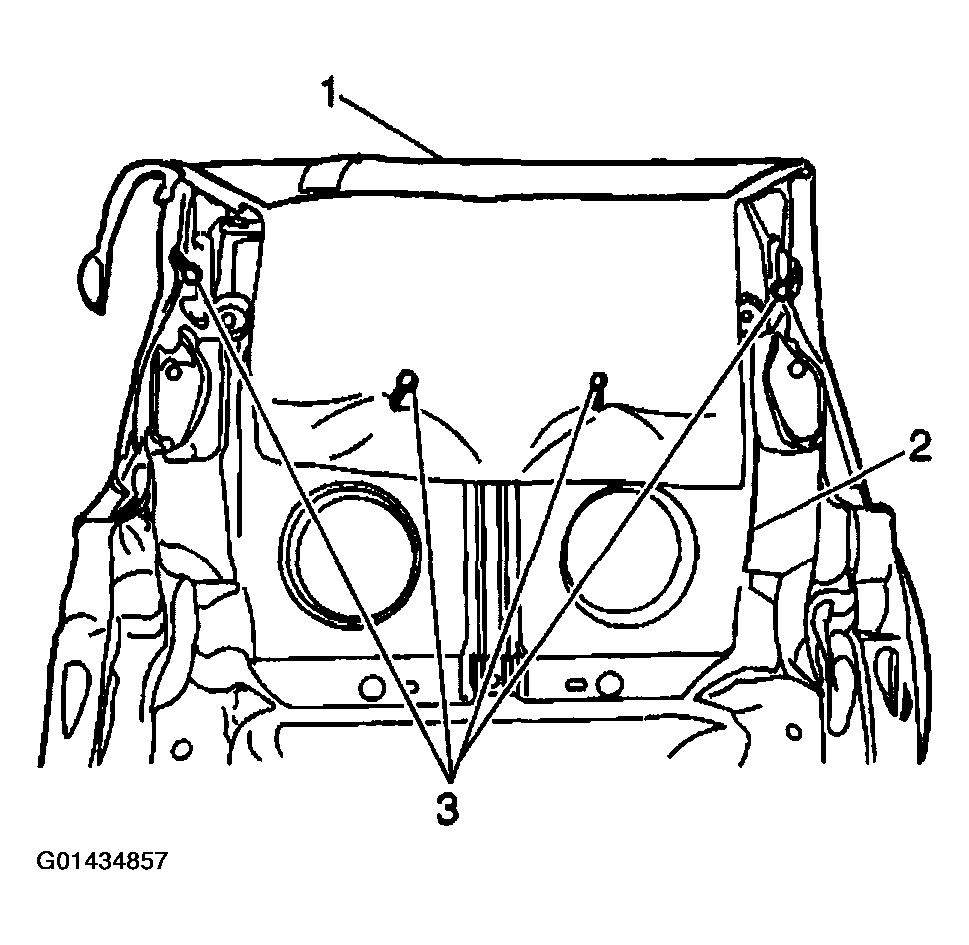

    Fig 1: Installing Seat Cushion Cover Hog Rings
    G01434857Courtesy of GENERAL MOTORS CORP.
