Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back trim panel (3). Refer to TRIM PANEL REPLACEMENT - REAR SEAT BACK (LEFT)  or TRIM PANEL REPLACEMENT - REAR SEAT BACK (RIGHT)  .
  2. Remove rear seat latch knob (11) and retainer (10).
  3. Remove the rear seat back cover (6). Refer to SEAT BACK COVER AND PAD - REAR SPLIT FOLDING  .
  4. Remove the 2 bolts (7) from the seat back latch (8).
  5. Remove the seat back latch (8) and rod (9) from the rear seat.

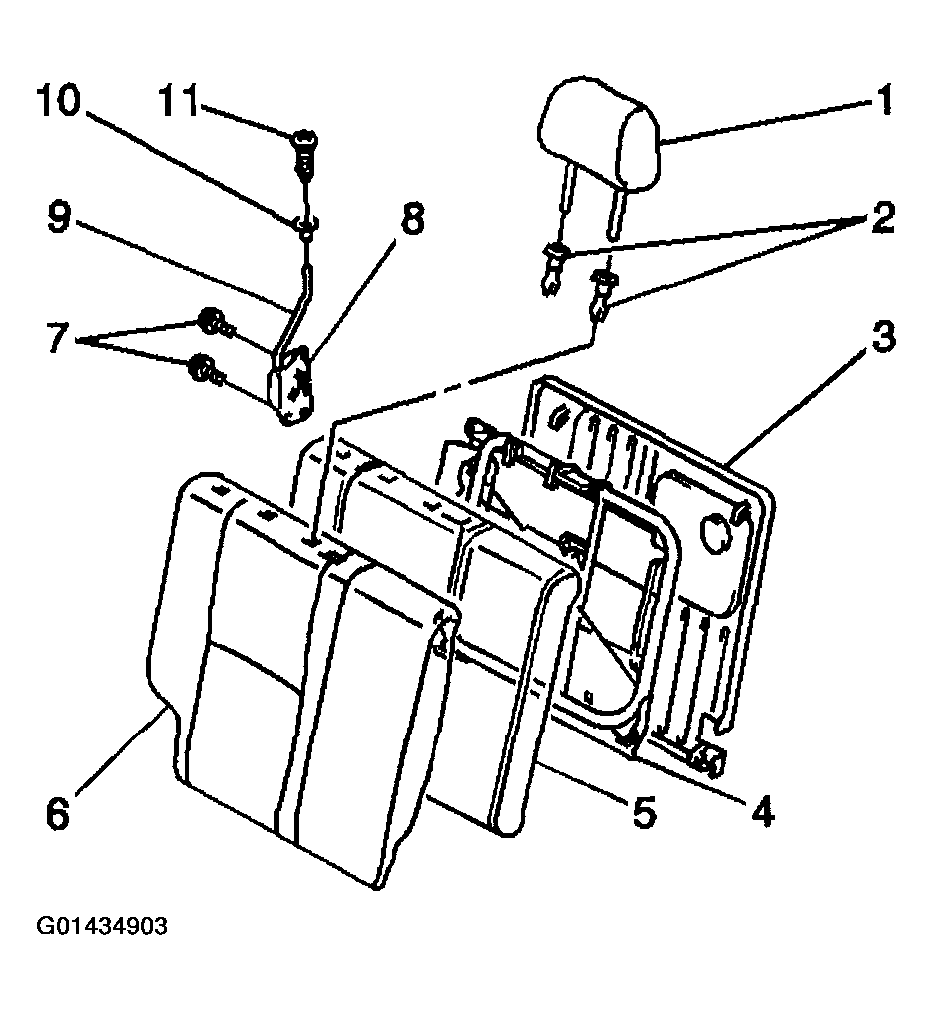

    Fig 1: Removing Seat Back Latch & Rod From Rear Seat
    G01434903Courtesy of GENERAL MOTORS CORP.
