Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat back latch (8) and rod (9) to the rear seat.
  2. Install the rear seat back latch bolts (7) to the rear seat back latch.
  3. Install the rear seat back cushion cover (6). Refer to SEAT BACK COVER AND PAD - REAR SPLIT FOLDING  .
  4. Install the seat latch retainer (10) and knob (11).
  5. Install the rear seat back trim panel (3). Refer to TRIM PANEL REPLACEMENT - REAR SEAT BACK (LEFT)  or TRIM PANEL REPLACEMENT - REAR SEAT BACK (RIGHT)  .

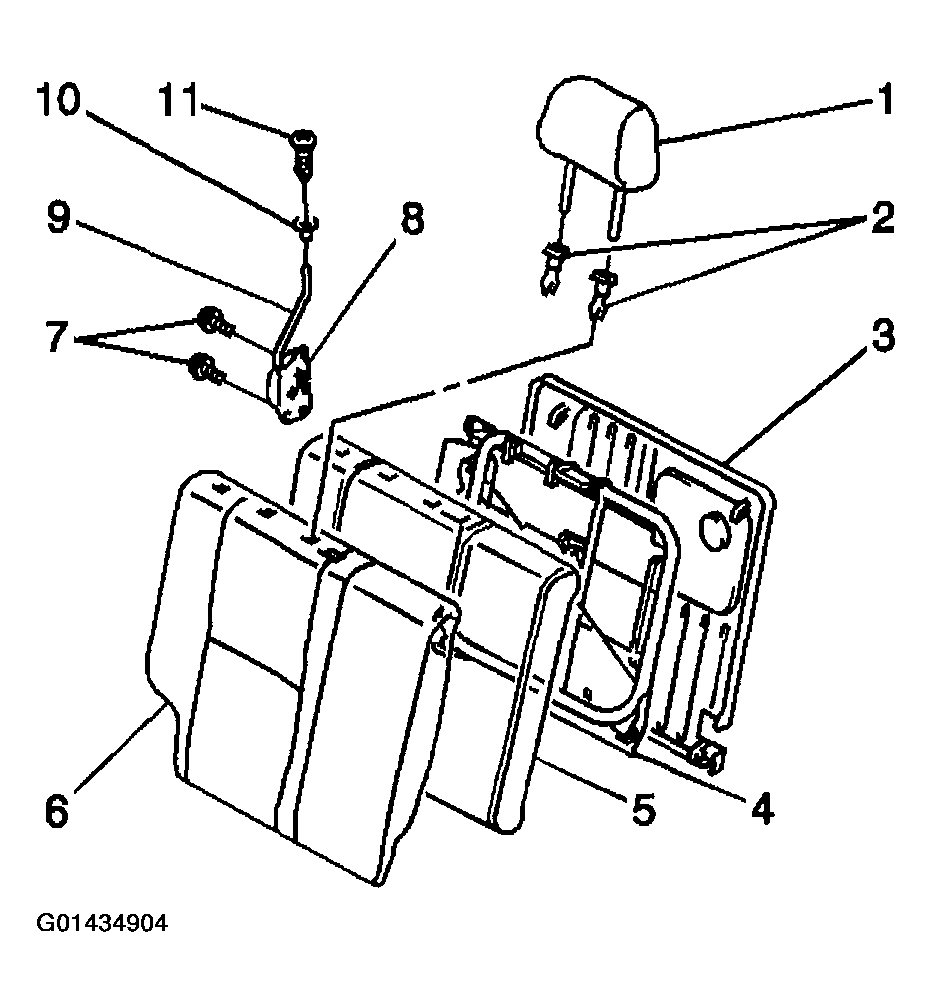

    Fig 1: Installing Seat Back Latch & Rod From Rear Seat
    G01434904Courtesy of GENERAL MOTORS CORP.
