Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Remove the passenger front seat back assembly (1). Refer to SEAT BACK REPLACEMENT - FRONT (DRIVER SIDE)  or SEAT BACK REPLACEMENT - FRONT (PASSENGER SIDE)  .
  3. Remove the outer and inner seat back recliner trim panels (8). Refer to SEAT BACK RECLINER OUTER TRIM PANEL REPLACEMENT - FRONT SEAT  and SEAT BACK RECLINER INNER TRIM PANEL REPLACEMENT - FRONT SEAT  .
  4. Remove the bolts (6) from the seat back recliner (5).
  5. Remove seat back recliner (5) from the seat back assembly (1).

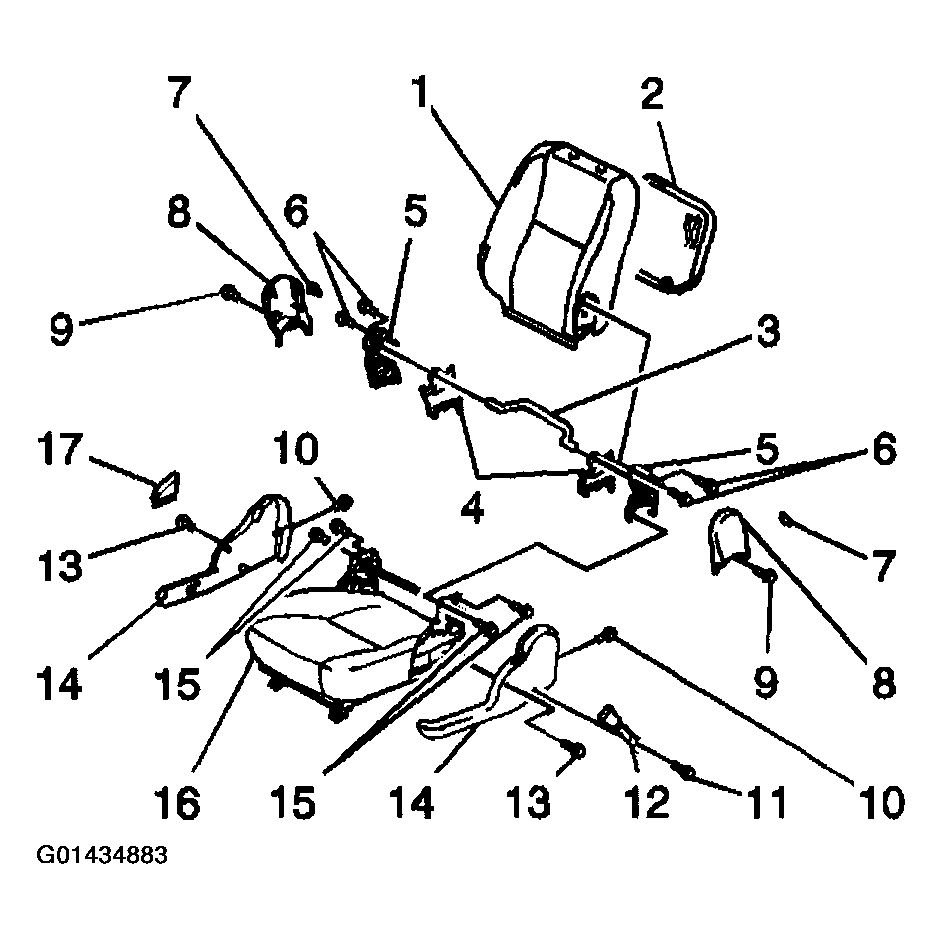

    Fig 1: Removing Seat Back Recliner & Bolts
    G01434883Courtesy of GENERAL MOTORS CORP.
