Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back recliner (5) to the seat back assembly (1).
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts (6) to the seat back recliner (5).

    Tighten

    Tighten the bolts (6) to 43 N.m (32 lb ft).

  3. Install the inner and outer seat back recliner trim panels (8). Refer to SEAT BACK RECLINER OUTER TRIM PANEL REPLACEMENT - FRONT SEAT  and SEAT BACK RECLINER INNER TRIM PANEL REPLACEMENT - FRONT SEAT  .
  4. Install the passenger seat back assembly (1). Refer to SEAT BACK REPLACEMENT - FRONT (DRIVER SIDE)  or SEAT BACK REPLACEMENT - FRONT (PASSENGER SIDE)  .
  5. Install the passenger front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET  .

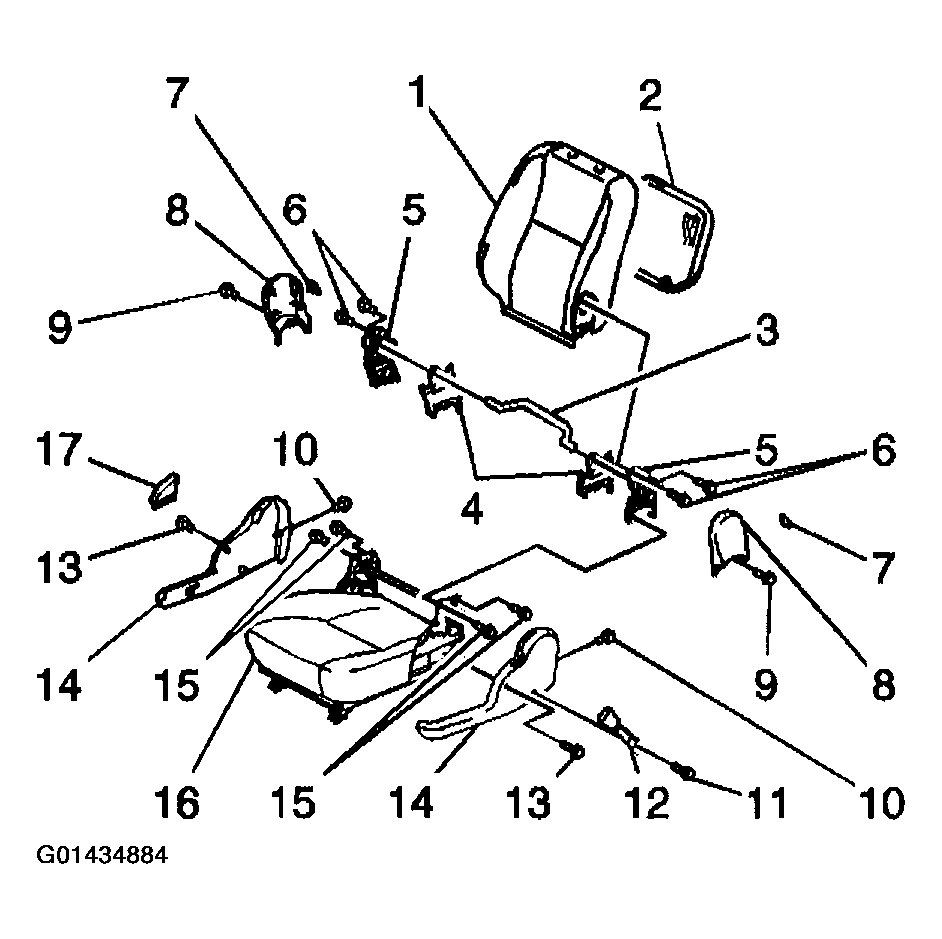

    Fig 1: Installing Seat Back Recliner & Bolts
    G01434884Courtesy of GENERAL MOTORS CORP.
