Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Remove the seat adjuster track covers (14). Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT (OUTBOARD)  or SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT (INBOARD)  .

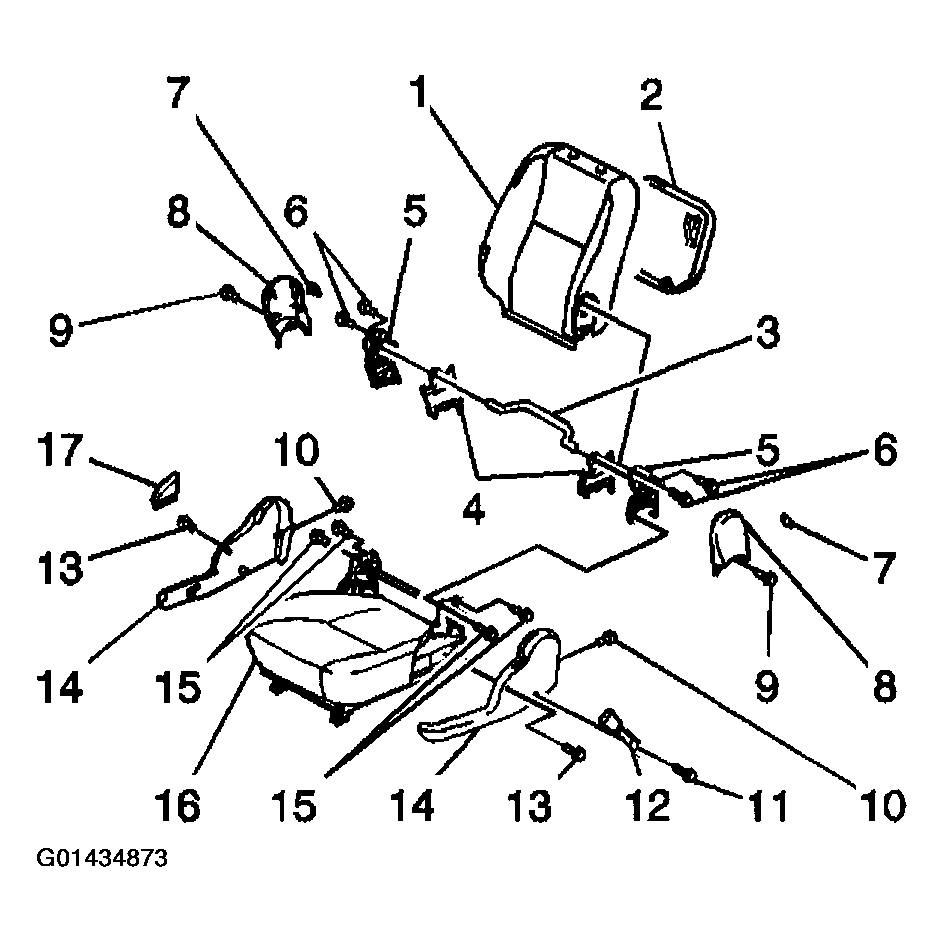

    Fig 1: Removing Front Seat Assembly - Outer Trim Panel
    G01434873Courtesy of GENERAL MOTORS CORP.
  3. Using a flat-bladed tool, remove the recliner handle (1) from the front seat outboard adjuster by disengaging the retaining tab (2).

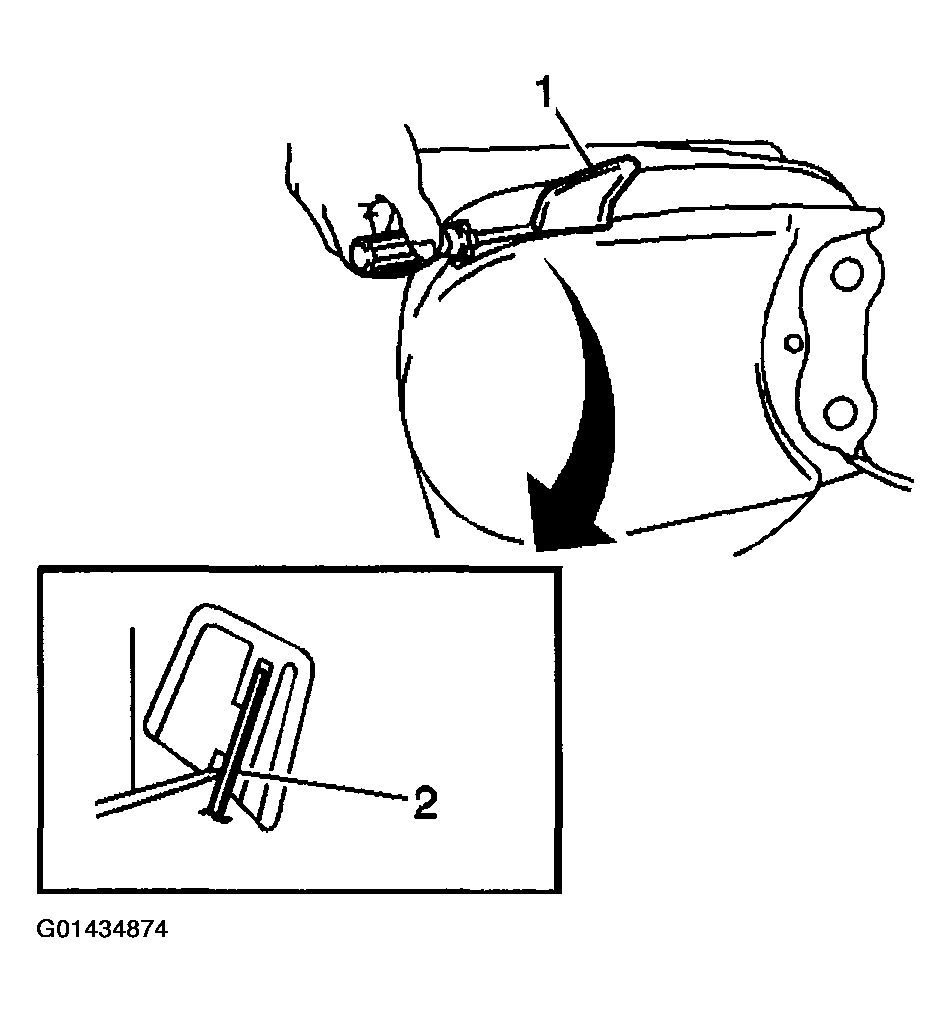

    Fig 2: Removing Recliner Handle From Front Seat Outboard Adjuster - Outer Trim Panel
    G01434874Courtesy of GENERAL MOTORS CORP.
  4. Remove the screw (3) from the trim cover (1).
  5. Disengage the retaining tab (2) and slide trim cover (1) upward to remove.

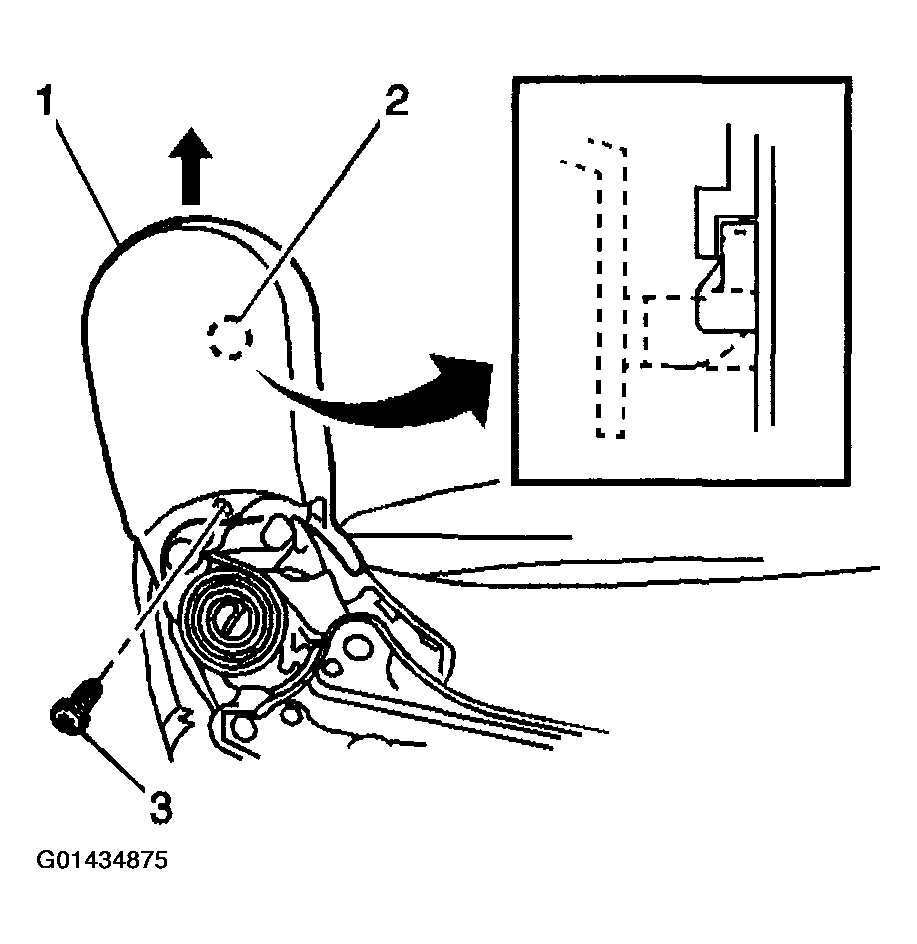

    Fig 3: Disengaging Retaining Tab & Sliding Trim Cover Upward To Remove - Outer Trim Panel
    G01434875Courtesy of GENERAL MOTORS CORP.
