Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install trim cover (1) over recliner, and slide down until tab (2) engages.
  2. Install the screw (3) to the trim cover (1)

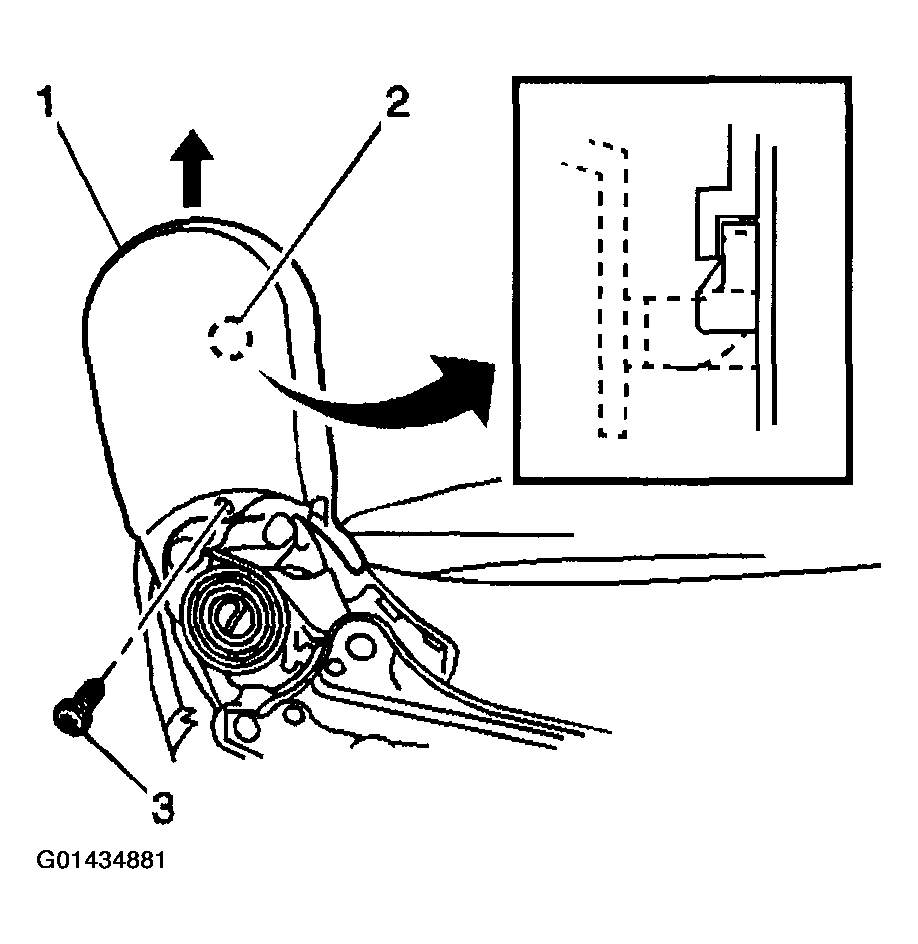

    Fig 1: Installing Trim Cover Over Recliner & Sliding Down Until Tab Engages - Inner Trim Panel
    G01434881Courtesy of GENERAL MOTORS CORP.
  1. Install the recliner handle (1) to the front seat adjuster by engaging the retaining tab (2).
  2. Install the seat adjuster track covers. Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT (OUTBOARD)  or SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT (INBOARD)  .
  3. Install the front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET  .

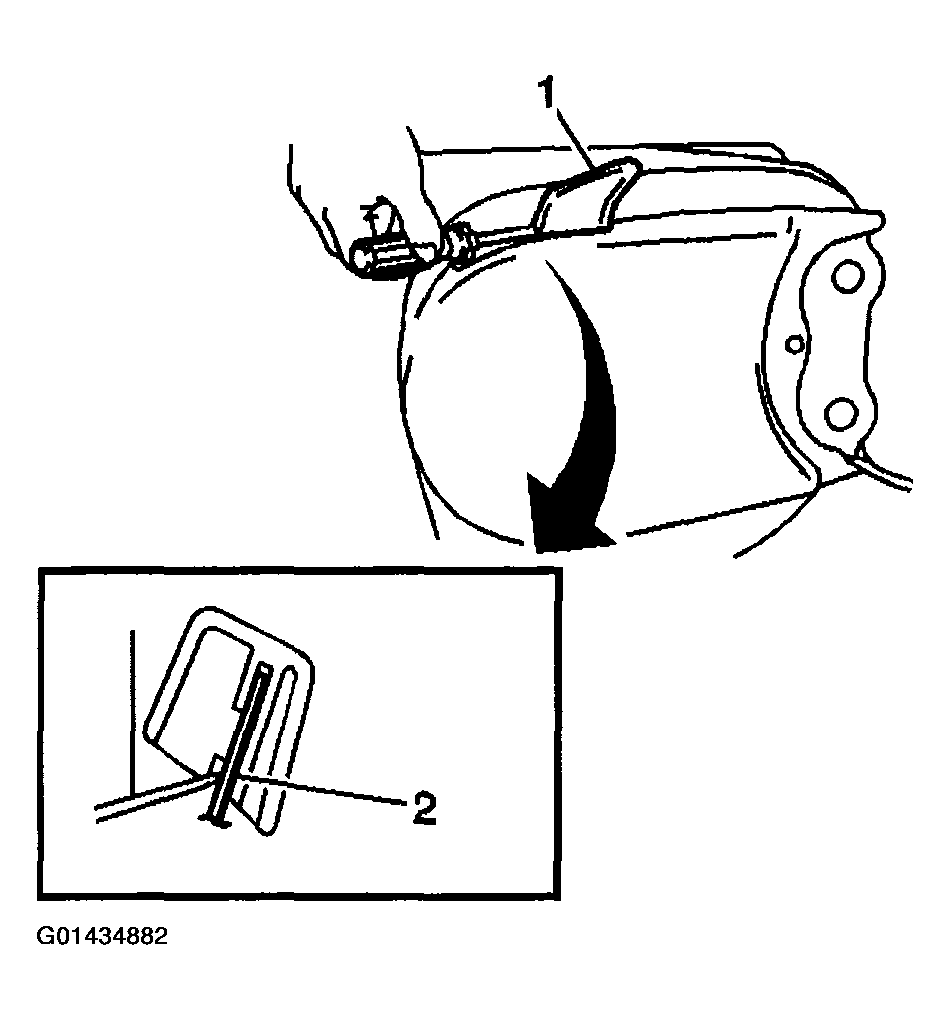

    Fig 2: Installing Recliner Handle To Front Seat Adjuster - Inner Trim Panel
    G01434882Courtesy of GENERAL MOTORS CORP.
