Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat head restraint (1). Refer to HEAD RESTRAINT REPLACEMENT - REAR SEAT  .
  2. Remove the rear seat back cushion. Refer to SEAT BACK REPLACEMENT - REAR SPLIT FOLDING  .
  3. Remove the seat back cover (6) and pad (5). Refer to SEAT BACK COVER AND PAD - REAR SPLIT FOLDING  .

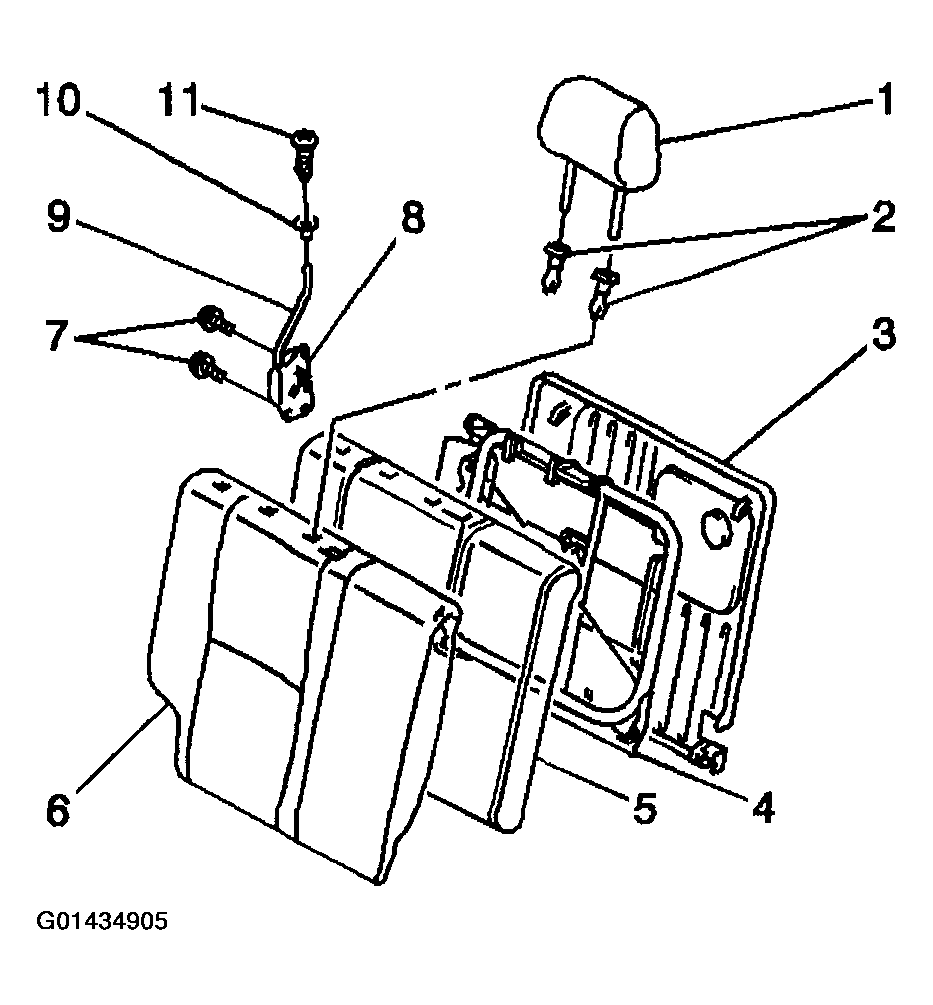

    Fig 1: Removing Seat Back Cover & Pad
    G01434905Courtesy of GENERAL MOTORS CORP.
