Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat back cushion pad (5) and cover (6) to the frame (4). Refer to SEAT BACK COVER AND PAD - REAR SPLIT FOLDING  .
  2. Install the rear seat back cushion. Refer to SEAT BACK REPLACEMENT - REAR SPLIT FOLDING  .
  3. Install the rear seat head restraint (1). Refer to HEAD RESTRAINT REPLACEMENT - REAR SEAT  .

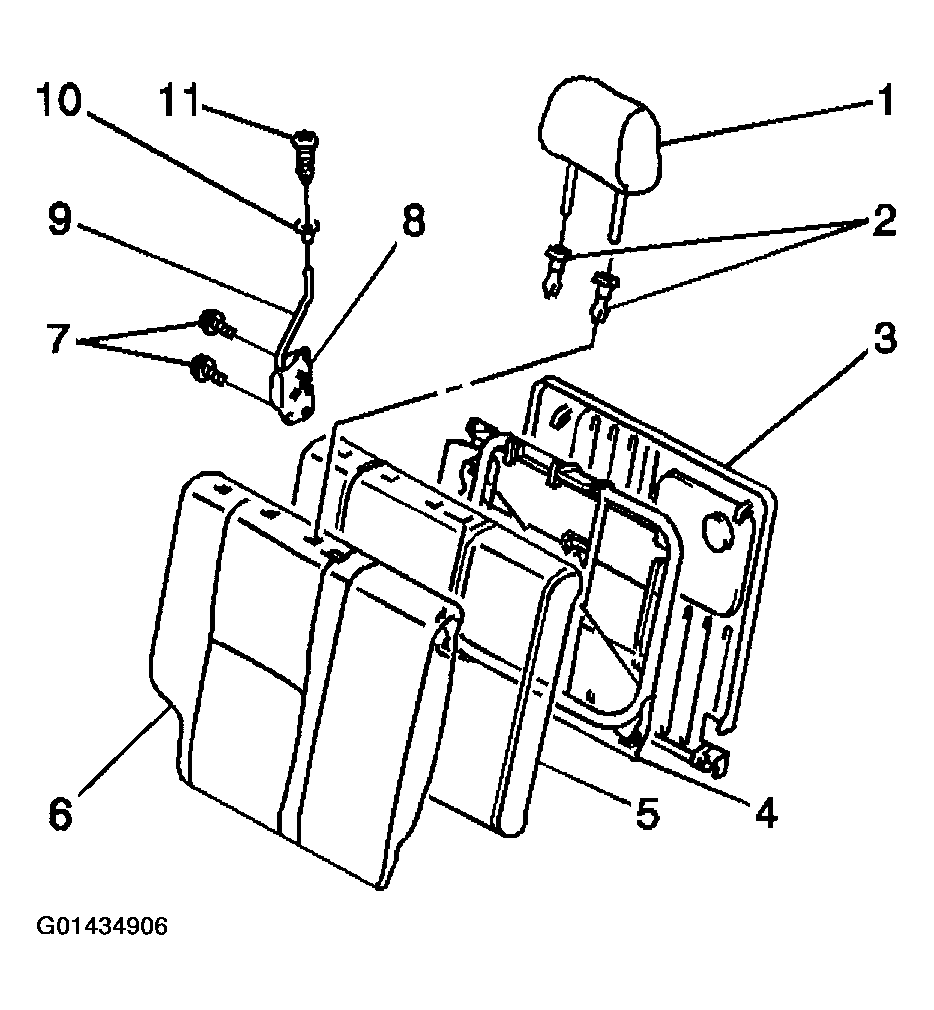

    Fig 1: Installing Rear Seat Back Cushion Pad & Cover To Frame
    G01434906Courtesy of GENERAL MOTORS CORP.
