Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Remove the front seat back assembly. Refer to SEAT BACK REPLACEMENT - FRONT (DRIVER SIDE)  or SEAT BACK REPLACEMENT - FRONT (PASSENGER SIDE)  .
  3. Remove the head restraint (1) from the seat back cushion (3).
    Fig 1: Removing Head Restraint From Seat Back Cushion
    G01434866Courtesy of GENERAL MOTORS CORP.
  4. Gently pry the head restraint guides (1) from the seat back cushion (2) using a flat-bladed tool.
    Fig 2: Prying Head Restraint Guides From Seat Back Cushion
    G01434867Courtesy of GENERAL MOTORS CORP.
  5. Remove the seat back trim panel, if necessary. Refer to SEAT BACK TRIM REPLACEMENT - FRONT  .
  6. Cut and remove the hog rings.
  7. Roll the seat back cushion cover (1) upward slowly and evenly.
  8. Remove the seat back cushion pad (2) from the frame (3), if necessary.

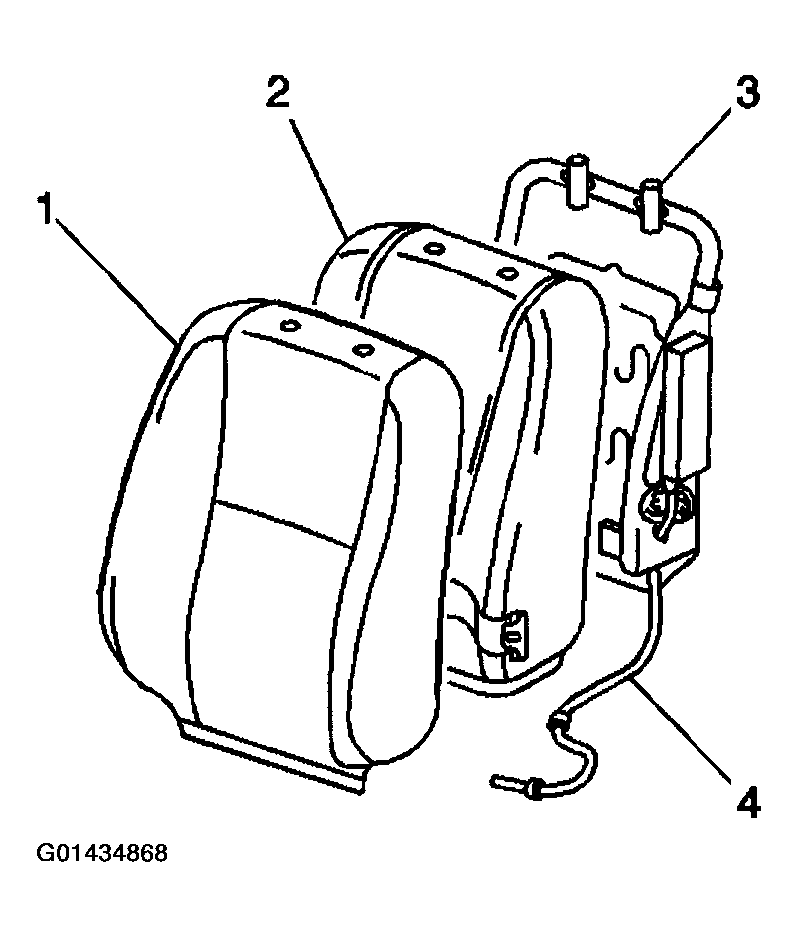

    Fig 3: Removing Seat Back Cushion Pad From Frame
    G01434868Courtesy of GENERAL MOTORS CORP.
