Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back cushion pad (2) to the frame (3), if removed.
  2. Roll the seat back cushion cover (1) down over the seat back cushion (2).
  3. Use hog ring pliers to install new hog rings. Ensure that the seat back cushion cover (1) is secure.
  4. Install seat back trim panel, if removed. Refer to SEAT BACK TRIM REPLACEMENT - FRONT  .

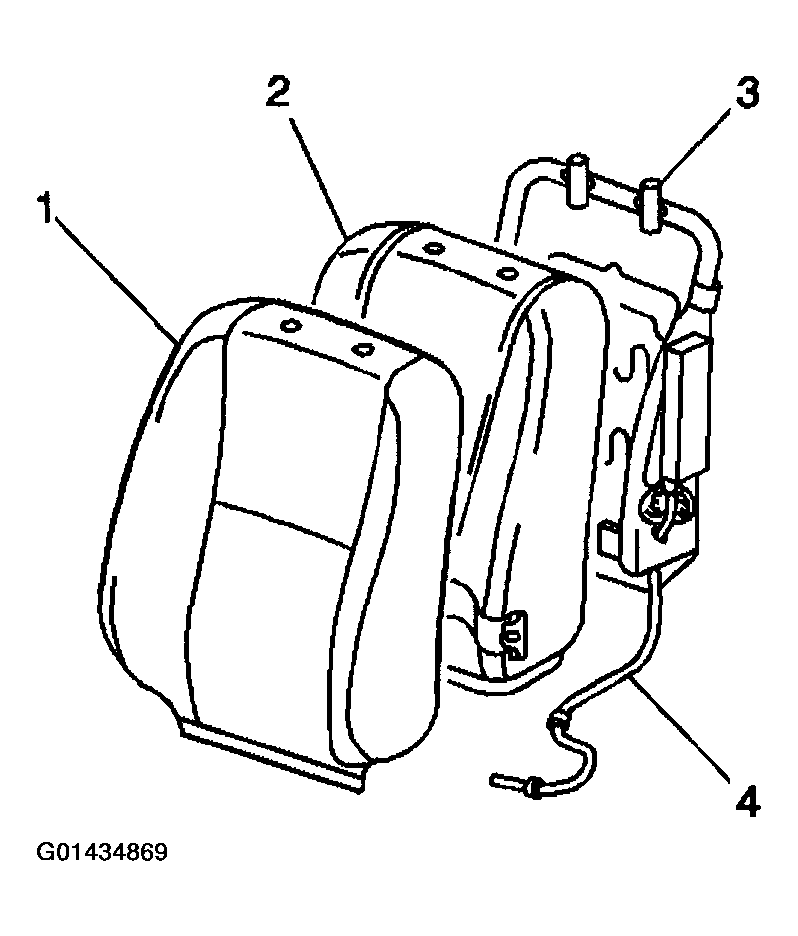

    Fig 1: Installing Seat Back Cushion Pad To Frame
    G01434869Courtesy of GENERAL MOTORS CORP.
  5. Install the head restraint guides (2) to the seat back cushion (3).
  6. Install the head restraint (1) to the seat back cushion (3).
  7. Install the front seat back assembly. Refer to SEAT BACK REPLACEMENT - FRONT (DRIVER SIDE)  or SEAT BACK REPLACEMENT - FRONT (PASSENGER SIDE)  .
  8. Install the front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
    Fig 2: Installing Head Restraint Guides To Seat Back Cushion
    G01434870Courtesy of GENERAL MOTORS CORP.
