Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat head restraint (1). Refer to HEAD RESTRAINT REPLACEMENT - REAR SEAT  .
  2. Remove the rear seat back cushion. Refer to SEAT BACK REPLACEMENT - REAR SPLIT FOLDING  .
  3. Remove rear seat latch knob (11) and retainer (10).
    Fig 1: Removing Rear Seat Latch Knob & Retainer
    G01434910Courtesy of GENERAL MOTORS CORP.
  4. Remove the plastic retainers which secure the seat back cushion cover (1) to the back of the seat.
    Fig 2: Removing Plastic Retainers Securing Seat Back Cushion Cover
    G01434911Courtesy of GENERAL MOTORS CORP.
  5. Cut and remove the hog rings around the perimeter of the back of the rear seat back cushion (1).

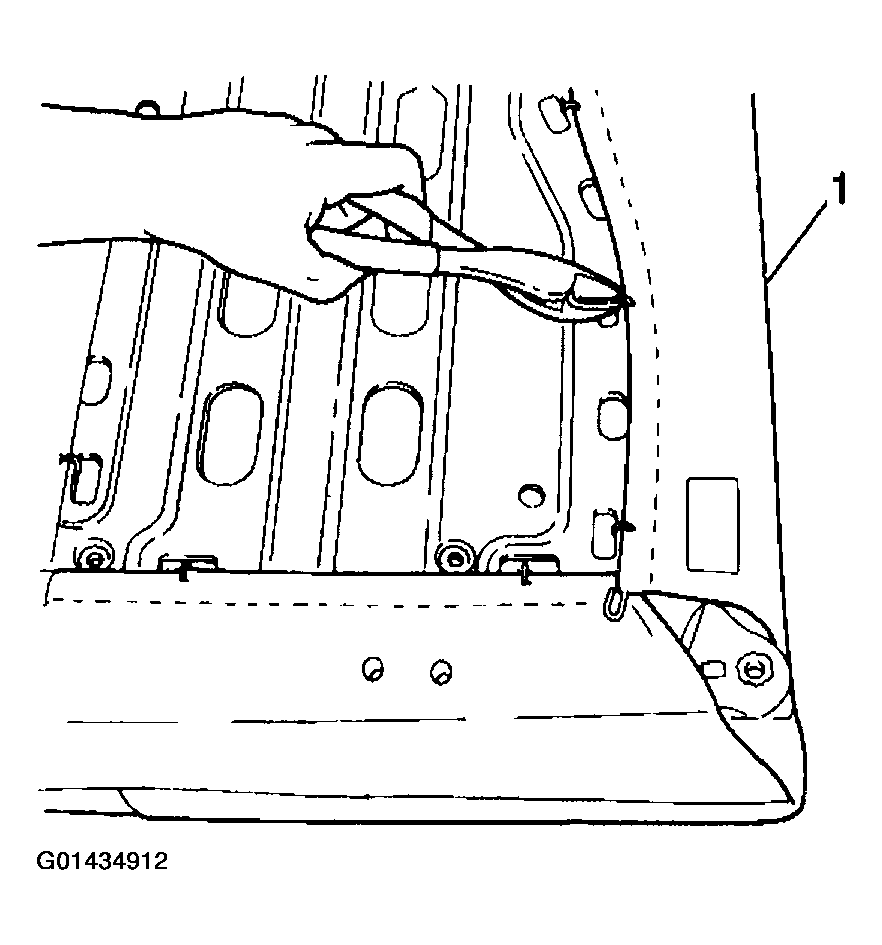

    Fig 3: Cutting & Removing Hog Rings Around Perimeter Of Back Of Rear Seat Back Cushion
    G01434912Courtesy of GENERAL MOTORS CORP.
  6. Remove the rear seat back cushion cover (6) from the cushion (5).
  7. Remove the seat back latch (8), if necessary. Refer to SEAT BACK RELEASE LATCH REPLACEMENT - REAR  .
  8. Remove the rear seat back cushion pad (5) from the frame (4), if necessary.
    Fig 4: Removing Rear Seat Back Cushion Cover From Cushion
    G01434913Courtesy of GENERAL MOTORS CORP.
