Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat back cushion pad (5) to the frame (4), if removed.
  2. Install the rear seat back latch (8), if removed. Refer to SEAT BACK RELEASE LATCH REPLACEMENT - REAR  in Seats.
  3. Install the rear seat back cushion cover (6) to the seat back cushion (5).
  4. Install the seat latch retainer (10) and knob (11).

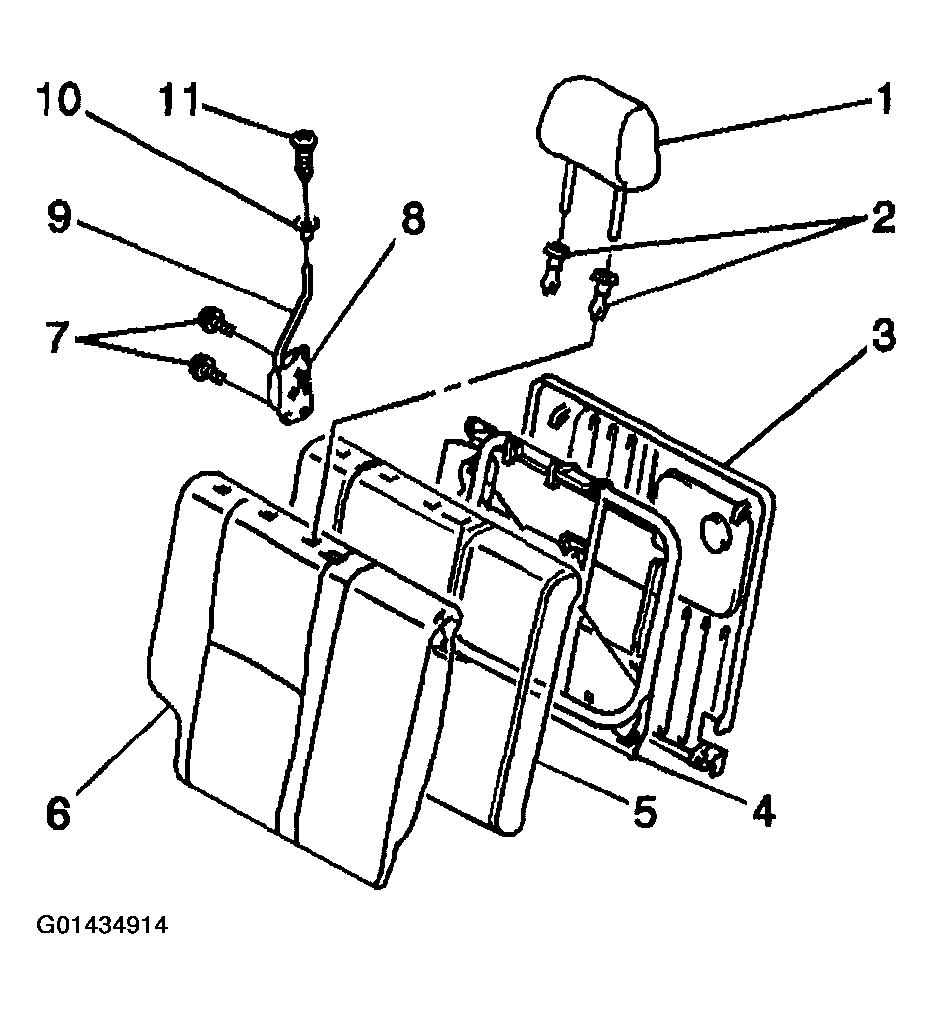

    Fig 1: Installing Rear Seat Back Cushion Cover To Seat Back Cushion
    G01434914Courtesy of GENERAL MOTORS CORP.
  5. Use hog ring pliers (1) to install new hog rings. Ensure that the rear seat back cushion cover is secured to the cushion (2).
  6. Install the plastic retainers which secure the seat back cushion cover to the back of the seat.

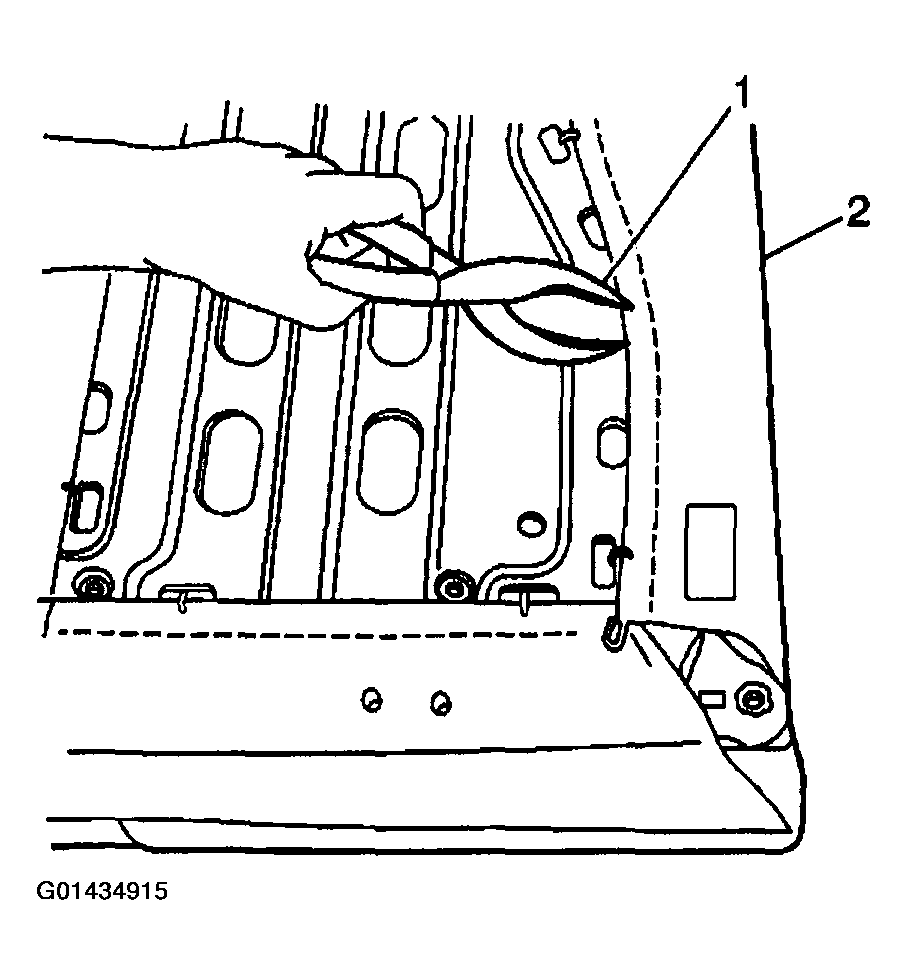

    Fig 2: Installing Hog Rings & Ensuring Rear Seat Back Cushion Cover Secured To Cushion
    G01434915Courtesy of GENERAL MOTORS CORP.
  7. Install the rear seat back cushion. Refer to SEAT BACK REPLACEMENT - REAR SPLIT FOLDING  .
  8. Install the rear seat head restraint (1). Refer to HEAD RESTRAINT REPLACEMENT - REAR SEAT  .

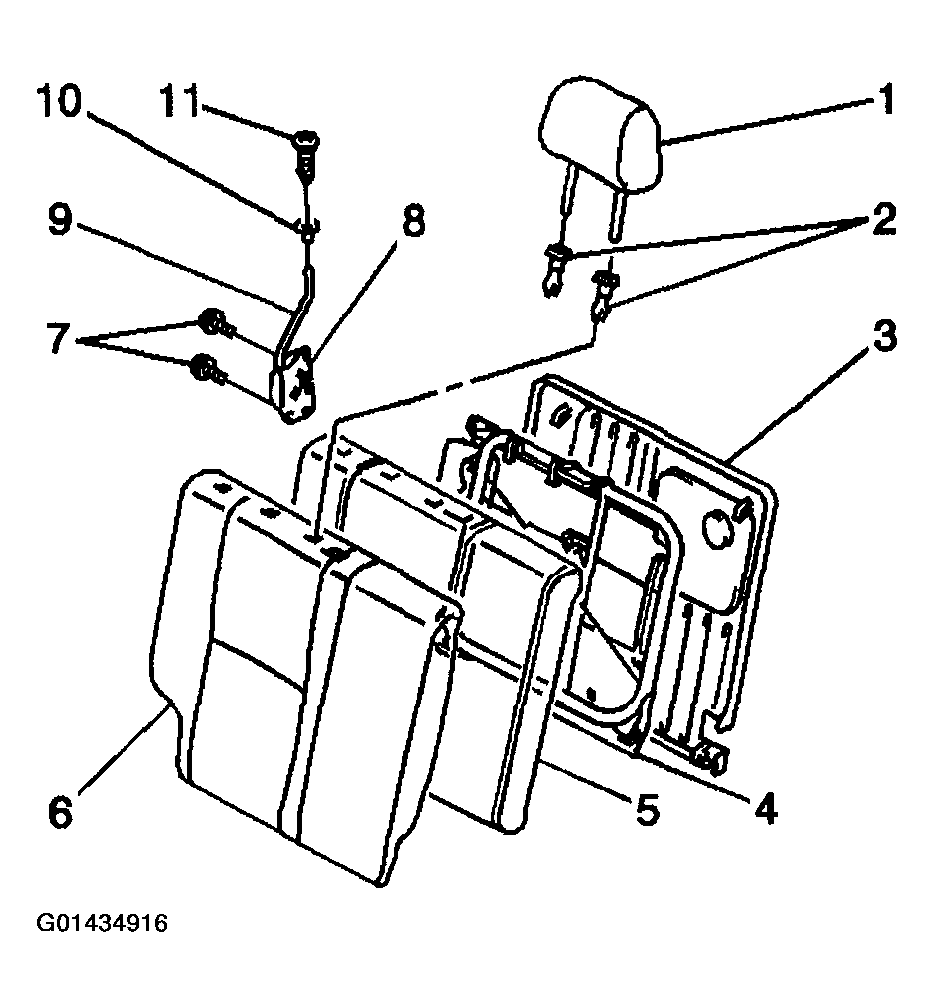

    Fig 3: Installing Rear Seat Head Restraint
    G01434916Courtesy of GENERAL MOTORS CORP.
