Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back cushion. Refer to SEAT BACK REPLACEMENT - REAR SPLIT FOLDING  .
  2. Remove lock release button (11) and grommet (10).
  3. Remove the head rest supports (2).

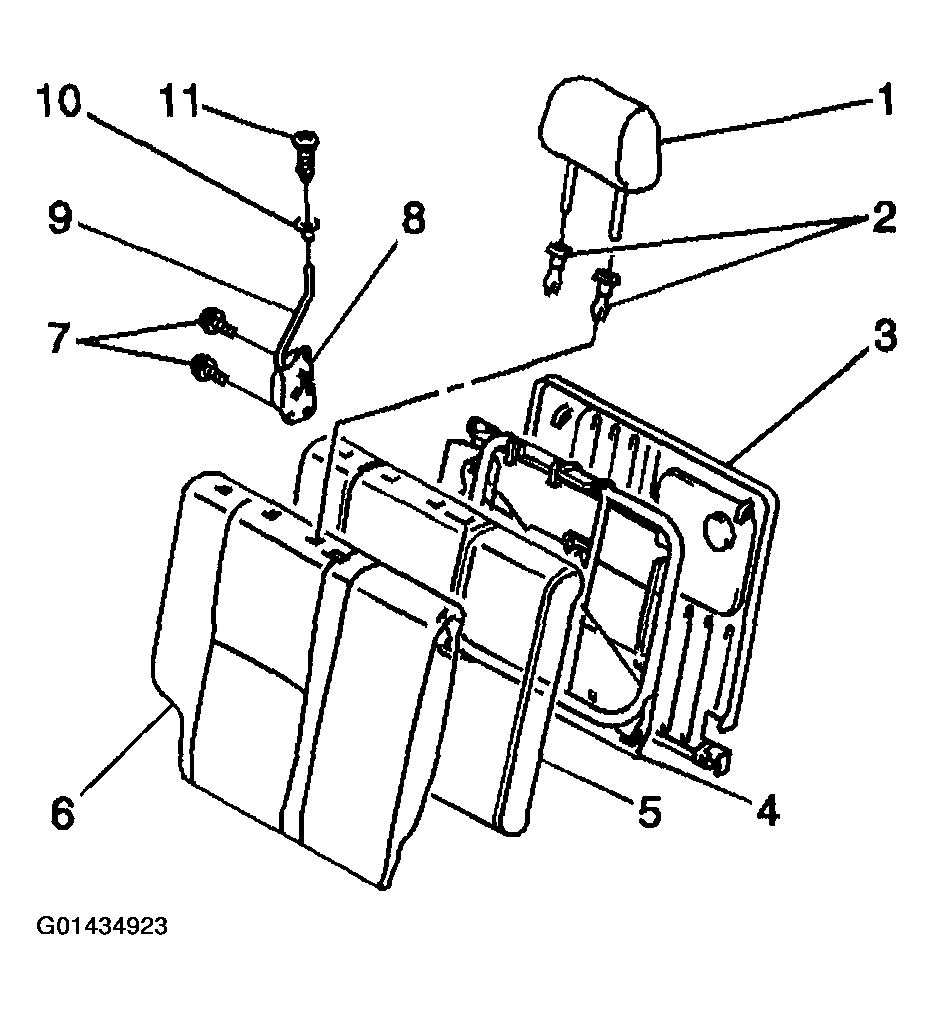

    Fig 1: Removing Head Rest Supports
    G01434923Courtesy of GENERAL MOTORS CORP.
  4. Cut the hog rings around the back perimeter of the rear seat back cushion (1).
  5. Remove the rear seat back cushion cover from the cushion.

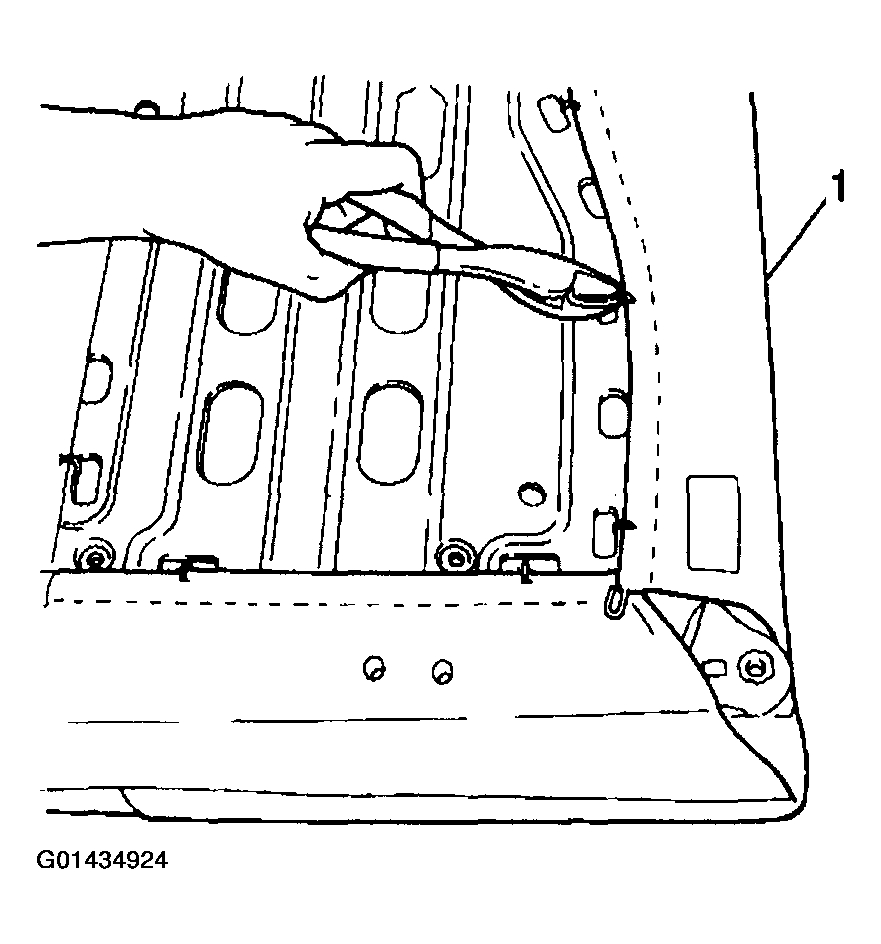

    Fig 2: Cutting Hog Rings Around Back Perimeter Of Rear Seat Back Cushion
    G01434924Courtesy of GENERAL MOTORS CORP.
