Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat back cushion cover to the seat cushion.
  2. Use hog ring pliers (1) to install new hog rings. Ensure that the rear seat back cushion cover is secured to the cushion (2).

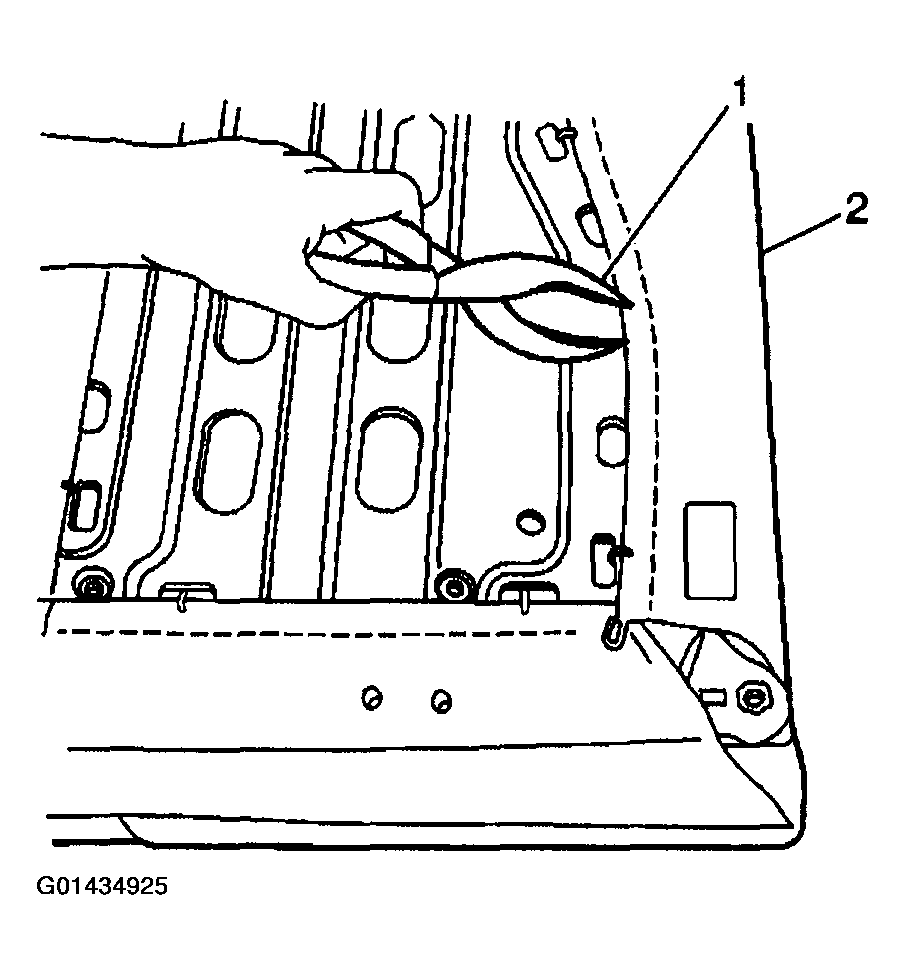

    Fig 1: Installing Hog Rings & Ensuring Rear Seat Back Cushion Cover Secured To Cushion
    G01434925Courtesy of GENERAL MOTORS CORP.
  3. Install the head rest supports (2) to the seat back (6).
  4. Install the lock release grommet (10) and button (11).
  5. Install the rear seat back cushion. Refer to SEAT BACK REPLACEMENT - REAR SPLIT FOLDING  .

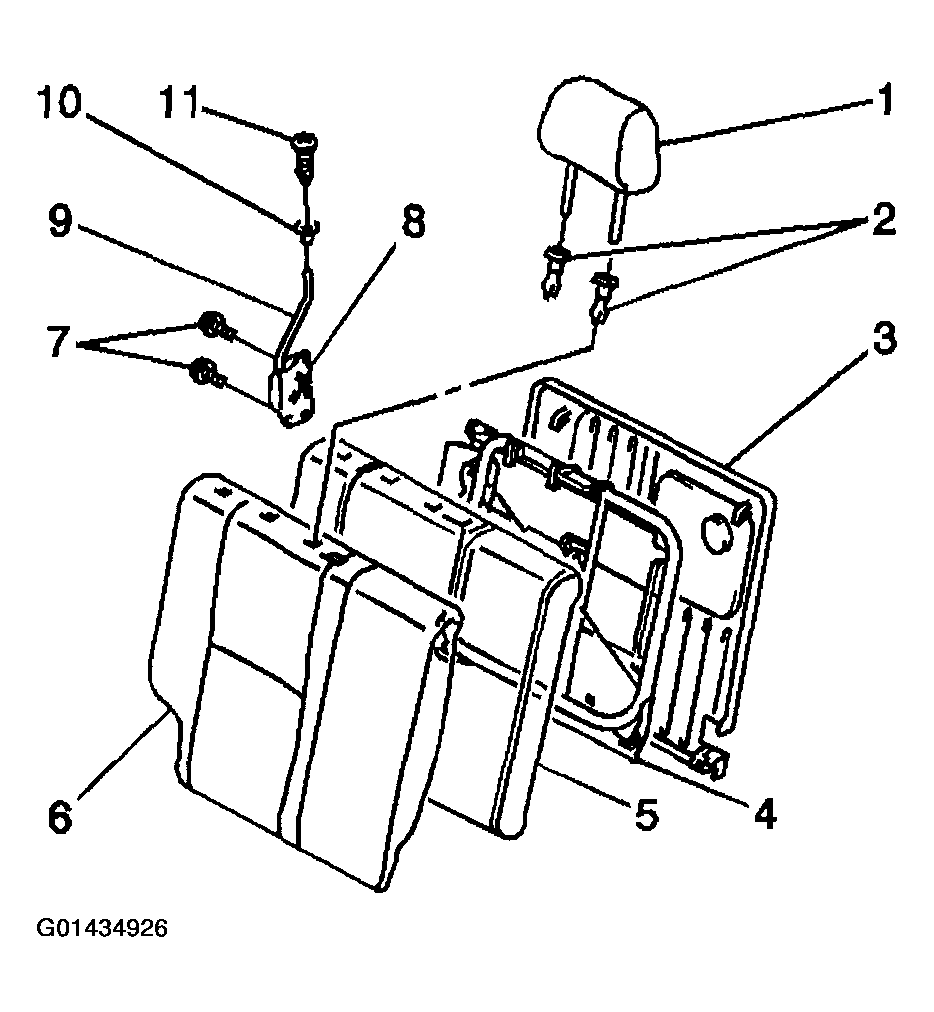

    Fig 2: Installing Head Rest Supports To Seat Back
    G01434926Courtesy of GENERAL MOTORS CORP.
