Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back cushion. Refer to SEAT BACK REPLACEMENT - REAR SPLIT FOLDING  .
  2. Remove the following components from the vehicle:
    • The 2 bolts (2) that retain the rear seat back cushion center pivot support (1)
    • The rear seat back cushion center pivot support (1)

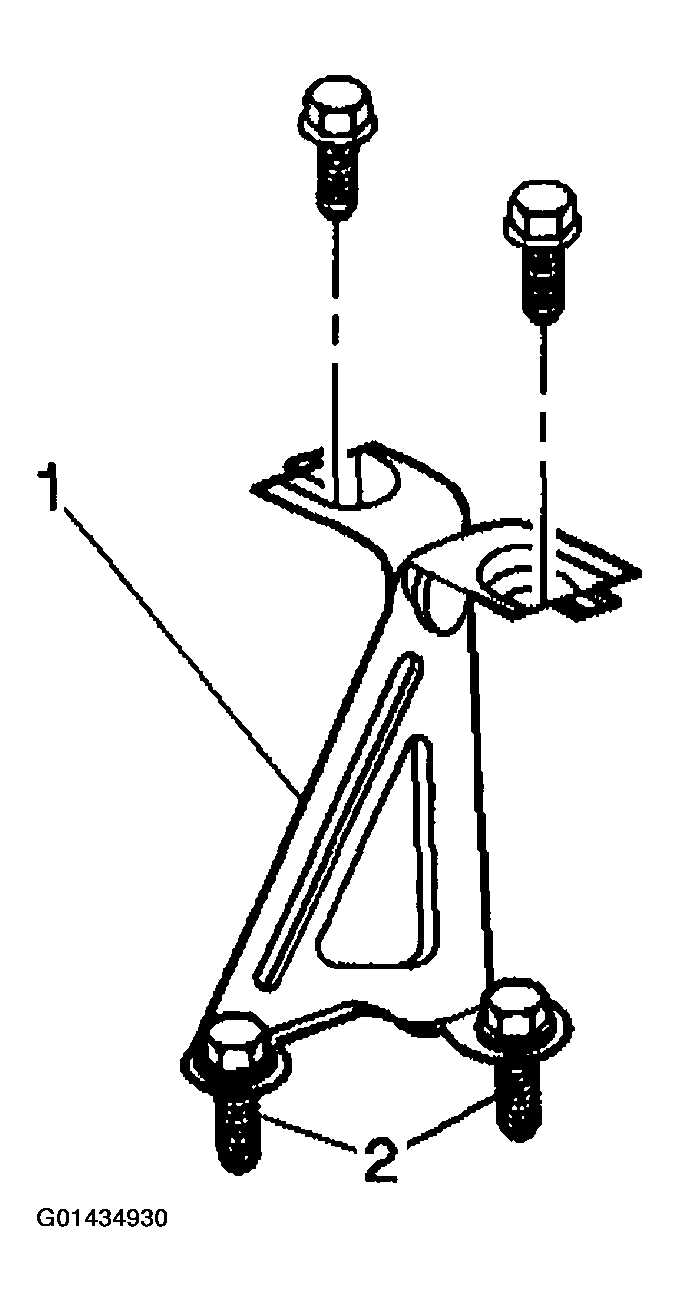

    Fig 1: Removing Bolts Retaining Rear Seat Back Cushion Center Pivot Support
    G01434930Courtesy of GENERAL MOTORS CORP.
