Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the rear seat back cushion center pivot support (1) to the vehicle. Secure the support with the 2 bolts (2).

    Tighten

    Tighten the center pivot support bolts to 18 N.m (13 lb in).

  2. Install the rear seat back cushion. Refer to SEAT BACK REPLACEMENT - REAR SPLIT FOLDING  .

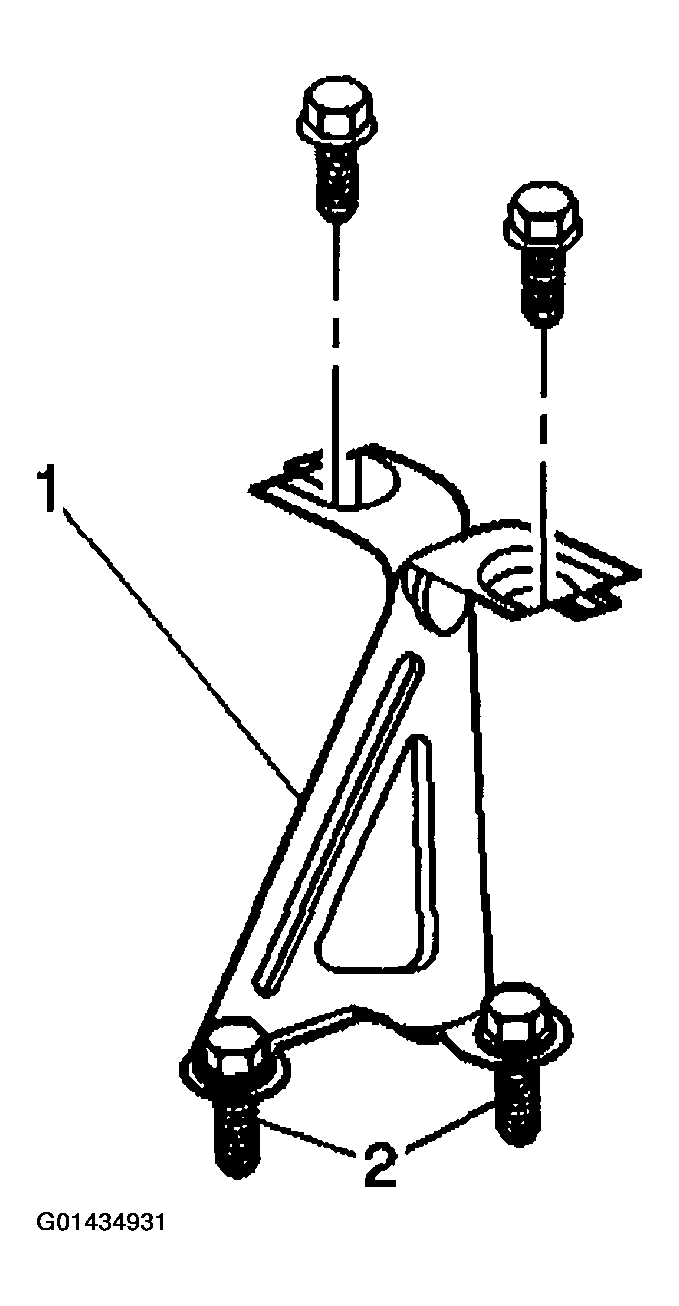

    Fig 1: Installing Bolts Retaining Rear Seat Back Cushion Center Pivot Support
    G01434931Courtesy of GENERAL MOTORS CORP.
