Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable driver seat SIR, if removing driver seat outer track cover. Refer to ZONE 7 .
  2. Disable passenger seat SIR, if removing passenger seat outer track cover. Refer to ZONE 9 .
  3. Remove the recliner handle (2) from the front seat outboard adjuster by disengaging the retaining tab (1).

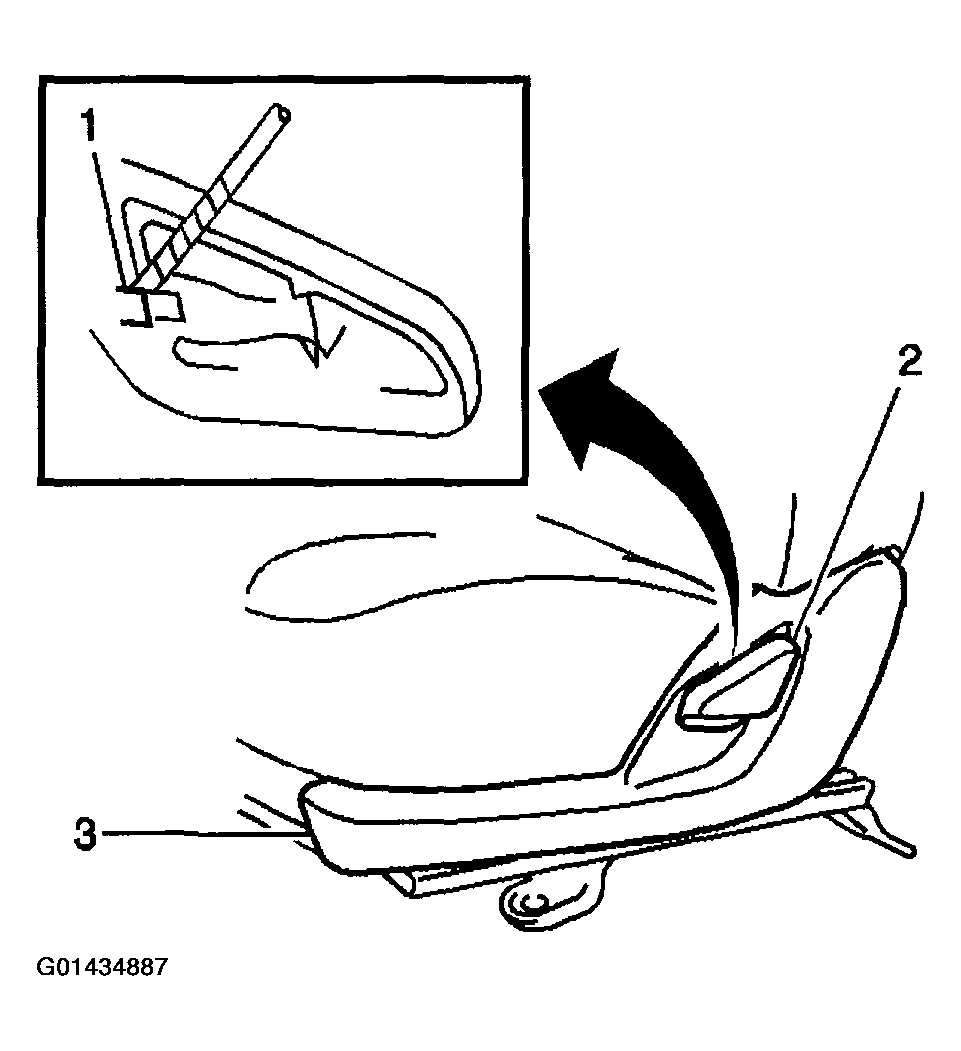

    Fig 1: Removing Recliner Handle From Front Seat Outboard Adjuster
    G01434887Courtesy of GENERAL MOTORS CORP.
  4. Remove the 2 screws (2) from the outer track cover (3).
  5. Disengage the tabs (1) from the outer track cover (3).
  6. Remove the outer track cover (3).

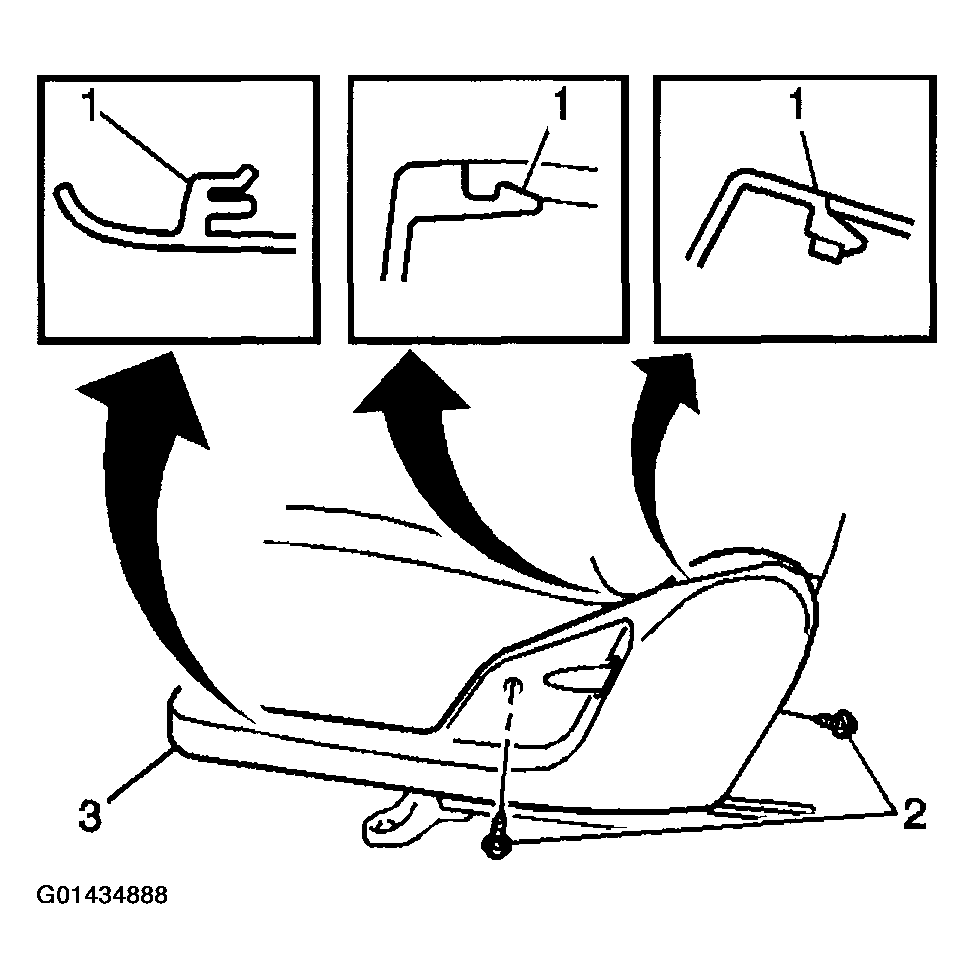

    Fig 2: Disengaging Tabs From Outer Track Cover
    G01434888Courtesy of GENERAL MOTORS CORP.
