Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the outboard adjuster finish cover (3) to the front seat assembly, by engaging the tabs (1).
  2. Install the 2 screws (2) to the outer track cover (3).

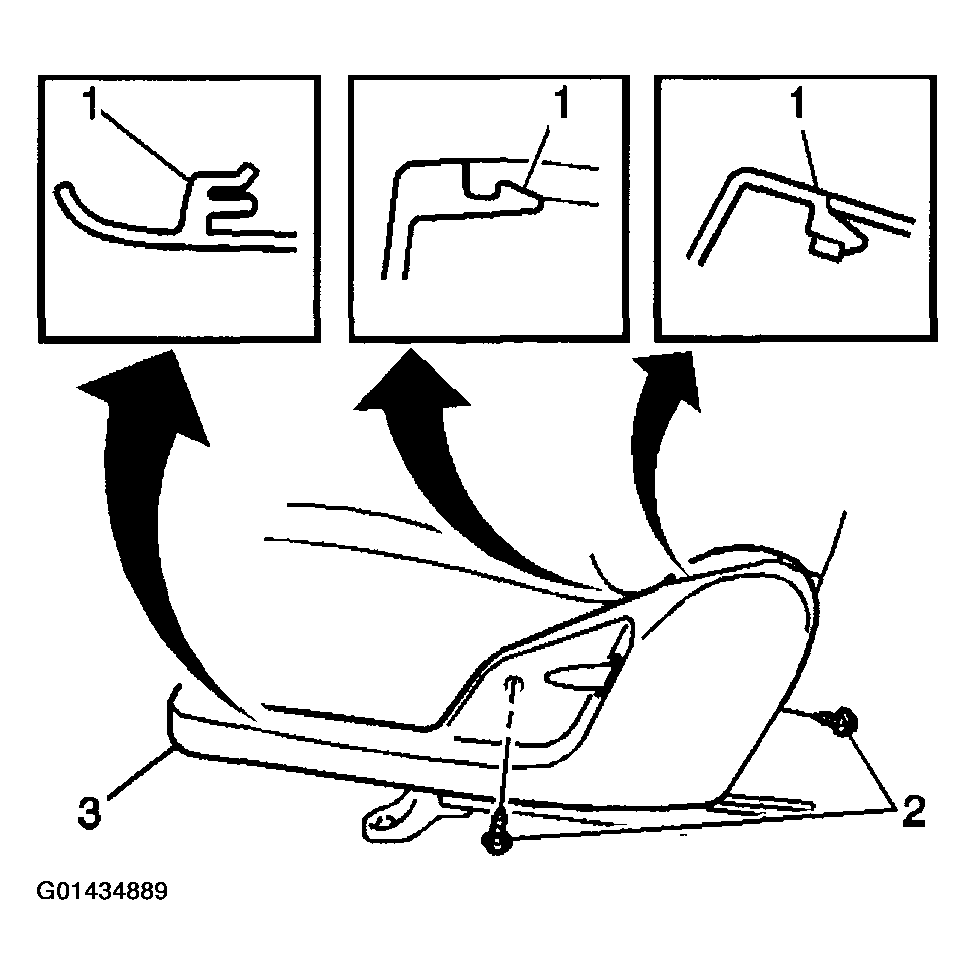

    Fig 1: Installing Outboard Adjuster Finish Cover To Front Seat Assembly
    G01434889Courtesy of GENERAL MOTORS CORP.
  3. Install the recliner handle (2) to the front seat outboard adjuster.
  4. Make sure recliner handle tab (1) engages to the recliner.
  5. Enable driver seat SIR, if outer track cover is removed. Refer to ZONE 7 .
  6. Enable passenger sear SIR, if outer track cover is removed. Refer to ZONE 9 .

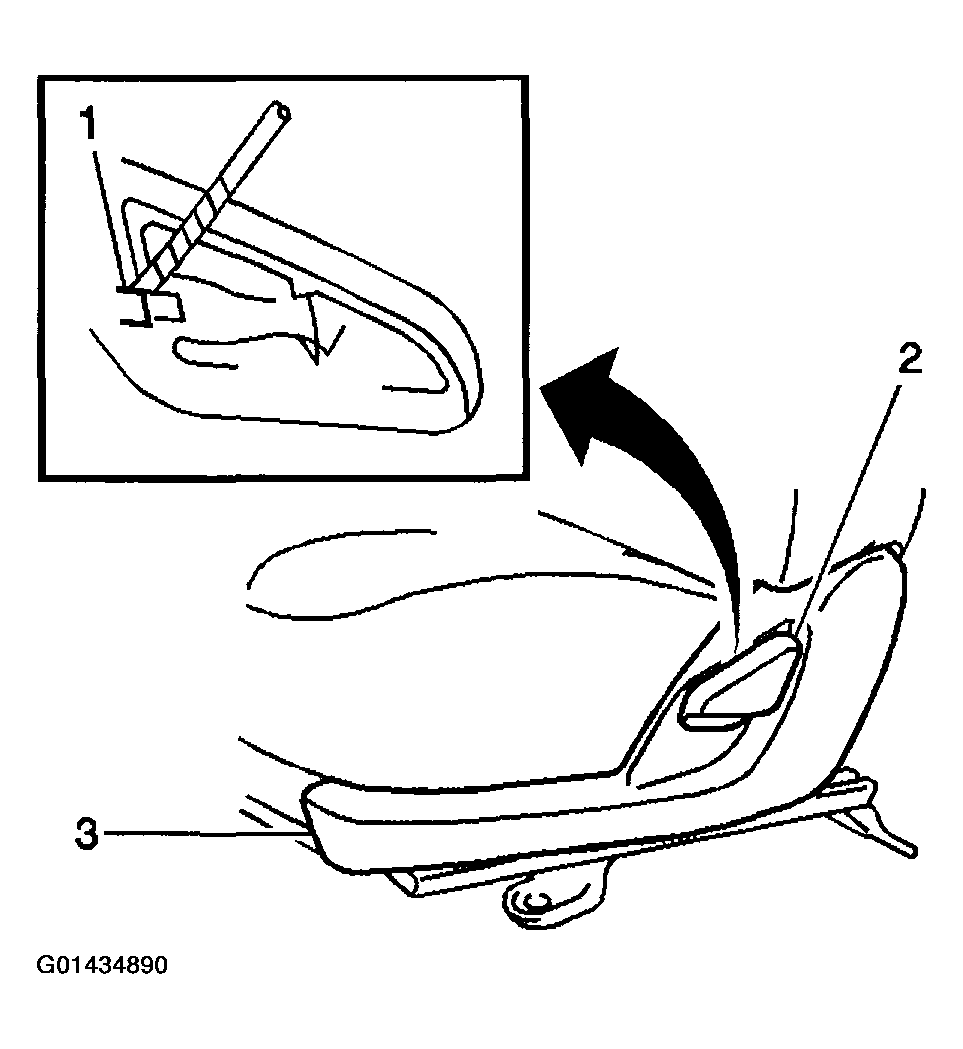

    Fig 2: Installing Recliner Handle To Front Seat Outboard Adjuster
    G01434890Courtesy of GENERAL MOTORS CORP.
