Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Install the sunroof window weatherstrip (1) to the sunroof opening flange. Press into place.

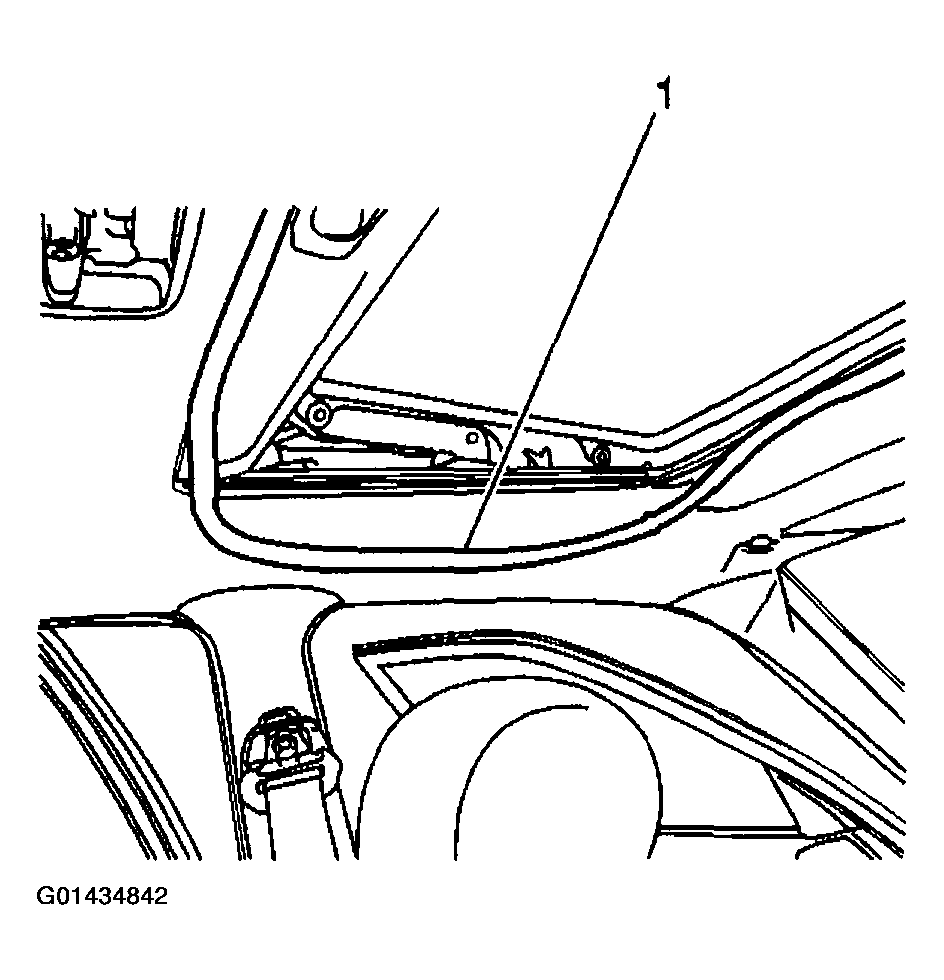

Fig 1: Installing Sunroof Window Weatherstrip To Sunroof Opening Flange
G01434842Courtesy of GENERAL MOTORS CORP.
