Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sunroof housing. Refer to SUNROOF REPLACEMENT  .
  2. Remove the following components from the sunroof housing:
    • The screw (2) which secures each stop (1)
    • The 2 sunroof sunshade stops
    • The sunroof sunshade

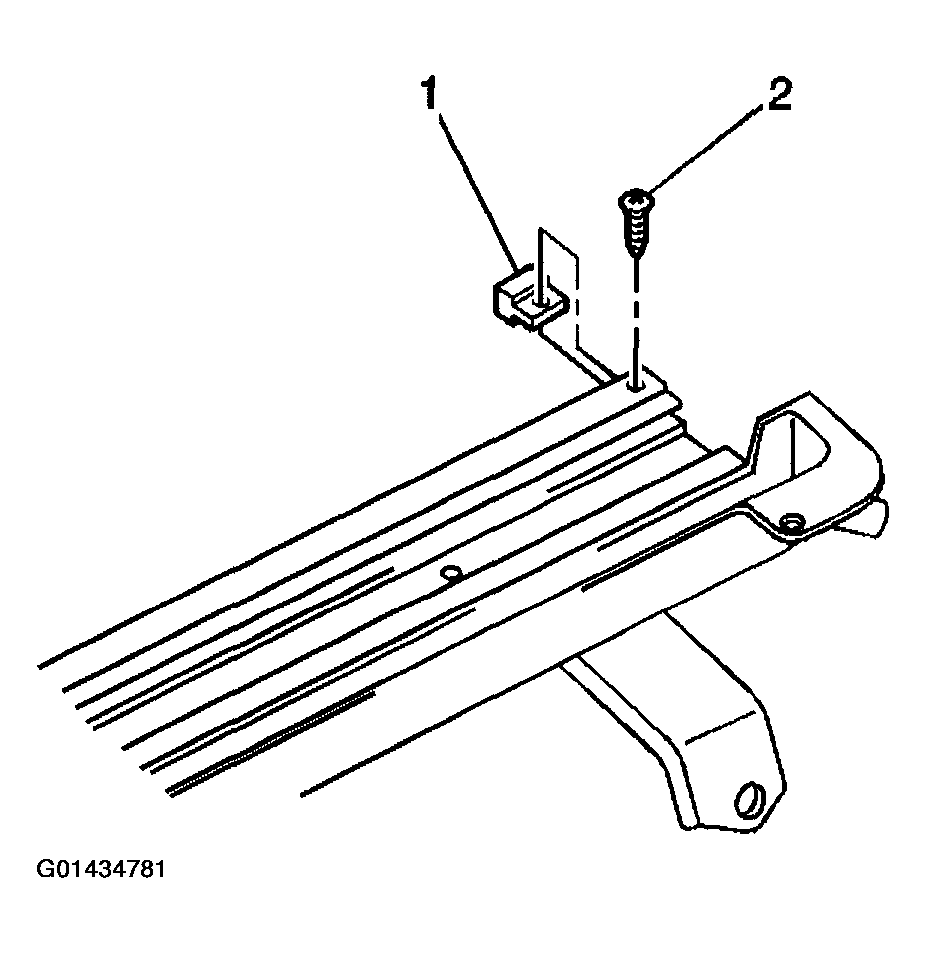

      Fig 1: Removing Screw Securing Sunroof Sunshade Stop
      G01434781Courtesy of GENERAL MOTORS CORP.
