Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sunroof sunshade to the sunroof housing. Secure the sunshade with the following components:
    • The 2 sunroof sunshade stops
    • The screw (2) which secures each stop (1)
  2. Install the sunroof housing. Refer to SUNROOF REPLACEMENT  .

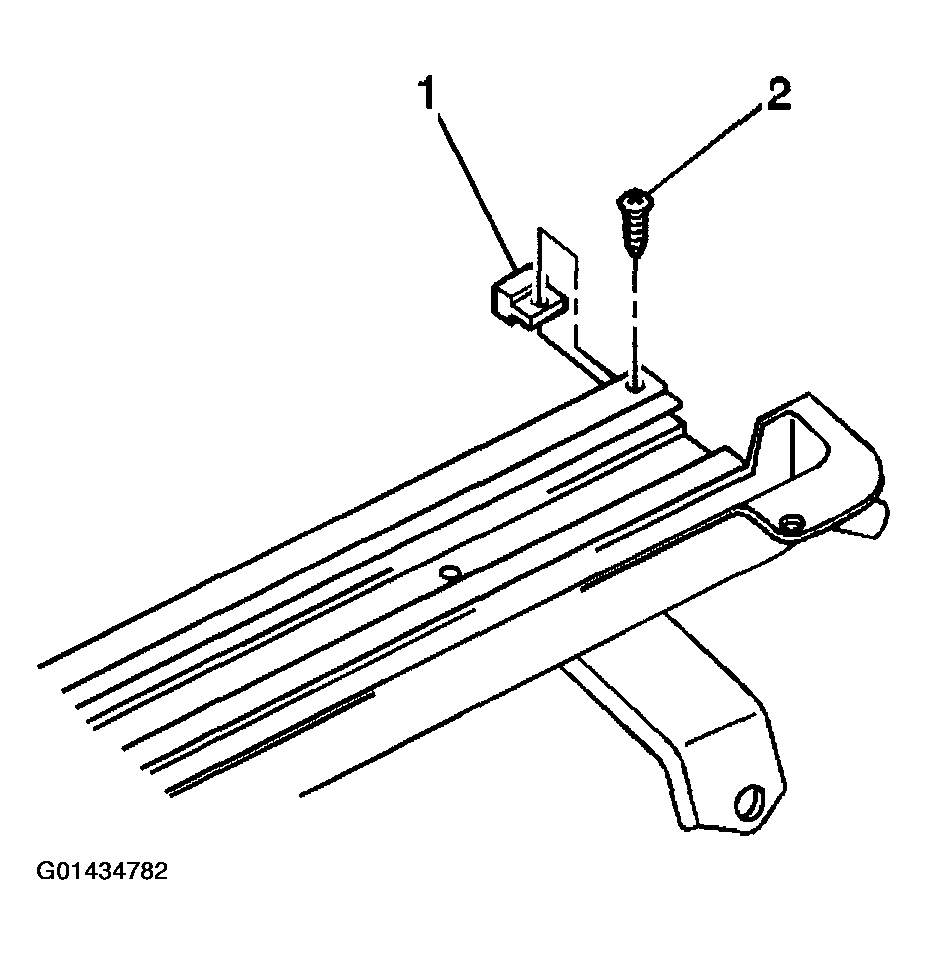

    Fig 1: Installing Screw Securing Sunroof Sunshade Stop
    G01434782Courtesy of GENERAL MOTORS CORP.
