Removal Procedure
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the headlining trim finish panel. Refer to HEADLINER REPLACEMENT in Interior Trim.
- Disconnect the sunroof actuator electrical connector.
Important: Remove the sunroof actuator with the motor in the fully closed position.

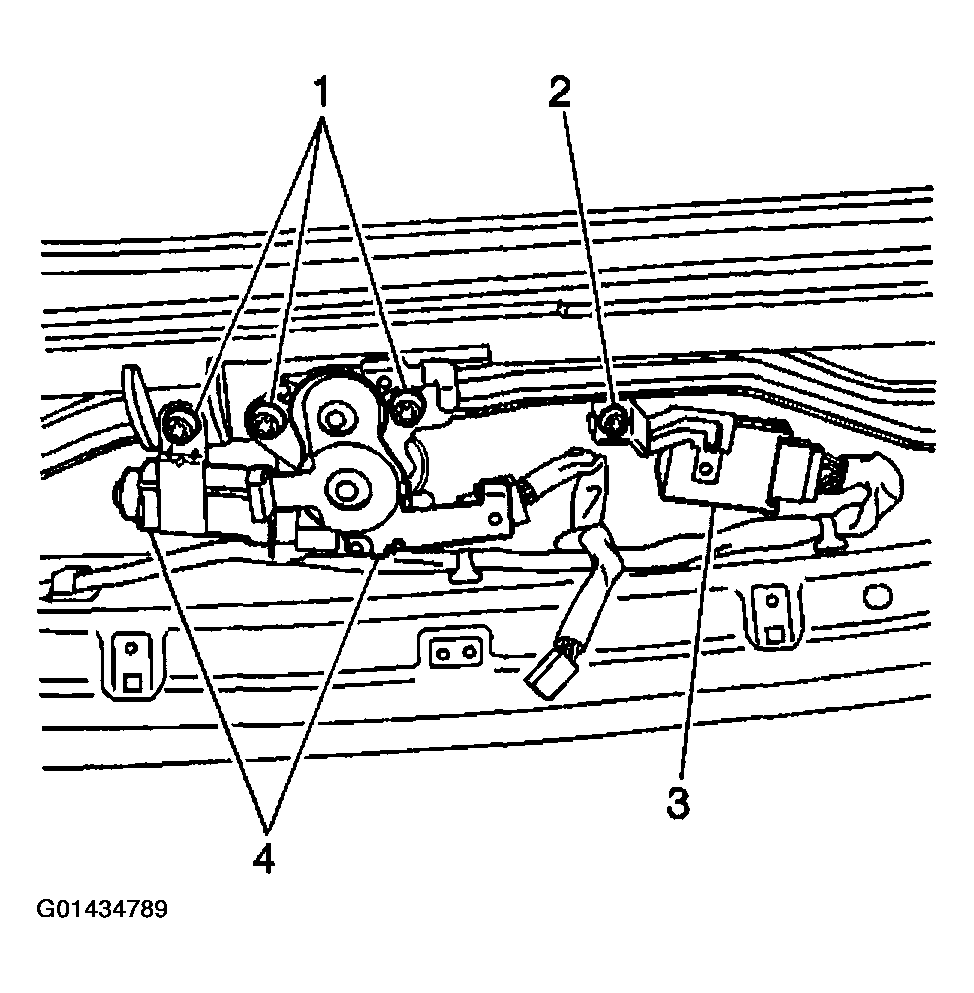

- Remove the following components from the vehicle:
- The 3 bolts (1)
- The sunroof actuator (4)
