Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the sunroof actuator (4) to the vehicle. Secure the actuator with the 3 bolts (1).

    Tighten

  2. Tighten the sunroof actuator bolts to 5.4 N.m (48 lb in).
  3. Connect the sunroof actuator electrical connector.
  4. Install the headlining trim finish panel. Refer to HEADLINER REPLACEMENT in Interior Trim.

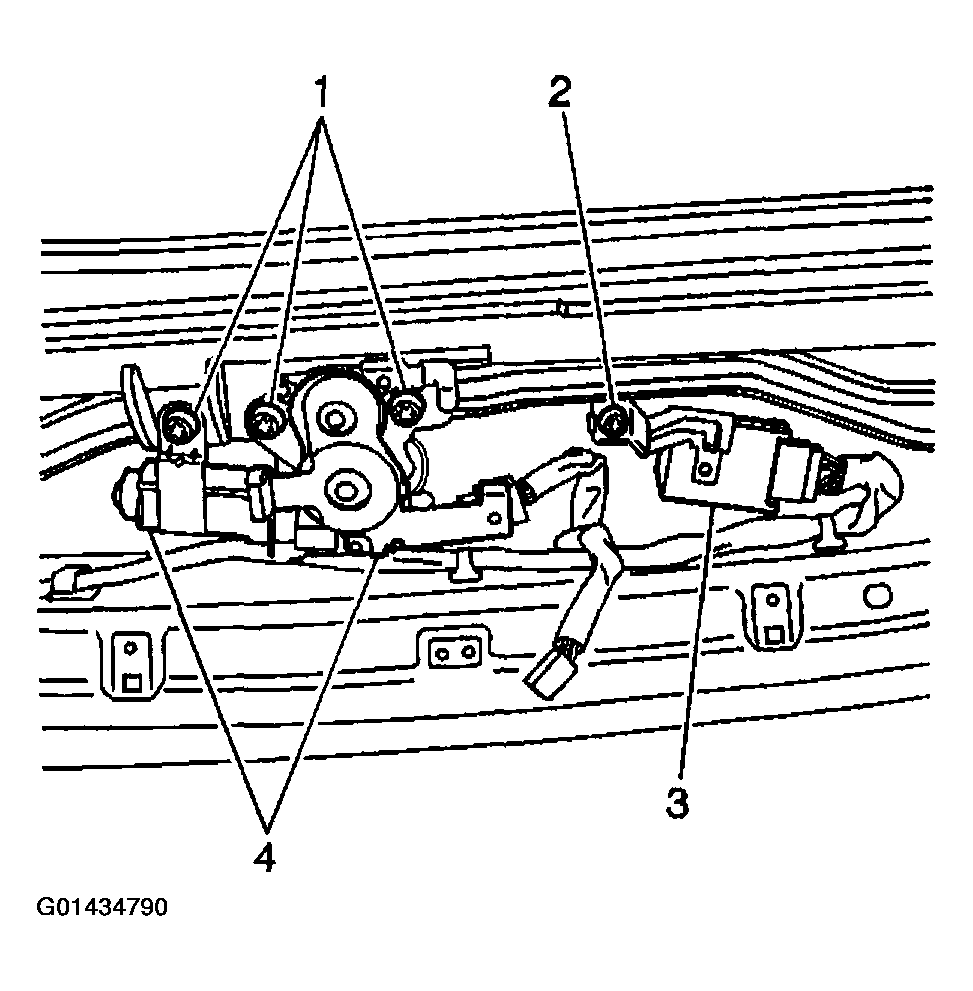

    Fig 1: Removing Sunroof Actuator Bolts
    G01434790Courtesy of GENERAL MOTORS CORP.
