Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tilt the sunroof window into the up position.
  2. Remove the following components from the vehicle:
    • The 2 screws (2) which secure each side of the sunroof window
    • The sunroof window (1)

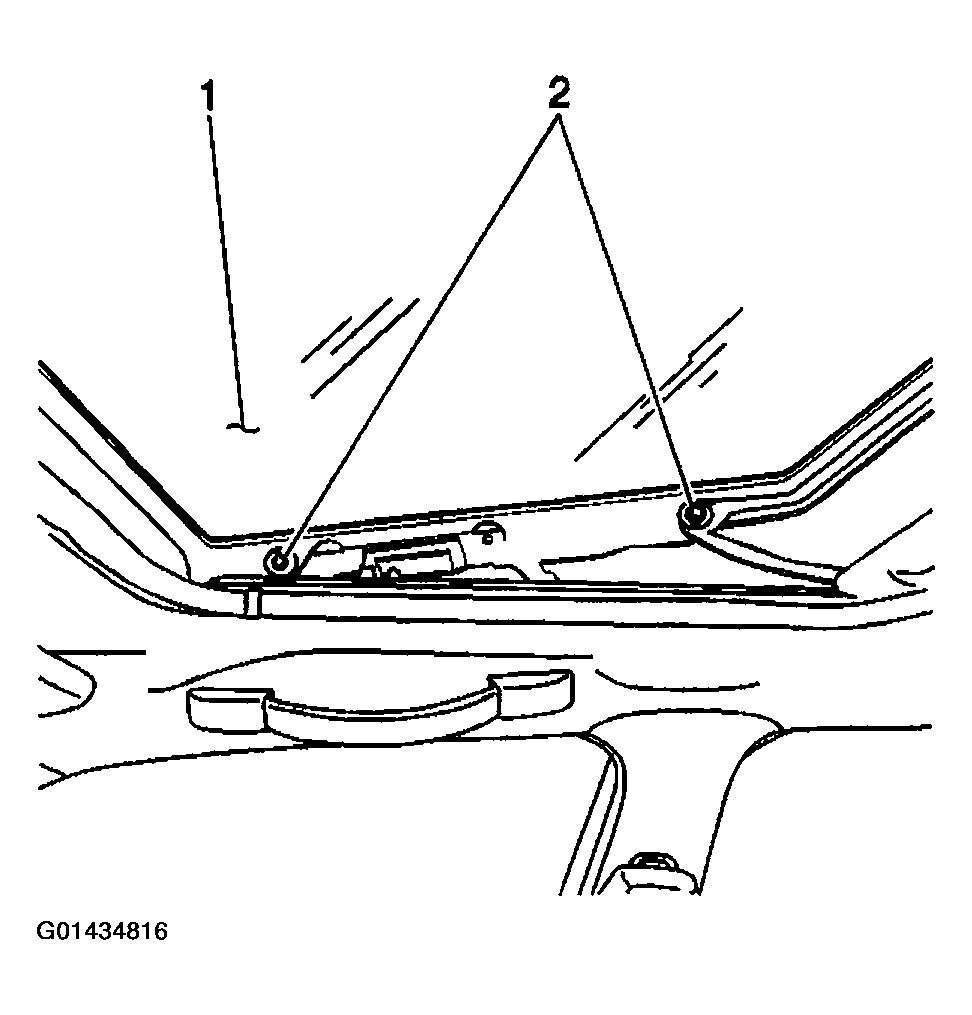

      Fig 1: Removing Screws Securing Each Side Of Sunroof Window - Sunroof Glass Panel
      G01434816Courtesy of GENERAL MOTORS CORP.
