Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sunroof window (1) to the vehicle. Secure each side of the window with the 2 screws (2). Do not tighten fully.
  2. Adjust the sunroof window as necessary. Refer to SUNROOF WINDOW HEIGHT AND OPENING FIT ADJUSTMENT  .

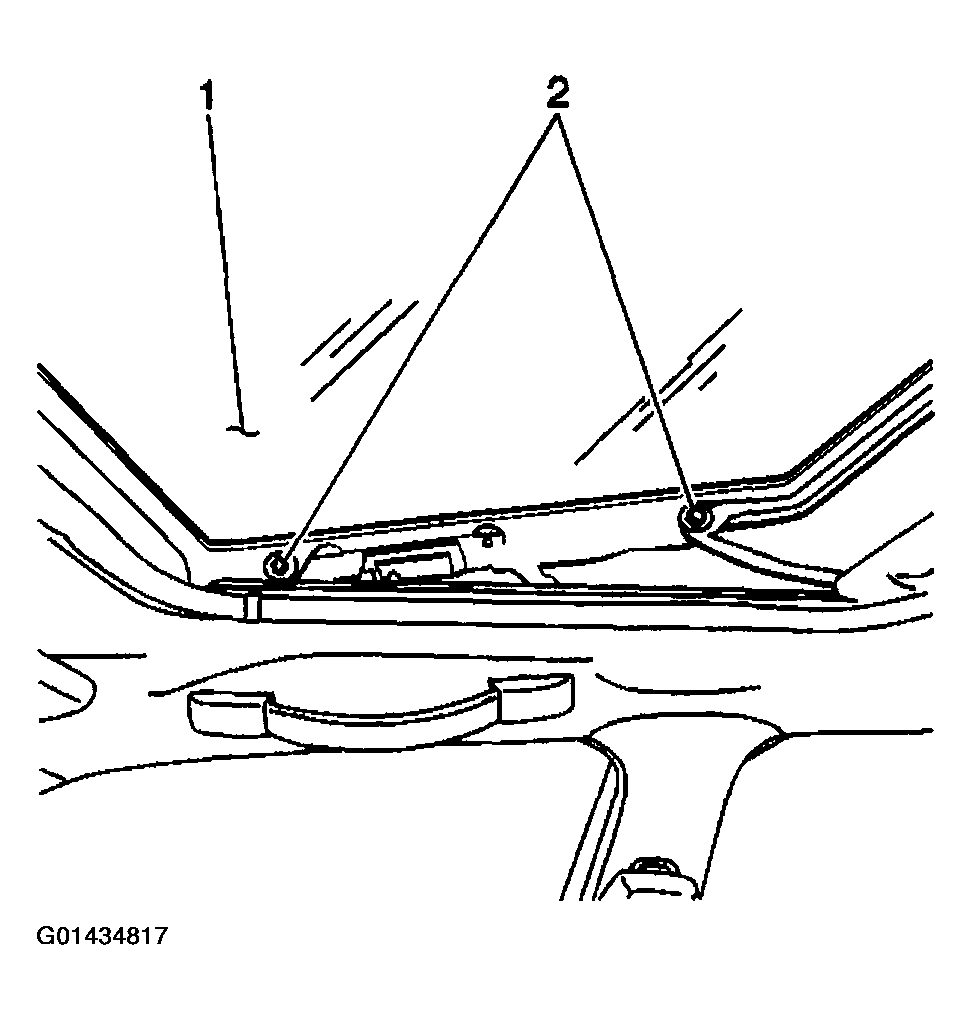

    Fig 1: Installing Sunroof Window To Vehicle And Securing Each Side Of Window With Screws - Sunroof Glass Panel
    G01434817Courtesy of GENERAL MOTORS CORP.
