Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlining trim finish panel. Refer to HEADLINER REPLACEMENT in Interior Trim.
  2. Remove the sunroof housing rear drain hose clamp.
  3. Remove the sunroof housing rear drain hose (2) from the sunroof housing (1).
  4. Remove the lower and upper quarter trim panels. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER and TRIM PANEL REPLACEMENT - REAR QUARTER UPPER in Interior Trim.

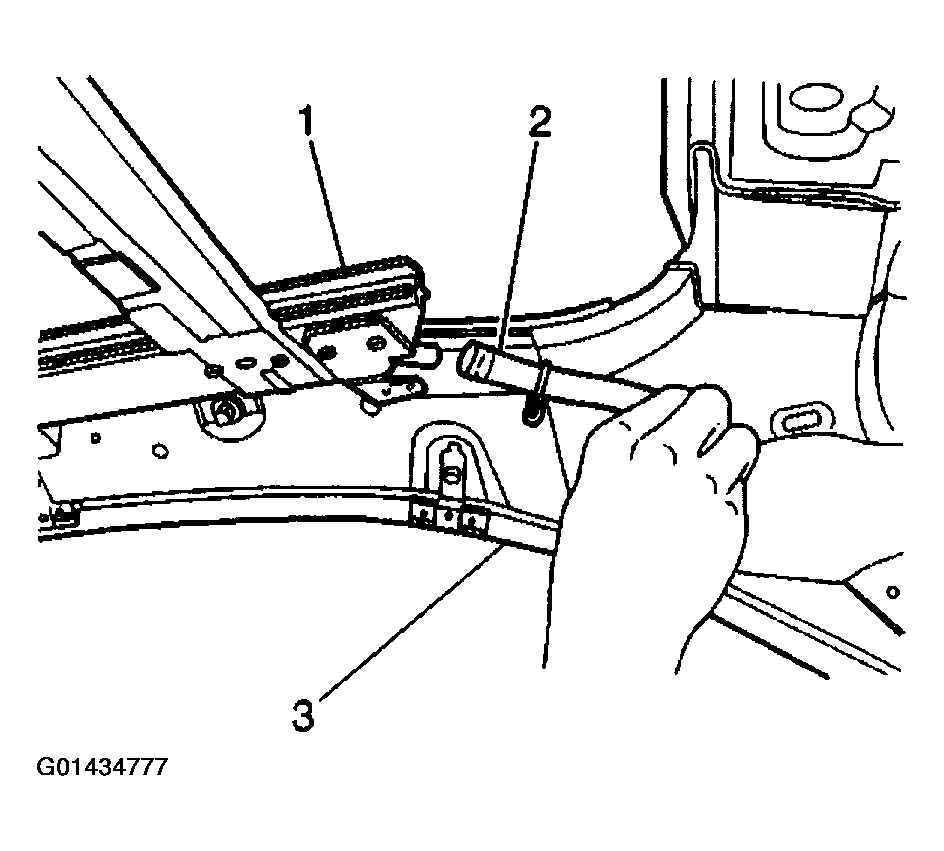

    Fig 1: Removing Sunroof Housing Rear Drain Hose From Sunroof Housing
    G01434777Courtesy of GENERAL MOTORS CORP.
  5. Pull the sunroof housing rear drain hose (1) from the quarter inner panel.
  6. Remove the sunroof rear drain hose grommet (2) from the rear compartment floor pan.
  7. Remove the sunroof housing rear drain hose from the rear compartment.

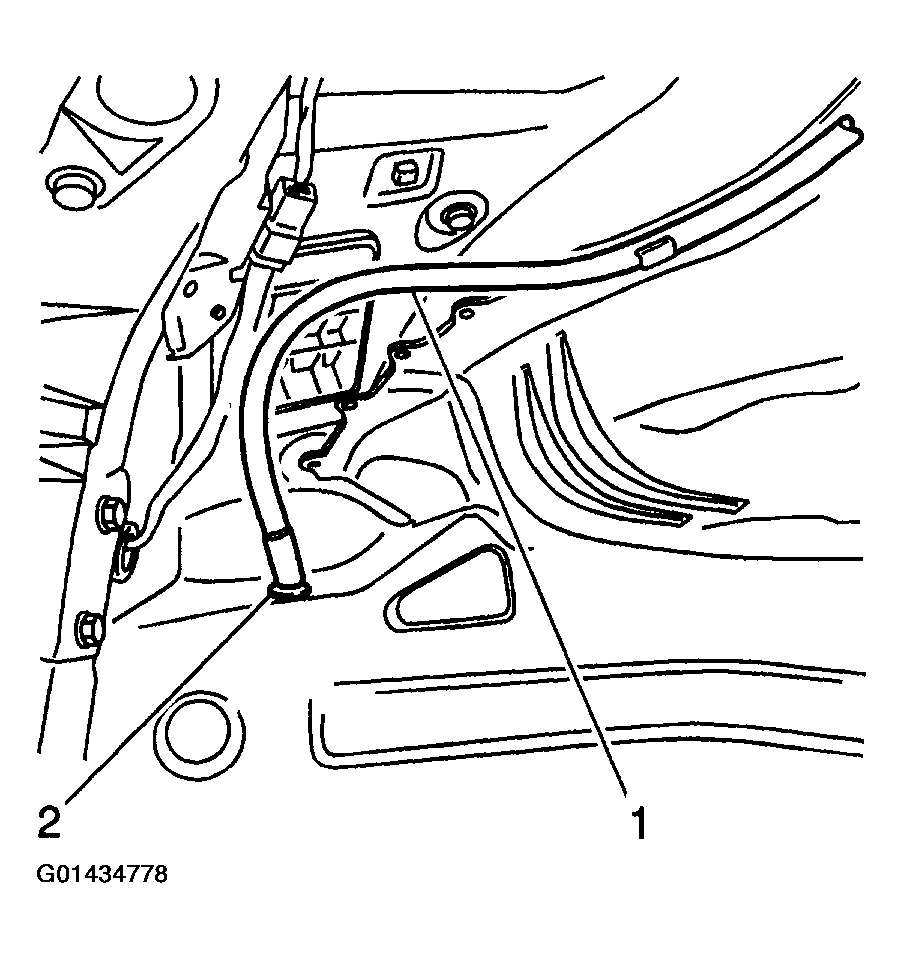

    Fig 2: Pulling Sunroof Housing Rear Drain Hose From Quarter Inner Panel
    G01434778Courtesy of GENERAL MOTORS CORP.
