Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sunroof housing rear drain hose (2) to the sunroof housing (1). Secure the drain hose with the clamp.
  2. Install the headlining trim finish panel. Refer to HEADLINER REPLACEMENT in Interior Trim.

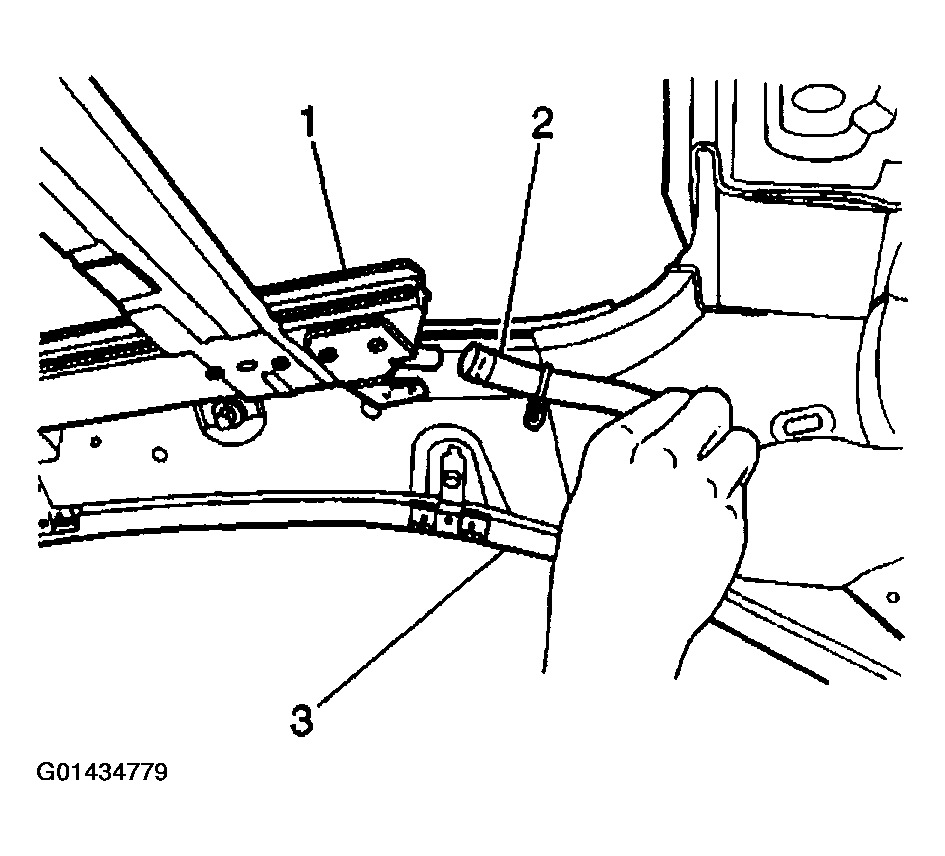

    Fig 1: Removing Sunroof Housing Rear Drain Hose To Sunroof Housing
    G01434779Courtesy of GENERAL MOTORS CORP.
  3. Reposition the sunroof housing rear drain hose (1) in the rear compartment.
  4. Install the sunroof rear drain hose grommet (2) to the rear compartment floor pan.
  5. Install the lower and upper quarter trim panels. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER and TRIM PANEL REPLACEMENT - REAR QUARTER UPPER in Interior Trim.

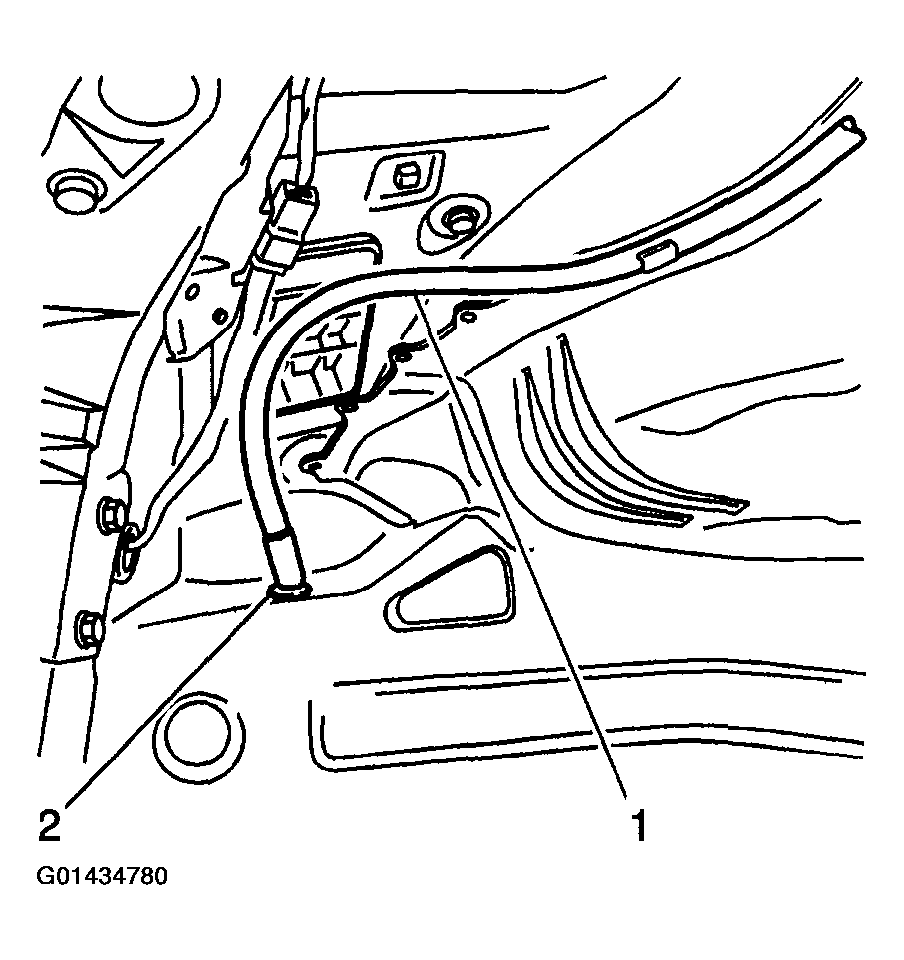

    Fig 2: Repositioning Sunroof Housing Rear Drain Hose In Rear Compartment
    G01434780Courtesy of GENERAL MOTORS CORP.
