Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlining trim finish panel. Refer to HEADLINER REPLACEMENT in Interior Trim.
  2. Remove the sunroof housing front drain hose clamp.
  3. Remove the sunroof housing front drain hose (2) from the sunroof housing (1).
  4. Remove the sunroof housing front drain hose (2) from the vehicle, by pulling the hose up through the body hinge pillar panel (3).
    Fig 1: Removing Sunroof Housing Front Drain Hose From Sunroof Housing
    G01434771Courtesy of GENERAL MOTORS CORP.
  5. Remove the body hinge pillar trim panel. Refer to TRIM REPLACEMENT - HINGE PILLAR in Interior Trim.
  6. Remove the connector cavity (2) from the lower portion of the body hinge pillar panel (1).

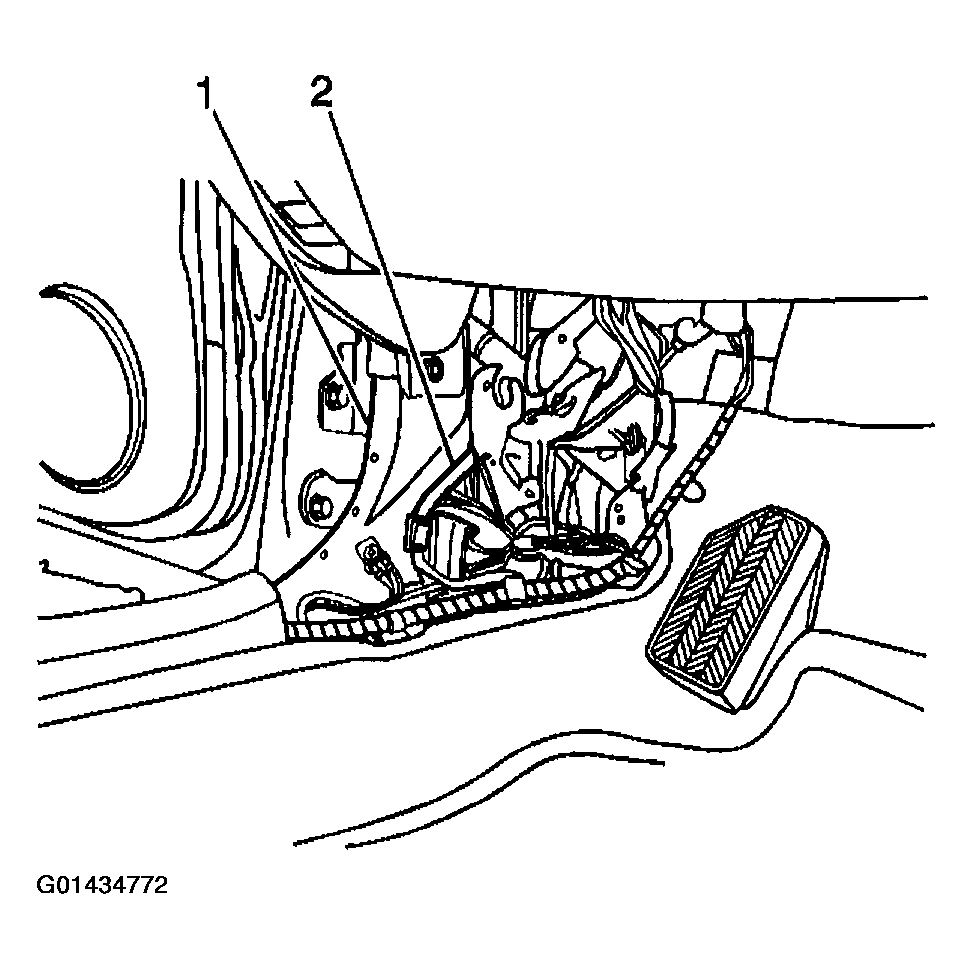

    Fig 2: Removing Connector Cavity From Lower Portion Of Body Hinge Pillar Panel
    G01434772Courtesy of GENERAL MOTORS CORP.
