Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

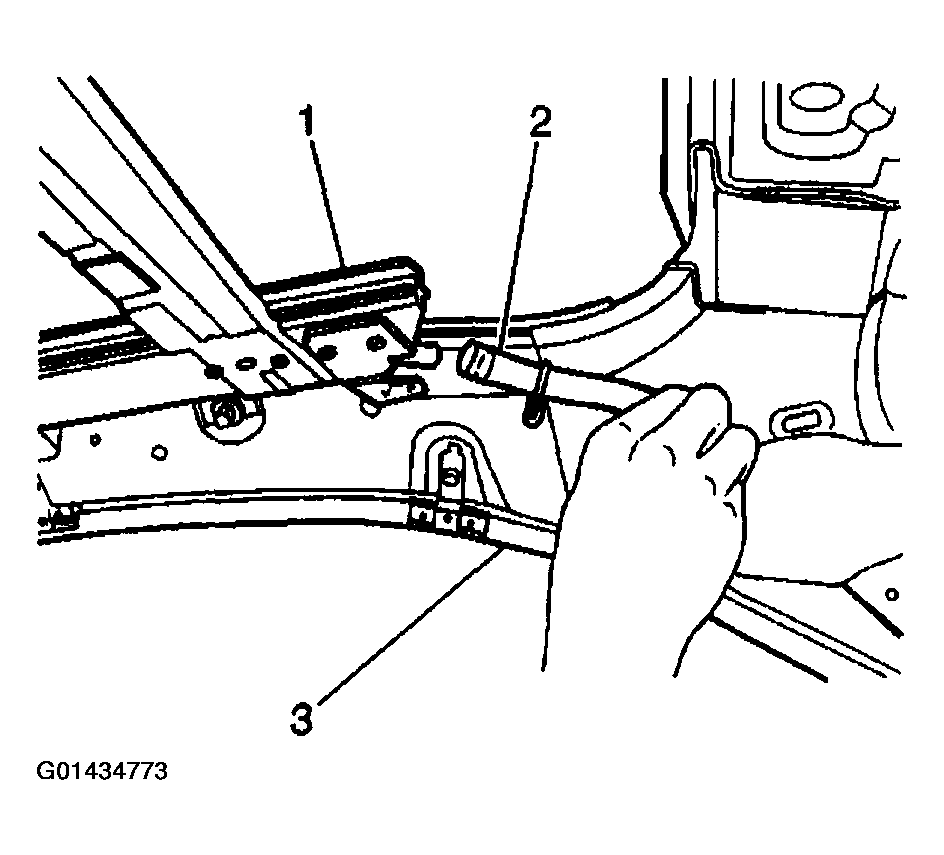

  1. Install the sunroof housing front drain hose (2) to the vehicle, by routing the hose down through the body hinge pillar panel (3).
    Fig 1: Installing Sunroof Housing Front Drain Hose To Vehicle
    G01434773Courtesy of GENERAL MOTORS CORP.

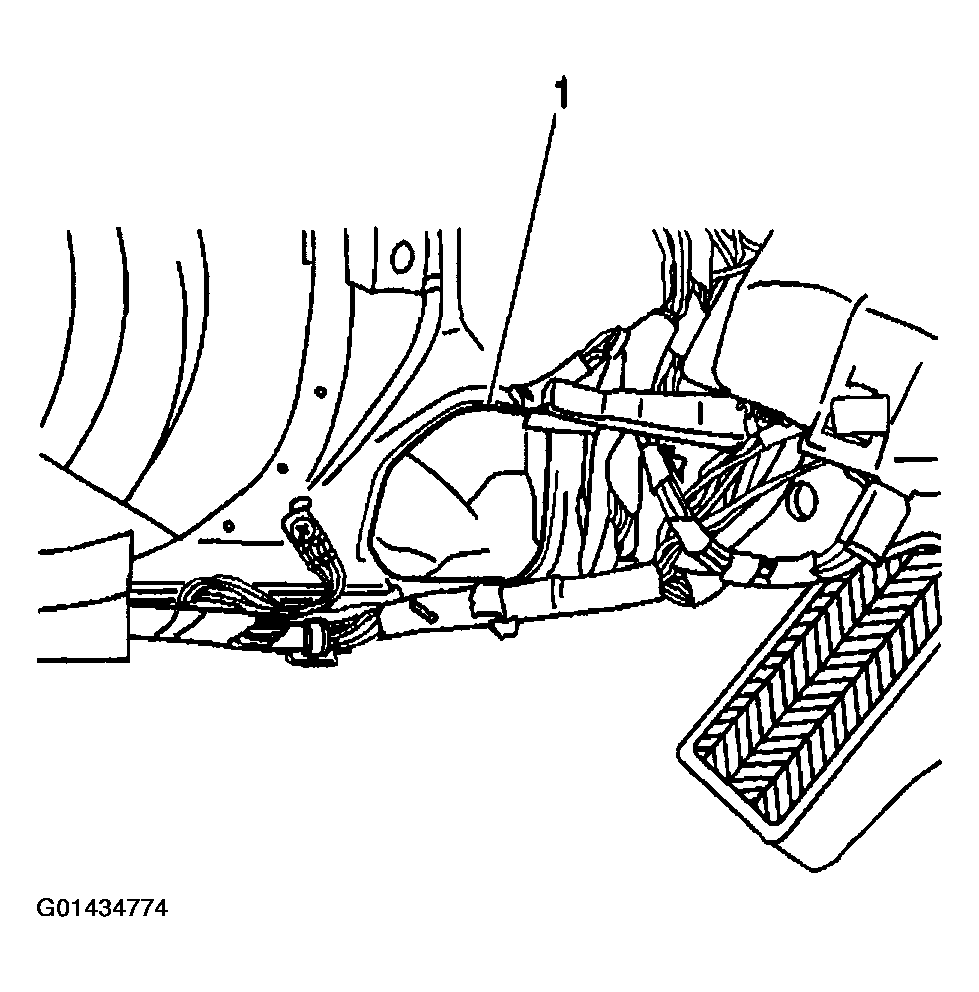

  2. Make sure that the drain hose is in the correctly seated position in the lower portion of the body hinge pillar panel by positioning the hose through the access hole (1).
    Fig 2: Positioning Hose Through Access Hole
    G01434774Courtesy of GENERAL MOTORS CORP.

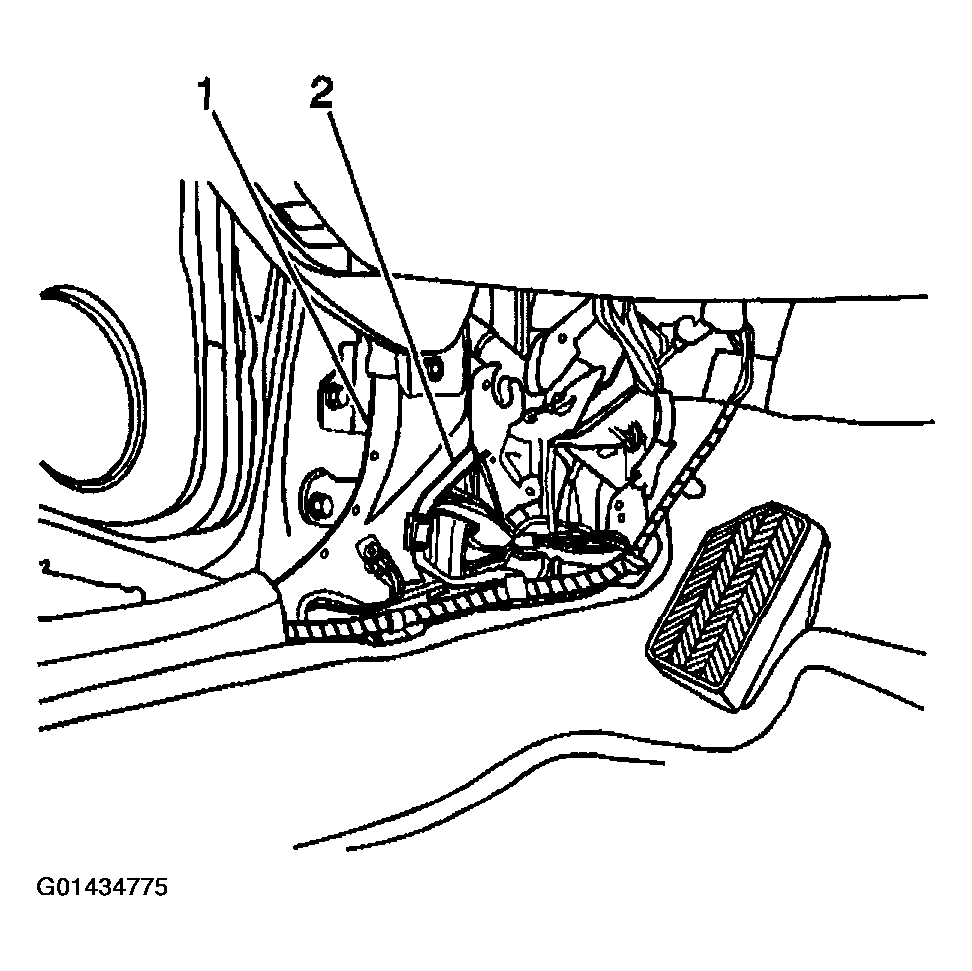

  3. Install the connector cavity (2) to the lower portion of the body hinge pillar panel (1).
    Fig 3: Installing Connector Cavity To Lower Portion Of Body Hinge Pillar Panel
    G01434775Courtesy of GENERAL MOTORS CORP.
  4. Install the body hinge pillar trim panel. Refer to TRIM REPLACEMENT - HINGE PILLAR in Interior Trim.
  5. Install the sunroof housing front drain hose (2) to the sunroof housing (1). Secure the drain hose with the clamp.
  6. Install the headlining trim finish panel. Refer to HEADLINER REPLACEMENT in Interior Trim.
    Fig 4: Installing Sunroof Housing Front Drain Hose To Sunroof Housing
    G01434776Courtesy of GENERAL MOTORS CORP.
