Symptom List

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the symptom diagnostic procedure from the following list in order to diagnose the symptom:

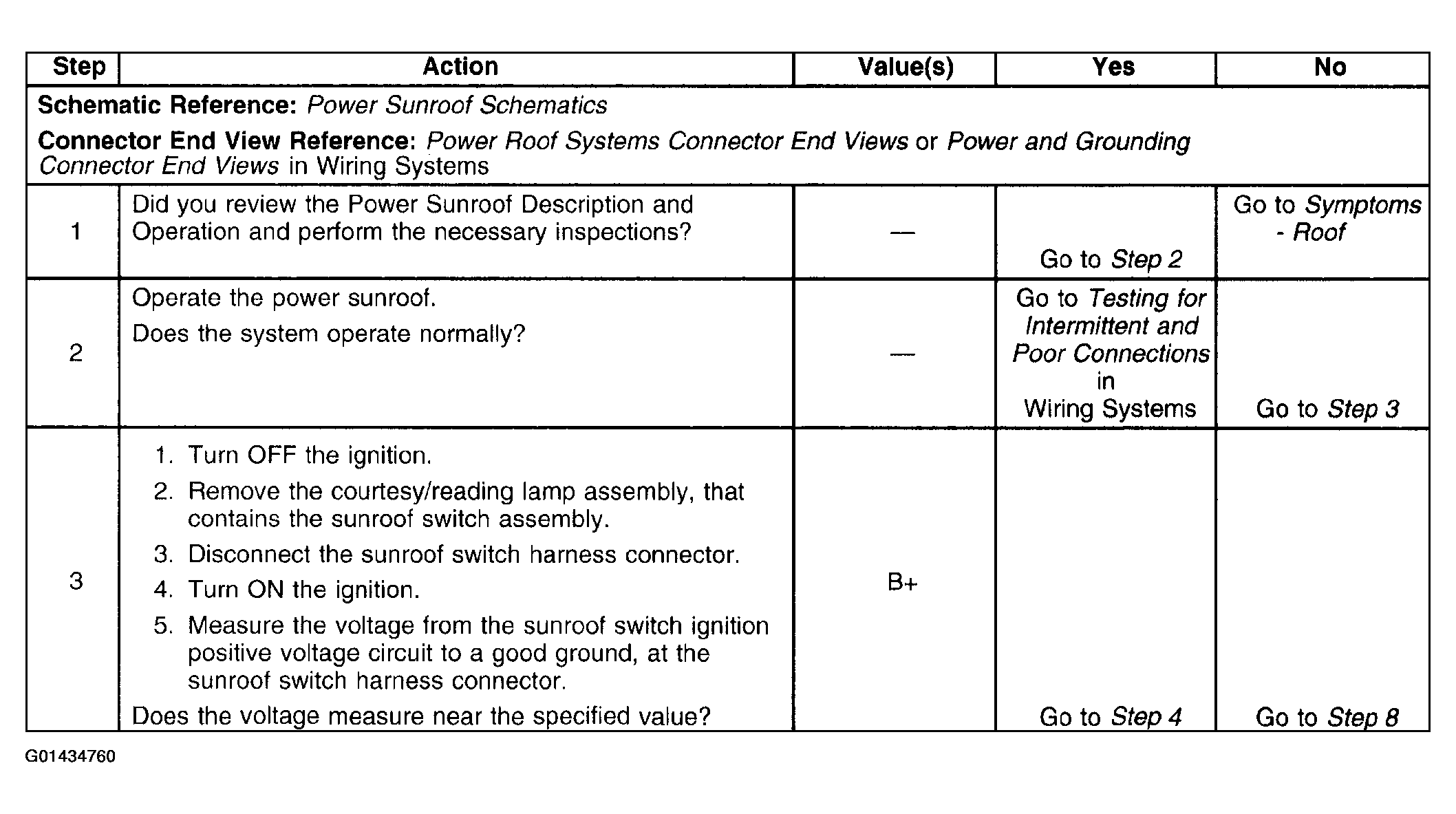

Fig 1: Power Sunroof Inoperative Diagnostics Tests (Steps 1 To 3)
G01434760Courtesy of GENERAL MOTORS CORP.

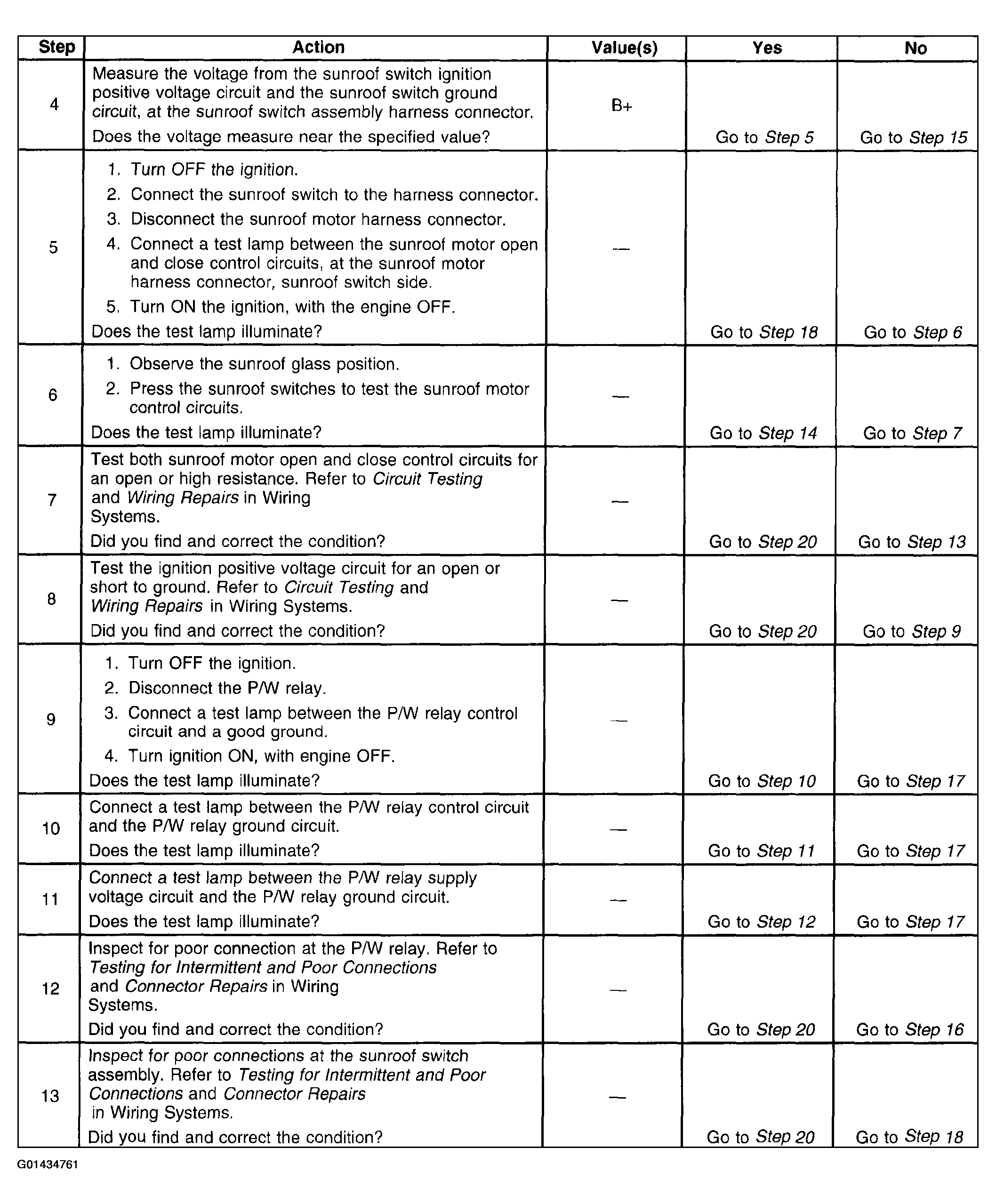

Fig 2: Power Sunroof Inoperative Diagnostics Tests (Steps 4 To 13)
G01434761Courtesy of GENERAL MOTORS CORP.
Fig 3: Power Sunroof Inoperative Diagnostics Tests (Steps 14 To 20)
G01434762Courtesy of GENERAL MOTORS CORP.
