Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear side door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR  .
  2. Remove the window guide channel from the rear door. Refer to WINDOW GUIDE REPLACEMENT - DOOR  .
  3. Disconnect the power window motor electrical connector, if equipped.
  4. Remove the 4 bolts (4) that retain the regulator (3).
  5. Slide the regulator arm roller (2) out of the window bottom channel (1).
  6. Lift and remove the window from the rear door.

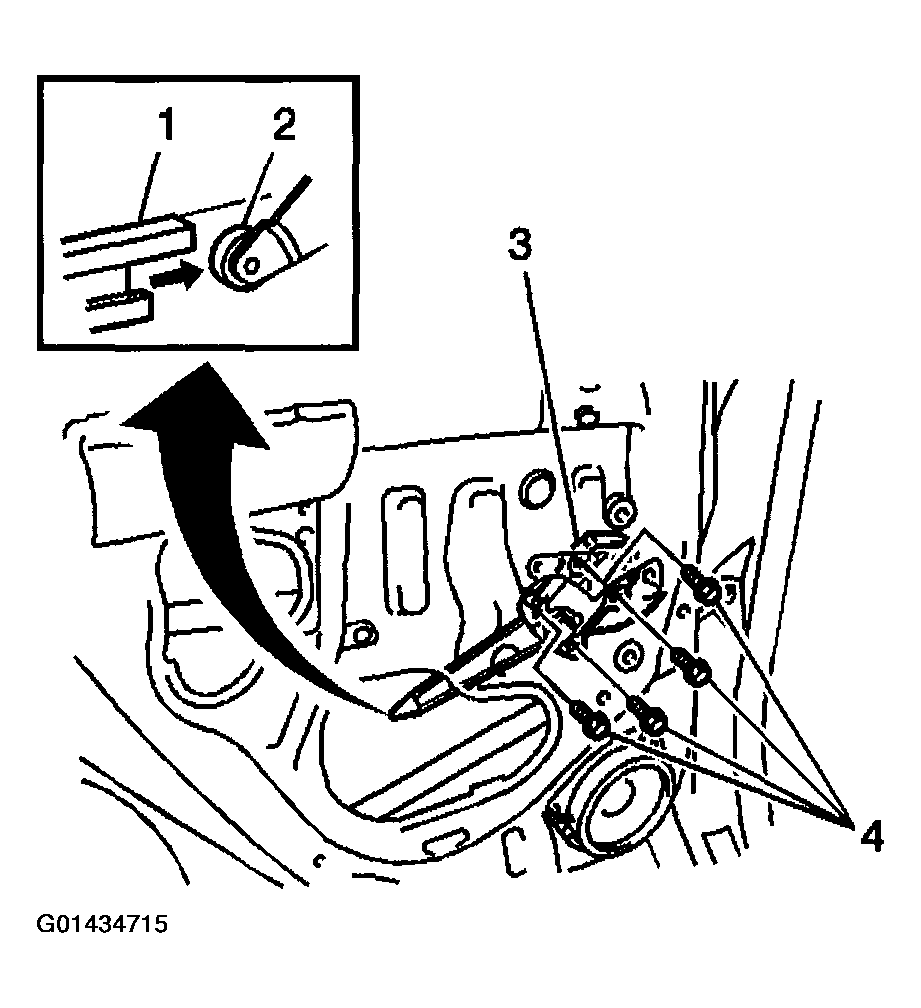

    Fig 1: Sliding Regulator Arm Roller Out Of Rear Window Bottom Channel
    G01434715Courtesy of GENERAL MOTORS CORP.
