Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front side door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  2. Remove the 3 screws (1) and the access shield (2) from the door (3), if equipped.

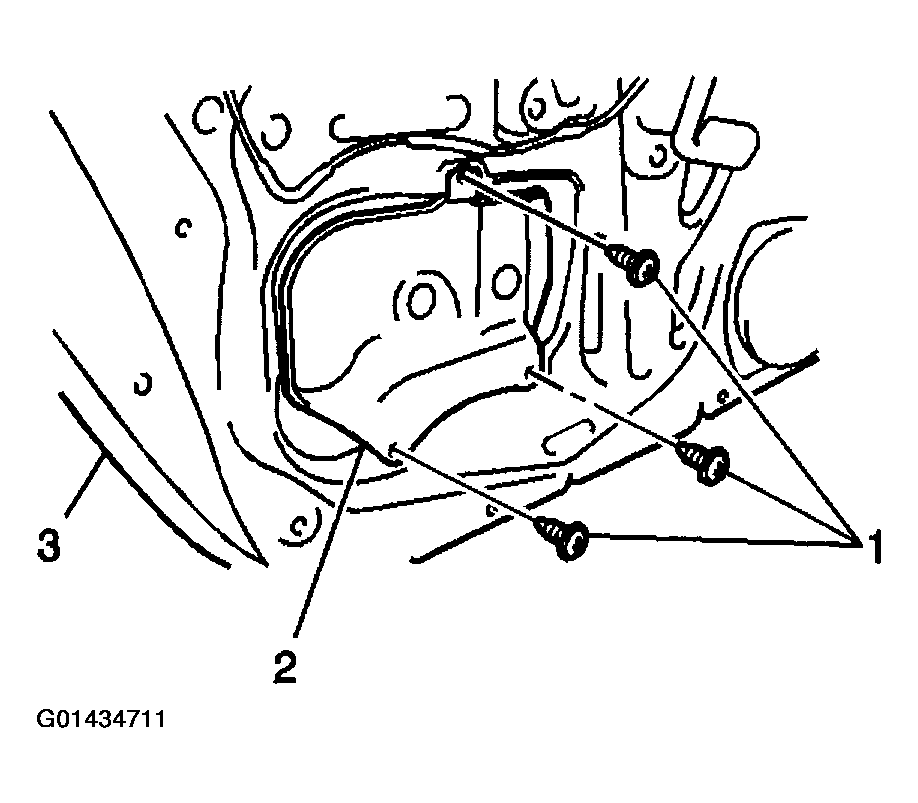

    Fig 1: Removing Screws And Access Shield From Front Door
    G01434711Courtesy of GENERAL MOTORS CORP.
  3. Remove the 2 window-to-regulator bolts (2).
  4. Remove the window (1) by pulling up and out of the door.

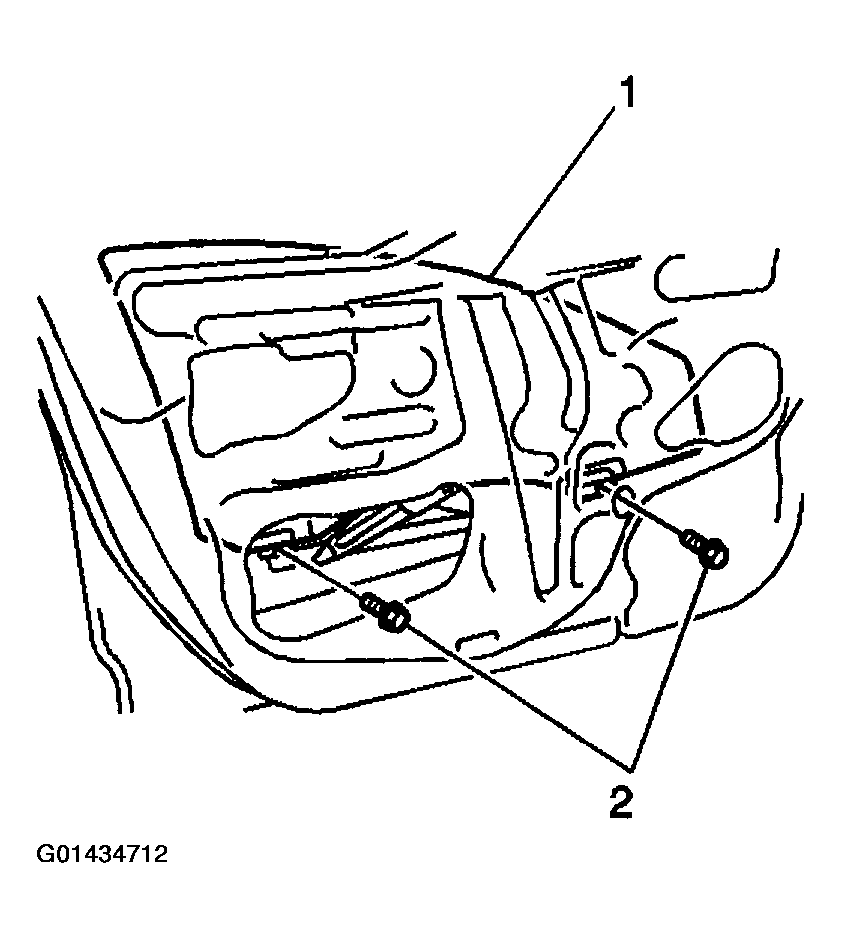

    Fig 2: Removing Window-To-Regulator Bolts
    G01434712Courtesy of GENERAL MOTORS CORP.
