Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door window. Refer to WINDOW REPLACEMENT - REAR DOOR  .
  2. Remove the following components from the rear door:
    • The 4 retaining bolts (4)
    • The rear side door window regulator (3)

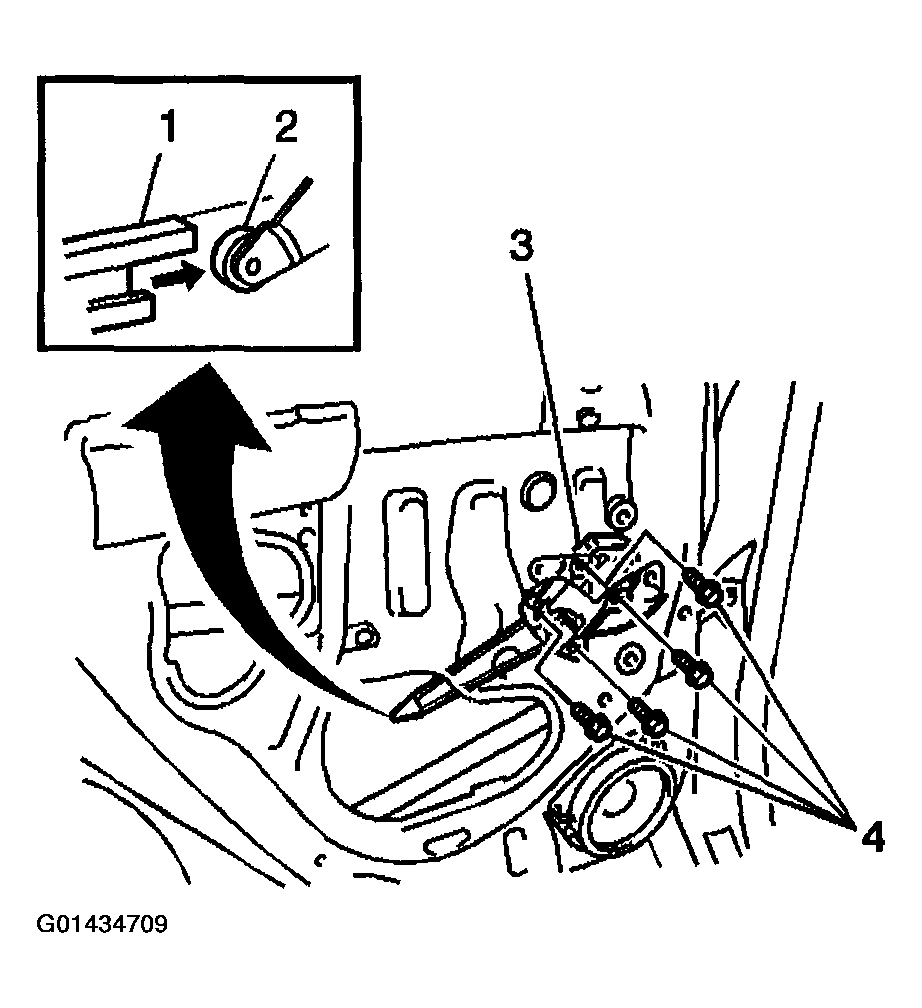

      Fig 1: Removing Rear Door Window Regulator Bolts
      G01434709Courtesy of GENERAL MOTORS CORP.
