Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  2. Disconnect the power window motor electrical connector, if equipped.
  3. Remove the following components from the door:
    • The 6 bolts (1)
    • The window regulator (2)

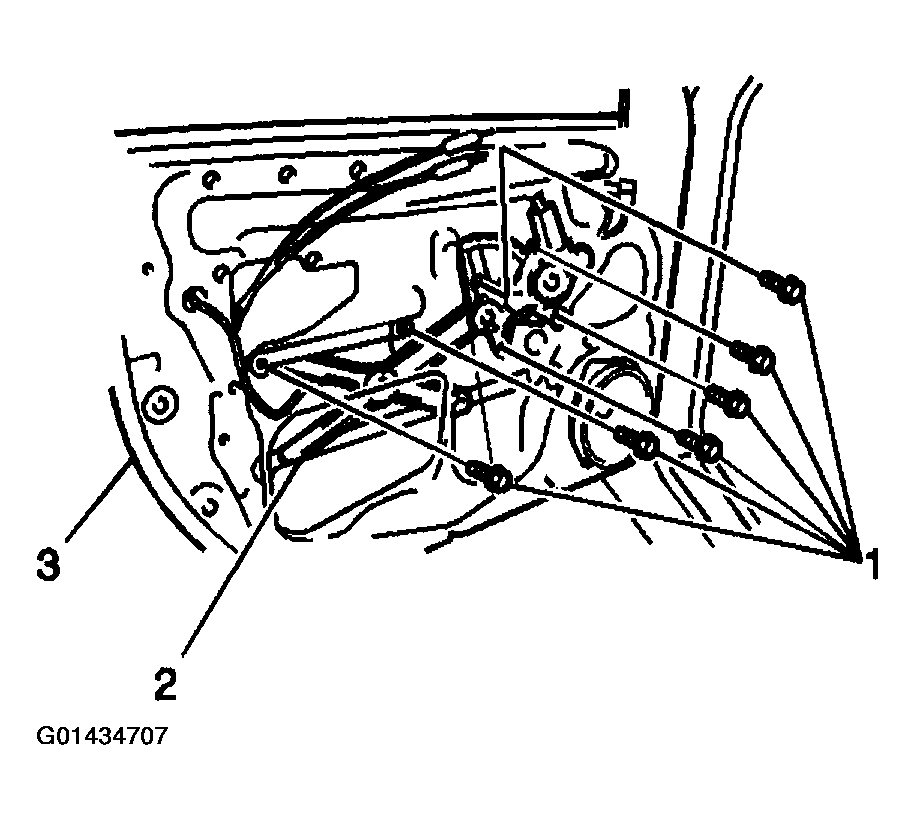

      Fig 1: Removing Front Door Window Regulator Bolts
      G01434707Courtesy of GENERAL MOTORS CORP.
