Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the window.
  2. Remove the rear side door trim. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
  3. Remove the water deflector (3) from the rear door.

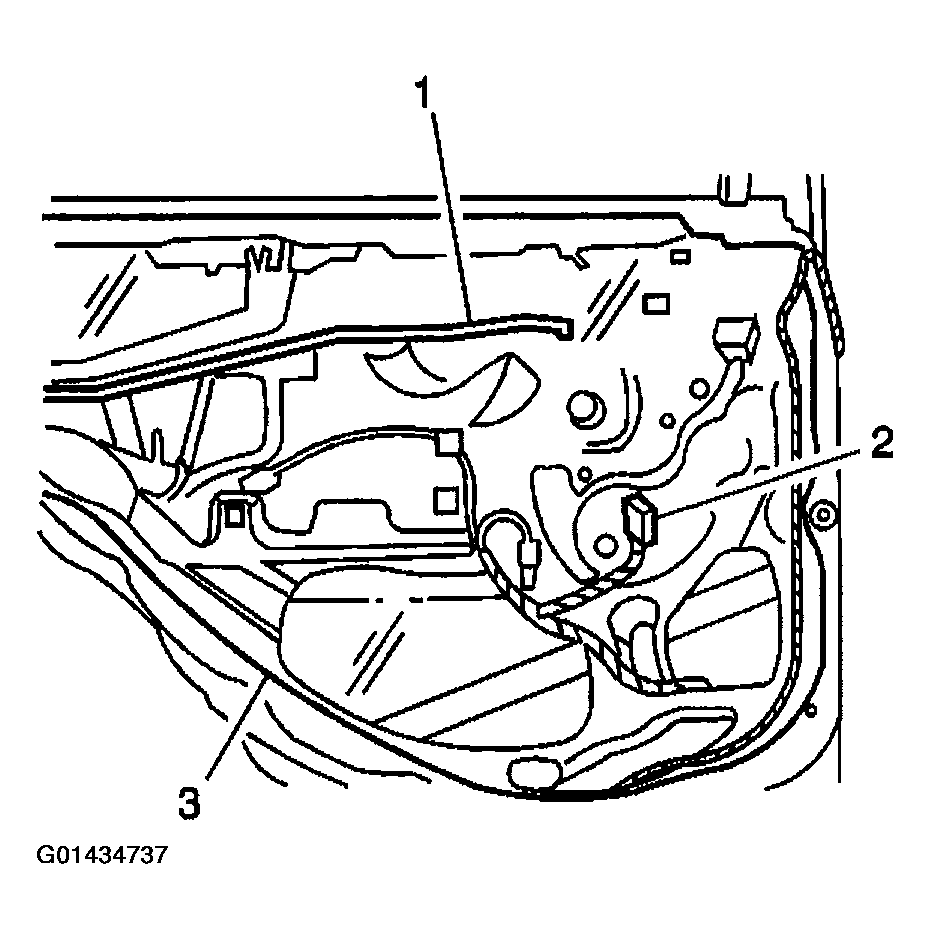

    Fig 1: Removing Water Deflector From Rear Door
    G01434737Courtesy of GENERAL MOTORS CORP.
  4. Remove the window run channel weatherstrip (2) from the guide channel.

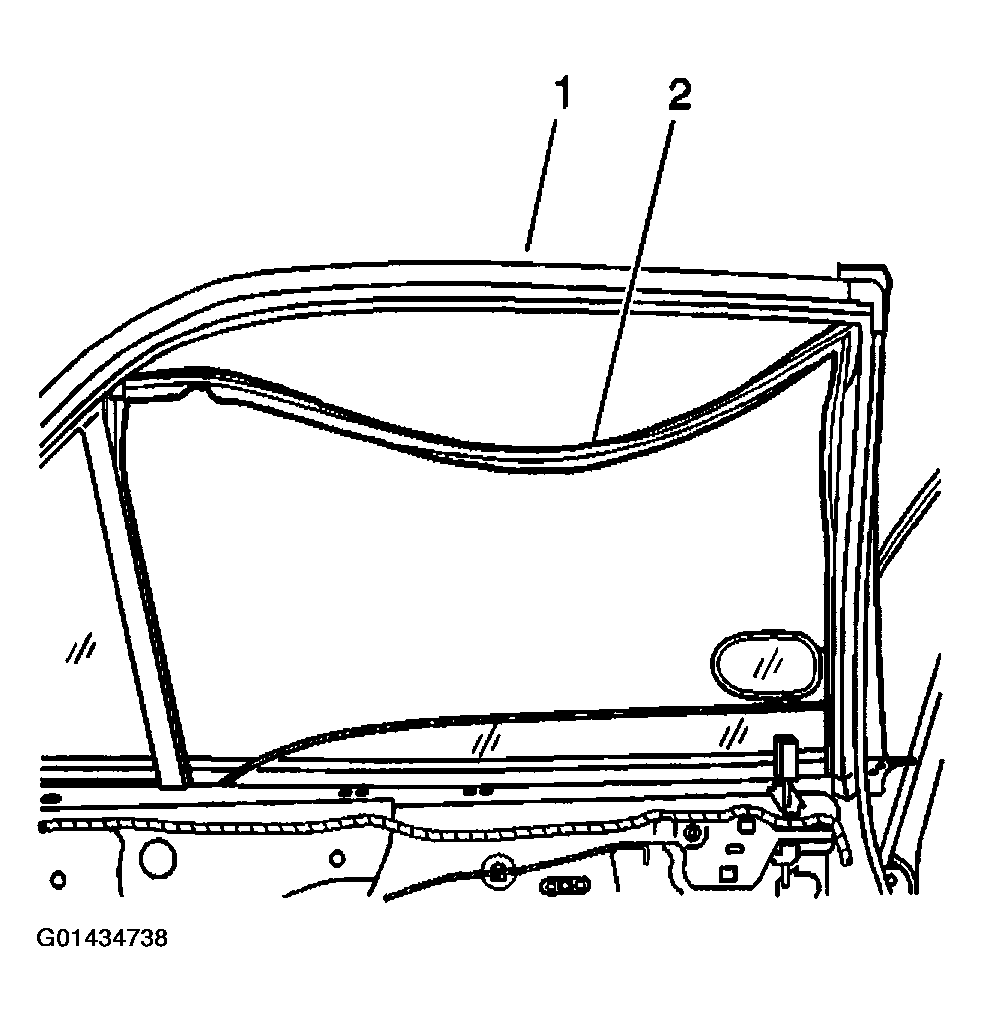

    Fig 2: Removing Window Run Channel Weatherstrip From Guide Channel
    G01434738Courtesy of GENERAL MOTORS CORP.
