Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear sill plate (3) from the vehicle.
  2. Pull the rear door opening weatherstrip (1) loose from the door opening flange (2).
  3. Remove the weatherstrip (1) from the vehicle.

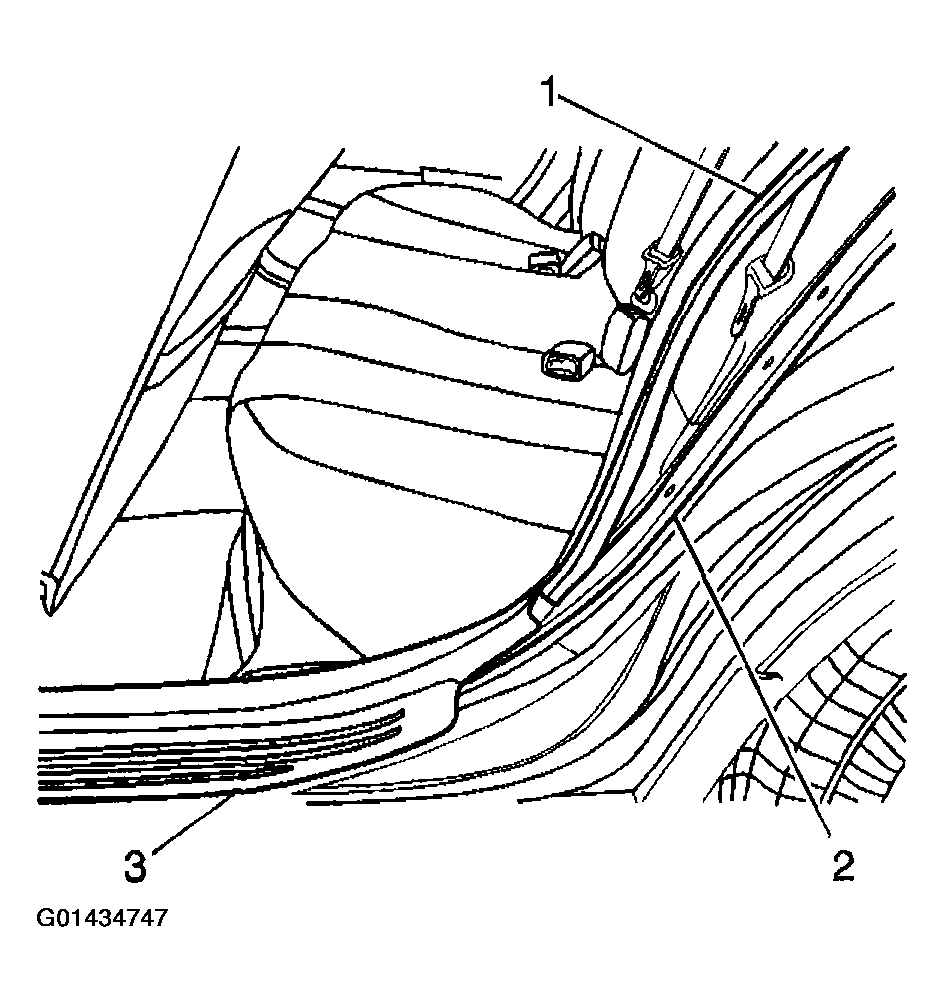

    Fig 1: Pulling Rear Door Opening Weather-Strip Loose From Door Opening Flange
    G01434747Courtesy of GENERAL MOTORS CORP.
