Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Open the door.
Remove the bolt (3) that retains the front door check link (2) to the door jamb.

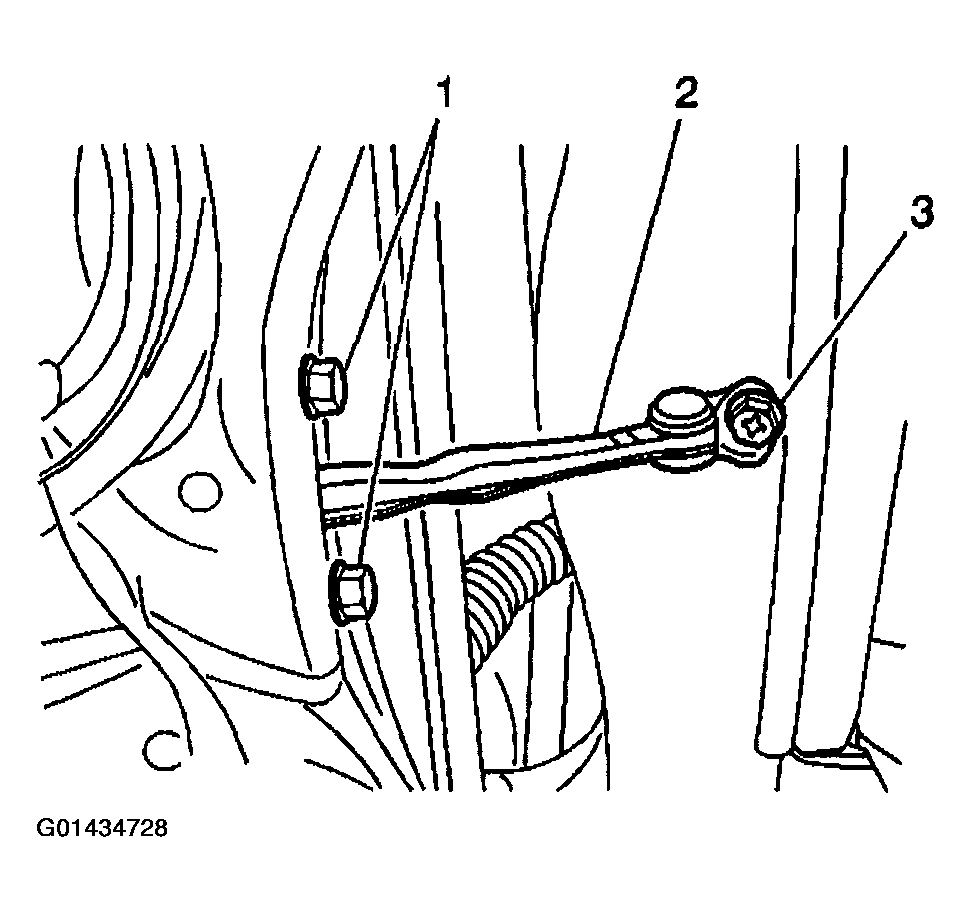

Fig 1: Removing Bolt Retaining Front Door Check Link To Door Jamb
Courtesy of GENERAL MOTORS CORP.
Remove the following components from the door (3):
- The front door weatherstrip (2)
- The plastic retainers (1)

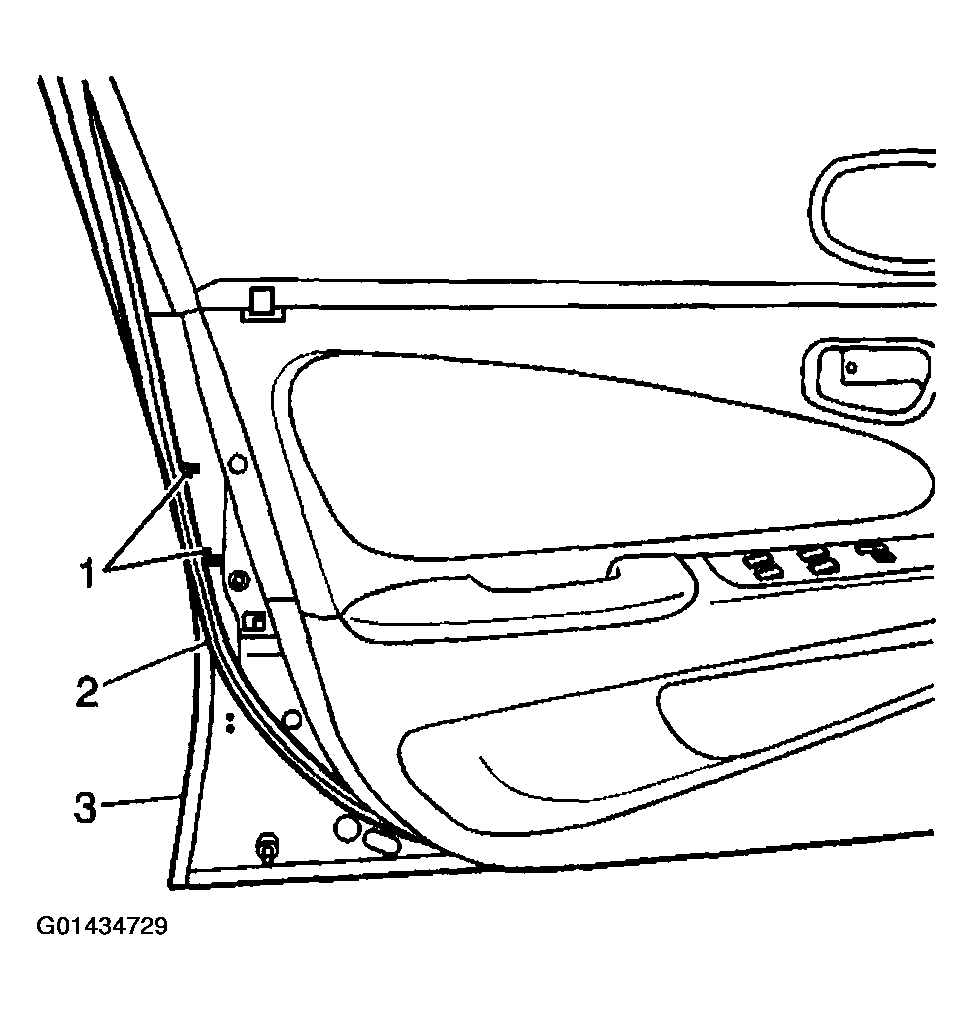

Fig 2: Removing Front Door Weatherstrip And Plastic Retainers

Courtesy of GENERAL MOTORS CORP.
