Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the window.
  2. Remove the front side door trim. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  3. Remove the water deflector (3) from the front door (4).

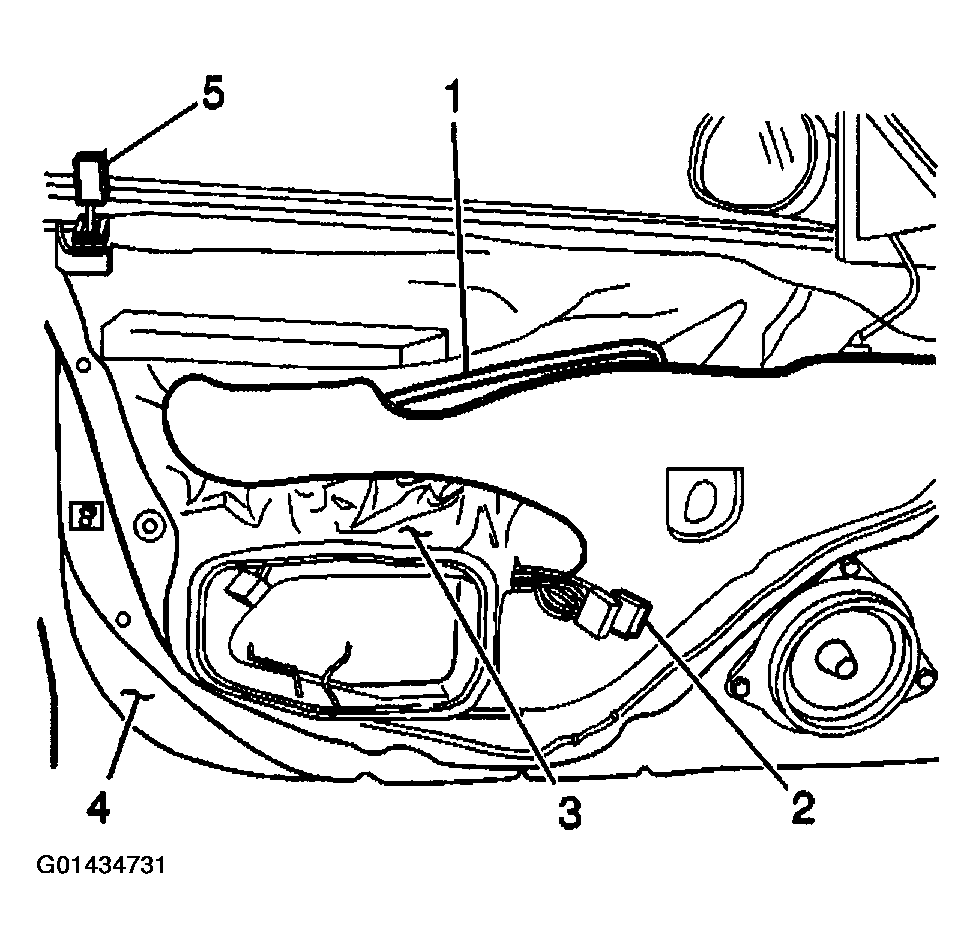

    Fig 1: Removing Water Deflector From Front Door
    G01434731Courtesy of GENERAL MOTORS CORP.
  4. Unclip and remove the inner mirror garnish (2) from the door.

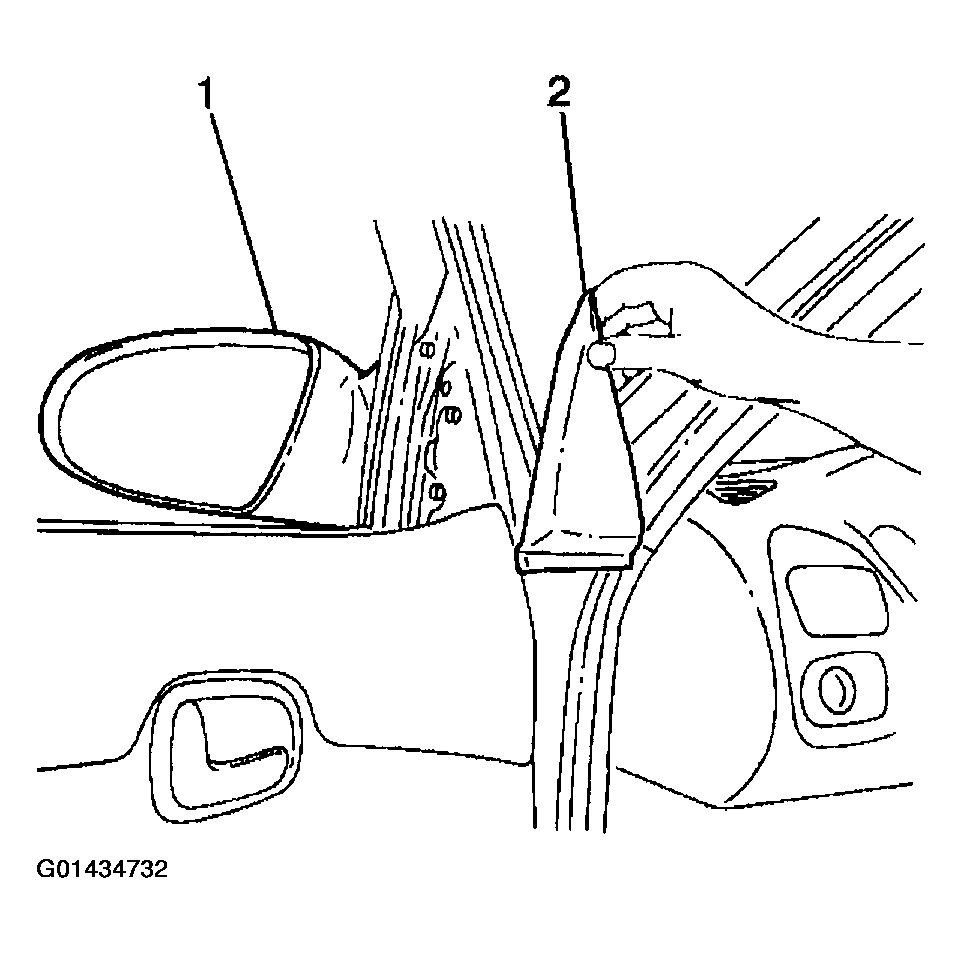

    Fig 2: Un-clipping And Removing Inner Mirror Garnish From Door
    G01434732Courtesy of GENERAL MOTORS CORP.
  5. Remove the window run channel weatherstrip (2) from the guide channel.

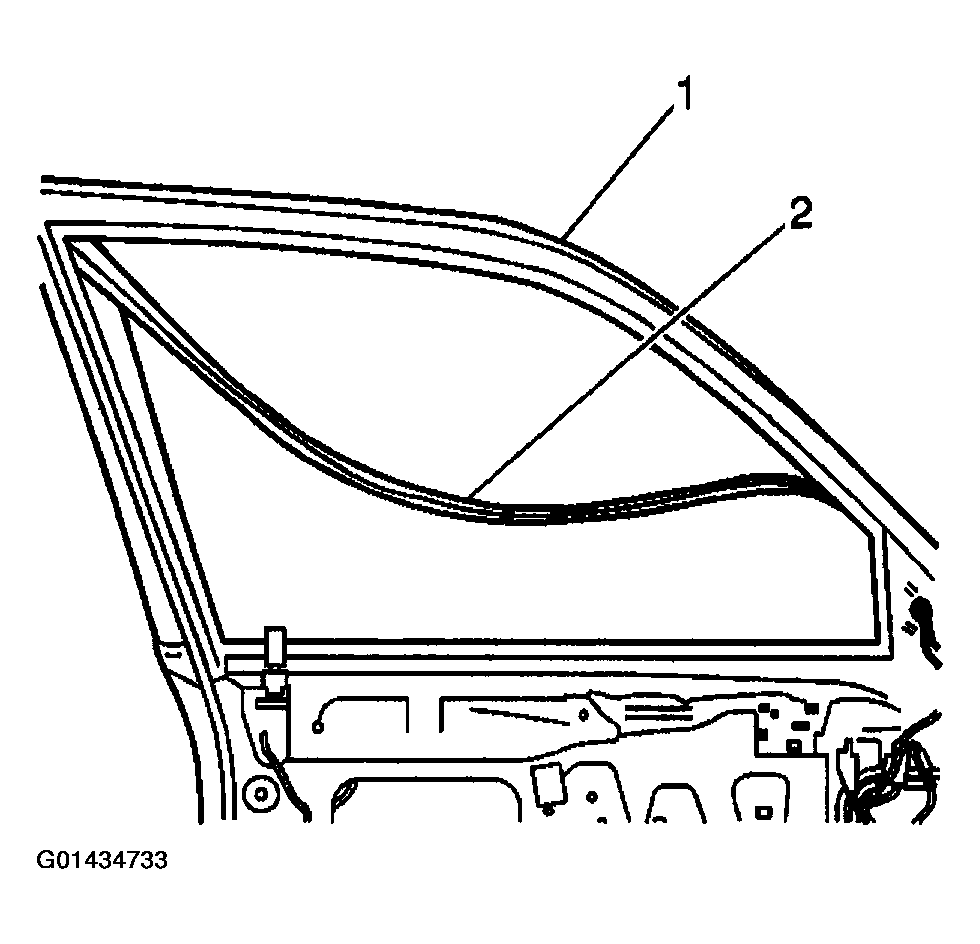

    Fig 3: Removing Window Run Channel Weatherstrip From guide channel
    G01434733Courtesy of GENERAL MOTORS CORP.
