Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door sill plate trim panel.
  2. Remove hinge pillar trim panel.
  3. Pull the front door opening weather-strip (2) loose from the door flange (1).
  4. Remove the weather-strip (2) from the vehicle.

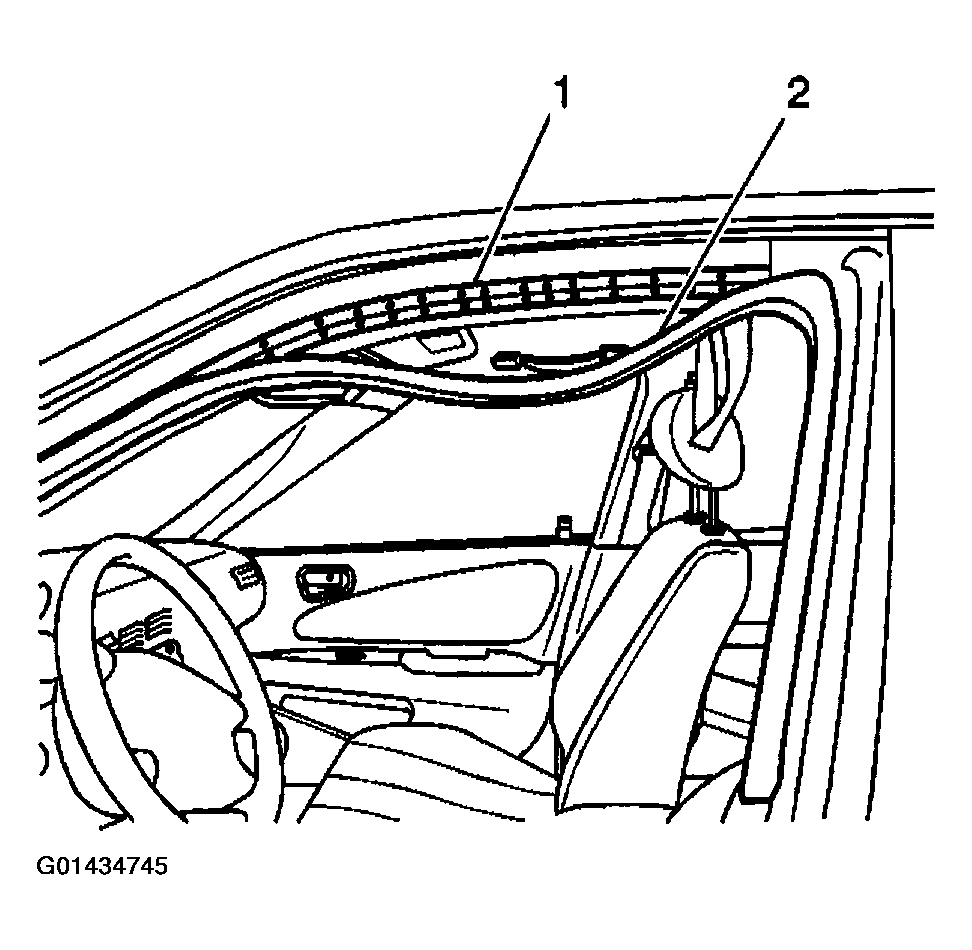

    Fig 1: Pulling Front Door Opening Weather-Strip Loose From Door Flange
    G01434745Courtesy of GENERAL MOTORS CORP.
