Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear side door trim. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
  2. Starting at the top, pull downward on the rear side door water deflector (3) in order to remove from the door edges.
  3. Un-route the electrical connector (2) and the rear side door inside handle rod (1) from the water deflector (3), while removing the deflector from the vehicle.

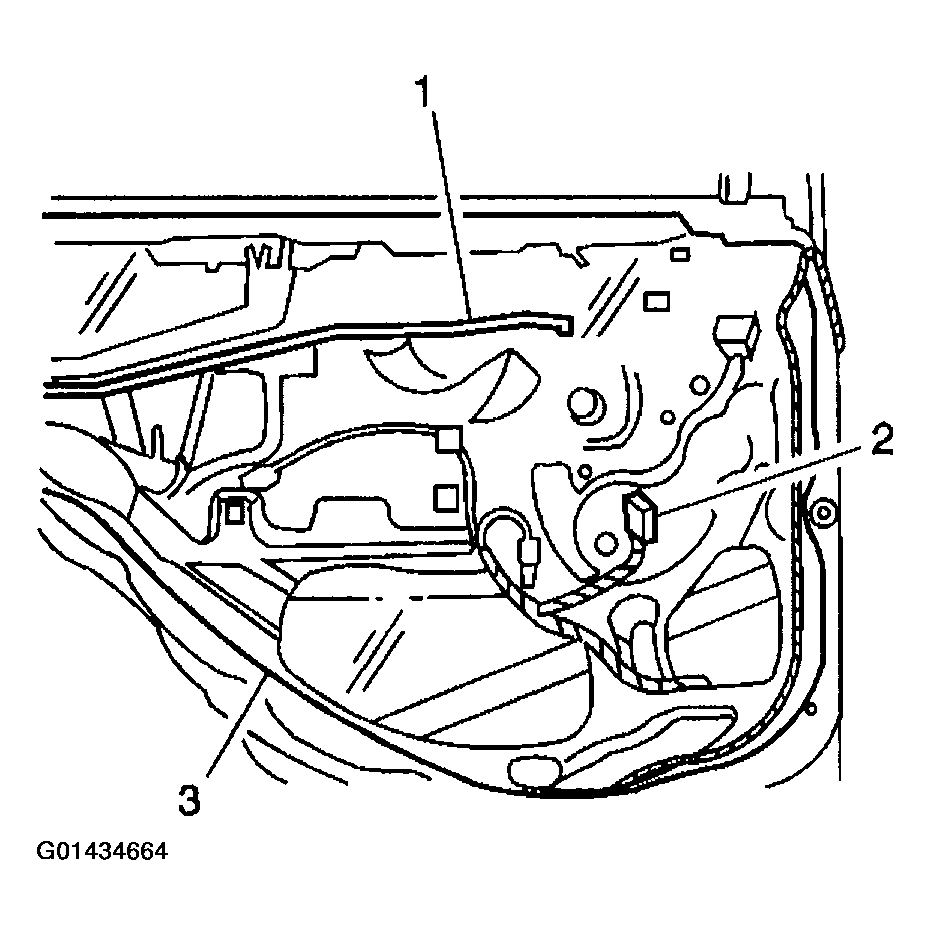

    Fig 1: Un-routing Electrical Connector And Rear Side Door Inside Handle Rod From Water Deflector
    G01434664Courtesy of GENERAL MOTORS CORP.
