Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front side door trim. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove the 6 screws and the trim bracket.
  3. Starting at the top, pull downward on the front side door water deflector in order to remove from the door edges.
  4. Un-route any electrical connectors and the front side door inside handle cable from the water deflector, while removing the deflector from the vehicle.

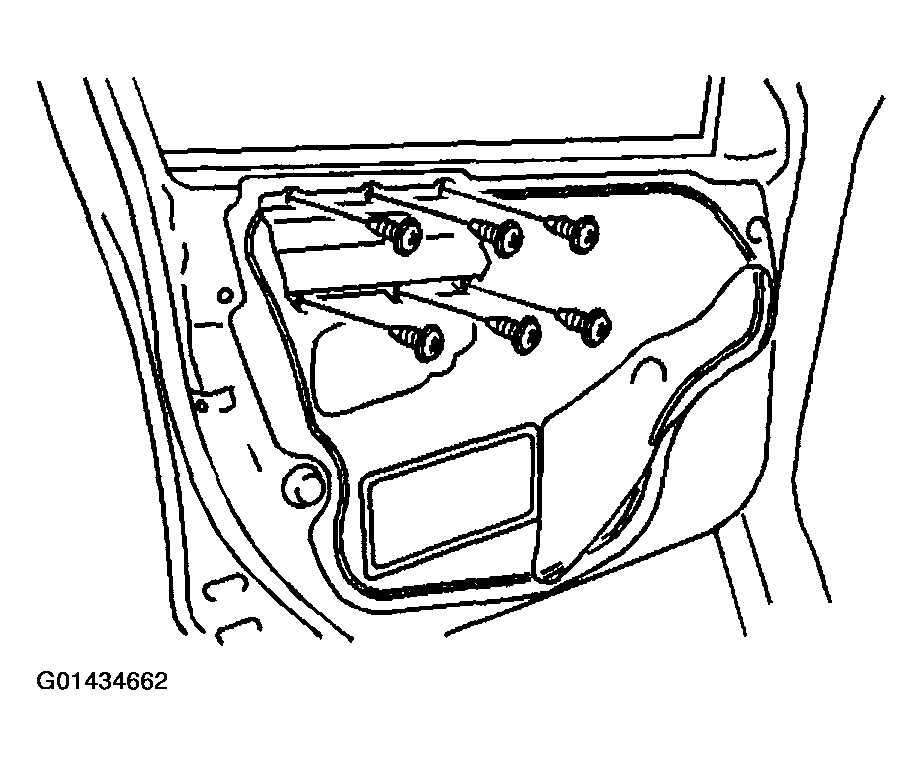

    Fig 1: Removing Trim Bracket Screws
    G01434662Courtesy of GENERAL MOTORS CORP.
