Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear side door inside handle. Refer to DOOR HANDLE REPLACEMENT - REAR INSIDE  .
  2. Remove the screw (4) and trim cover (3) from the rear side door trim panel (1).
  3. Remove the screw (2) that retains the door trim panel (1).
    Fig 1: Removing Screw And Trim Cover From Rear Side Door Trim Panel
    G01434656Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear side door window regulator handle by using a cloth to pull off the snap ring, if equipped.
  5. Using a taped flat bladed tool, gently pry the rear side door window switch bezel from the rear side door trim, if equipped.
  6. Disconnect the rear side door window switch electrical connector, if equipped.
  7. Remove the rear side door window switch bezel from the vehicle, if equipped.
    Fig 2: Pulling Off Snap Ring - Rear Side Door Window Regulator Handle
    G01434657Courtesy of GENERAL MOTORS CORP.
  8. Unclip and remove the rear side door trim from the door by disengaging the 7 plastic retainers.

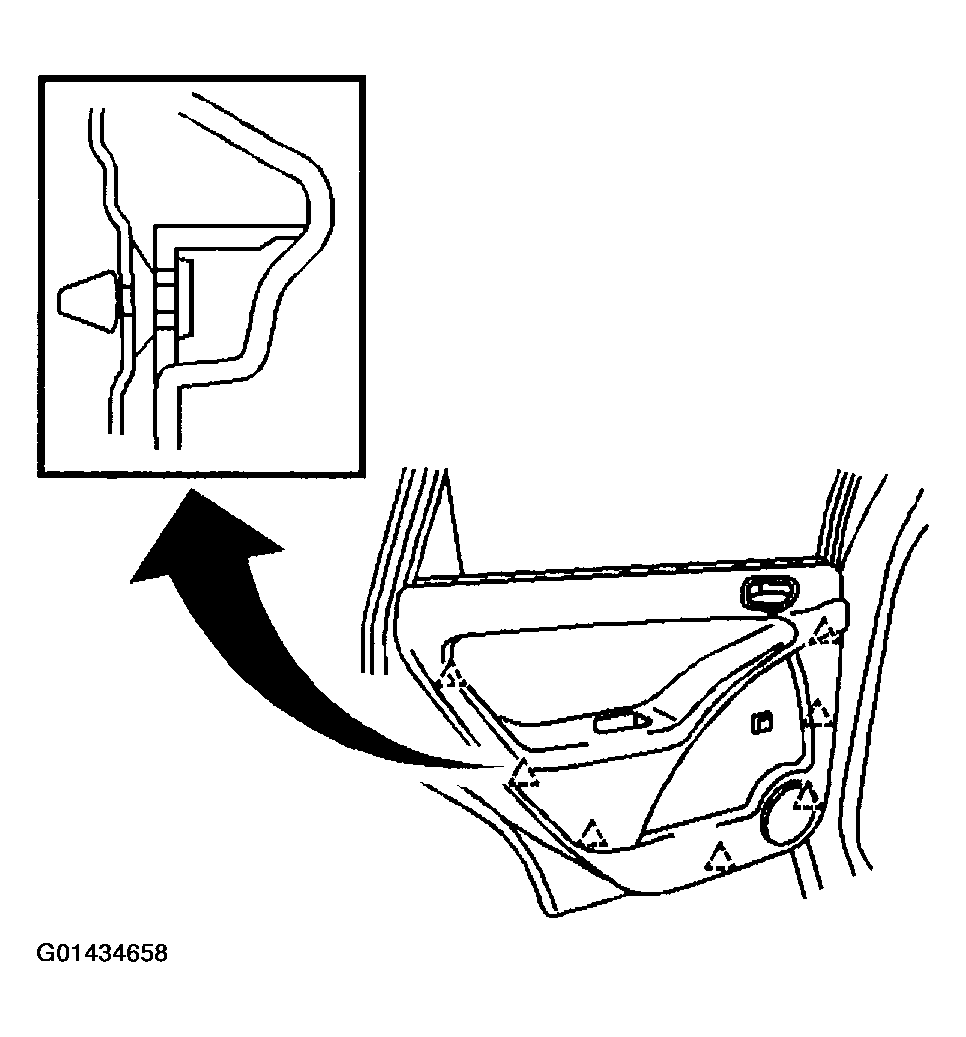

    Fig 3: Un-clipping And Removing Rear Side Door Trim From Door By Disengaging Plastic Retainers
    G01434658Courtesy of GENERAL MOTORS CORP.
